HP Compaq Mini 110 User Manual
5
of 2
of 2 ratings
155 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

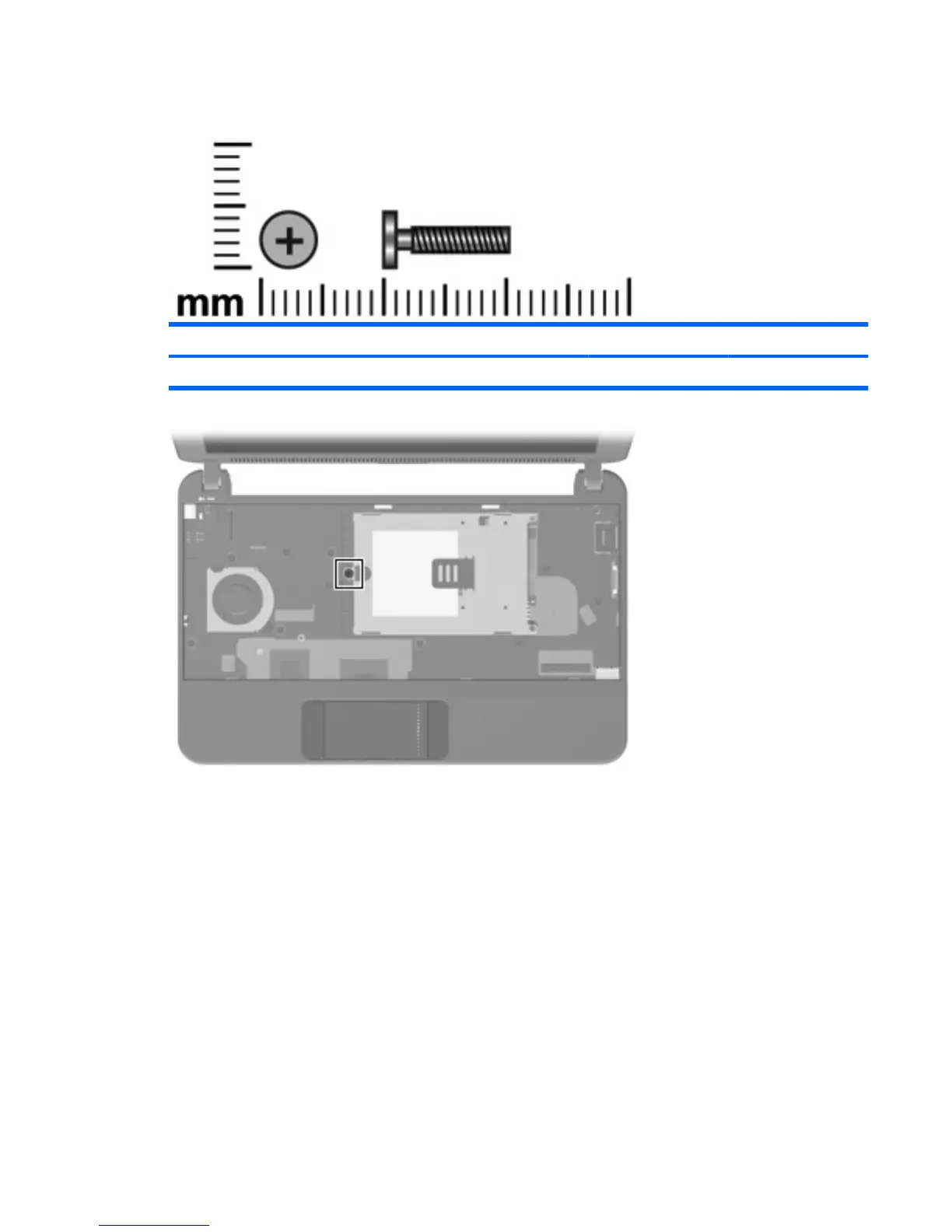

Phillips PM2.5×10.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
1
10.0 mm
2.5 mm
4.0 mm
Where used
:
One captive screw, with a C-clip, that secure
s the hard drive or s
olid-state drive
bracket
to the system board
Phillips PM2.5×10.0
captive screw
107
116
118
Table of Contents
Default Chapter
3
Revision History
3
Table of Contents
7
1 Product Description
11
2 External Component Identification
15
Top Components
15
Touchpad
15
Light
16
Keys
17
Front Components
19
Right-Side Components
21
Left-Side Components
22
Display Components
23
Bottom Components
24
Wireless Antennas
25
3 Illustrated Parts Catalog
26
Service Tag
26
Device Major Components
27
Display Assembly Components
35
Mass Storage Devices
37
Miscellaneous Parts
38
Sequential Part Number Listing
39
4 Removal and Replacement Procedures
47
Preliminary Replacement Requirements
47
Tools Required
47
Service Considerations
47
Cables and Connectors
47
Plastic Parts
47
Drive Handling
48
Grounding Guidelines
49
Electrostatic Discharge Damage
49
Packaging and Transporting Guidelines
50
Workstation Guidelines
50
Equipment Guidelines
51
Component Replacement Procedures
52
Service Tag
52
Device Feet
53
Battery
54
Sim
55
Memory Module
56
Keyboard
58
RTC Battery
63
Mass Storage Devices
64
Hard Drive
65
Solid-State Drive
65
Top Cover
67
WLAN Module
70
WWAN Module
72
Usb/Audio Board
74
Power/Battery Pass-Through Board
76
Fan
78
Heat Sink Assembly
80
System Board
82
Display Assembly
85
5 Setup Utility
93
Starting the Setup Utility
93
Using the Setup Utility
93
Changing the Language of the Setup Utility
93
Navigating and Selecting in the Setup Utility
93
Displaying System Information
94
Restoring Default Settings in the Setup Utility
94
Exiting the Setup Utility
94
Setup Utility Menus
95
Main Menu
95
Security Menu
95
System Configuration Menu
95
Diagnostics Menu
96
6 Specifications
97
Device Specifications
97
10.1-Inch, Antiglare Display Specifications
98
10.1-Inch, WSVGA, Antiglare Display Specifications
99
Hard Drive Specifications
100
Solid-State Drive Specifications
101
System DMA Specifications
102
System Interrupt Specifications
103
System I/O Address Specifications
104
System Memory Map Specifications
106
7 Screw Listing
107
Phillips PM1.5×1.0 Screw
107
Phillips PM2.0×3.0 Screw
109
Phillips PM2.0×3.0 Captive Screw
111
Phillips PM2.0×4.0 Screw
112
Phillips PM2.0×5.0 Screw
113
Phillips PM2.5×5.0 Screw
114
Phillips PM2.5×7.0 Screw
116
Phillips PM2.5×10.0 Captive Screw
117
Phillips PM3.0×4.0 Screw
118
8 Backup and Recovery
119
Mobile MI Backup and Recovery
120
Backing up Your Information
120
When to Back up
120
Restoring Your Information
120
Restoring Using a Windows Computer
121
Using HP MI Restore Image Creator
121
Using System Restore
121
Restoring Using a Linux Computer
122
Windows 7 Backup and Recovery
124
Backing up and Recovering Using Roxio Backontrack
124
Creating a Copy of the Hard Drive
124
Downloading and Extracting the Disaster Recovery Utility
125
Performing a Recovery
125
Using the Disaster Recovery Utility
125
Restoring Your Hard Drive Image
126
Using the Instant Restore Utility
126
Using the Instant Restore Utility When the Operating System Is Functioning
126
Using the Instant Restore Utility When the Operating System Is Not Functioning
127
Using Windows Backup and Restore
127
Creating a System Restore Point
127
Using System Restore Points
127
When to Create Restore Points
127
Restoring to a Previous Date and Time
128
Backing up and Recovering Using HP Recovery Manager
128
Backing up Your Information
128
Creating a Set of Recovery Discs
129
Performing a Recovery
130
Recovering Using the Partition on the Hard Drive (Select Models Only)
130
Recovering Using the Recovery Discs
130
Windows Vista Backup and Recovery
132
Backing up Your Information
132
Performing a Recovery
133
Using the Windows Recovery Tools
134
Using a Windows Vista Operating System DVD (Purchased Separately)
135
Using F11
135
Windows XP Backup and Recovery
136
Backing up Your Information
136
Performing a Recovery
137
Recovering the Operating System and Programs
137
Recovering Your Information
137
9 Connector Pin Assignments
138
Audio-In (Microphone)
138
Audio-Out (Headphone)
139
External Monitor
140
Network)
141
Universal Serial Bus
142
10 Power Cord Set Requirements
143
Requirements for All Countries and Regions
143
Requirements for Specific Countries and Regions
144
11 Recycling
145
Battery
145
Display
145
Index
151
5
Based on 2 ratings
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP Compaq Mini 110 and is the answer not in the manual?
Ask a question
HP Compaq Mini 110 Specifications
General
Brand
HP
Model
Compaq Mini 110
Category
Laptop
Language
English
