6.

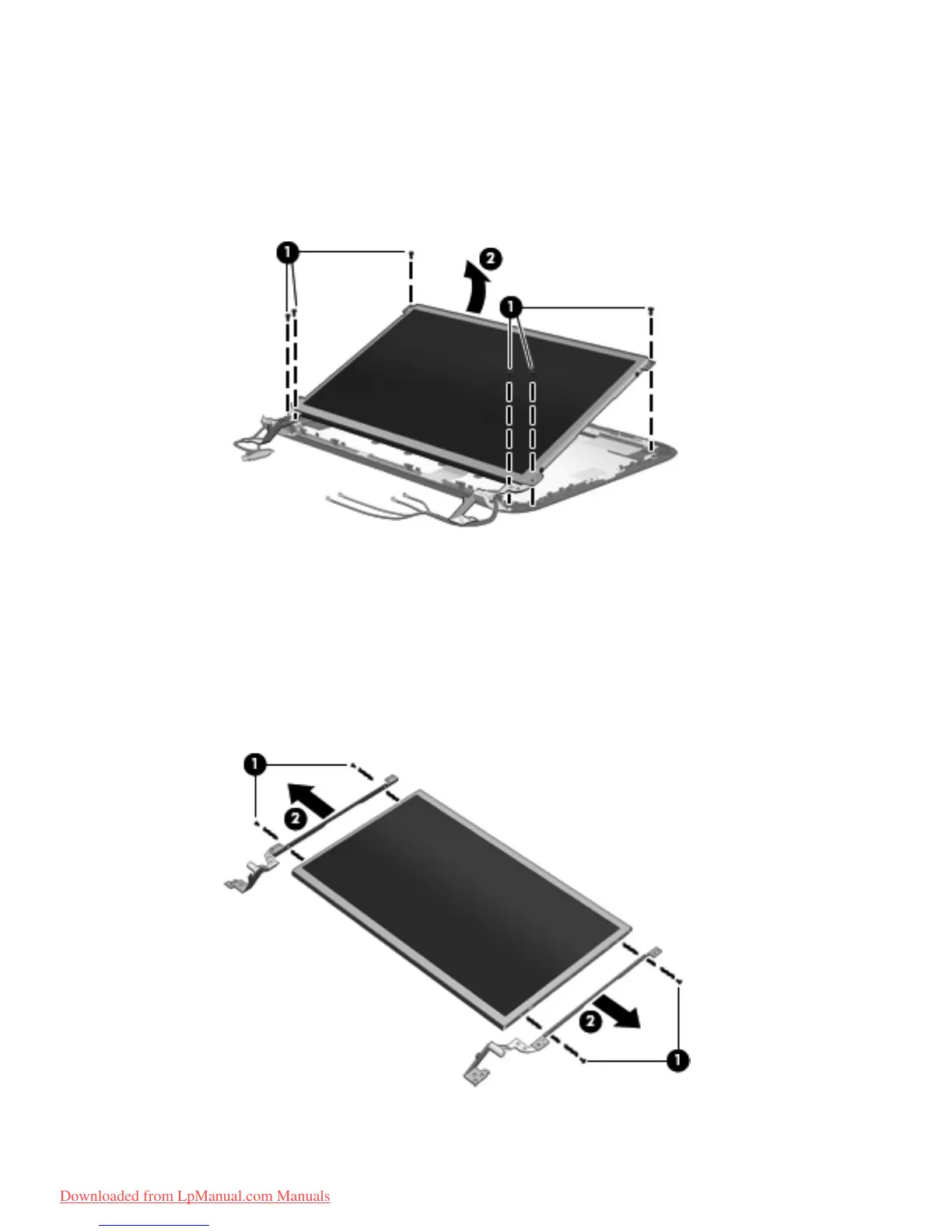

If it is necessary to replace the display panel:
a. Remove the six Phillips PM2.0×4.6 screws (1) that secure the display panel to the
display enclosure.
b. Lift the top edge of the display panel (2) and swing it up and forward until it rests at
an angle.
c. Remove the display panel. The display panel is available using spare part number
658511-001.
7. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.0×3.7 screws (1) that secure the display hinges to the
display panel.
b. Remove the display hinges (2). The display hinges include the display hinges and brackets
and are available using spare part number 650711-001.
84 Chapter 4 Removal and replacement procedures
