HP DL385 - ProLiant - G5 User Manual

Operations 28
1.

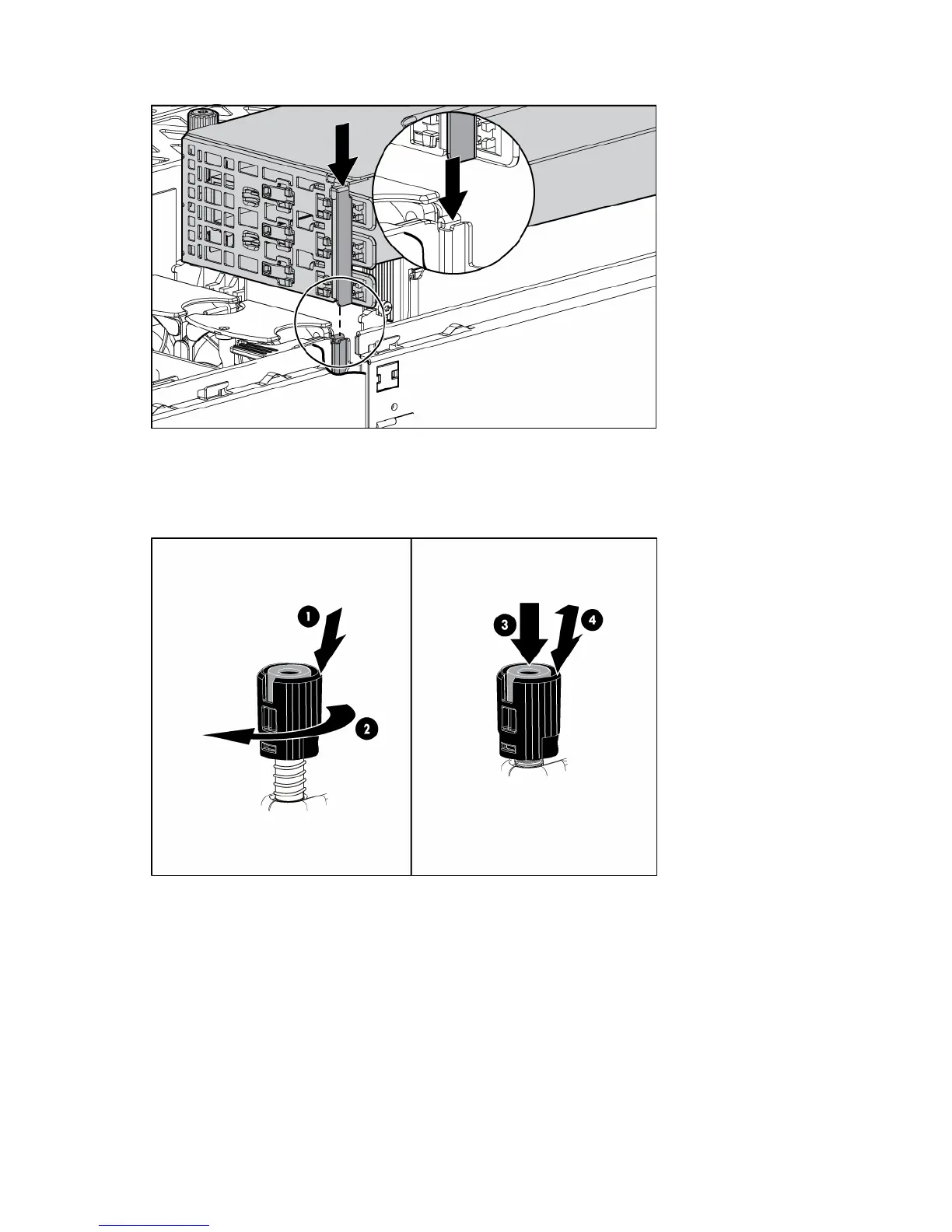

Align the PCI riser cage with the chassis and slide it into place.
2. Tighten the thumbscrews to secure the PCI riser cage:
a. Press down the black knob while turning clockwise, until fully tightened.
b. While holding the black knob and pressing down, press and release the blue button to lower the
black knob to the locked position.
3. Connect any required internal cables to the expansion board. Refer to the documentation that ships
with the expansion board.
4. Install the access panel (on page 25).
5. Install the server into the rack.
6. Connect any required external cables to the expansion board. Refer to the documentation that ships
with the expansion board.
7. Power up the server (on page 23).

HP DL385 - ProLiant - G5 Specifications

General

Processor	AMD Opteron
Processor Socket	Socket F (1207)
Maximum Processors	2
Memory Slots	16
Maximum Memory	128 GB
Form Factor	2U Rack
Product Line	ProLiant
Model	DL385 G5
Hard Drive Interface	SAS/SATA
Memory Type	DDR2
Storage	SAS/SATA
Drive Bays	8
RAID Levels	RAID 0, 1, 5
Network	Embedded NC373i Multifunction Gigabit Network Adapter
Network Controller	HP NC373i
Expansion Slots	6
Power Supply	Hot-plug redundant power supplies
Operating System Support	Windows Server, Linux, VMware
Server Type	Rack
