4 Removal and replacement
procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and
precautions” sections in the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of
monitors. Prepare the area for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
• Press fixture
• Working table
• Screwdriver
• Knife
• Gloves
• Cleaning cloth
• ESD protection

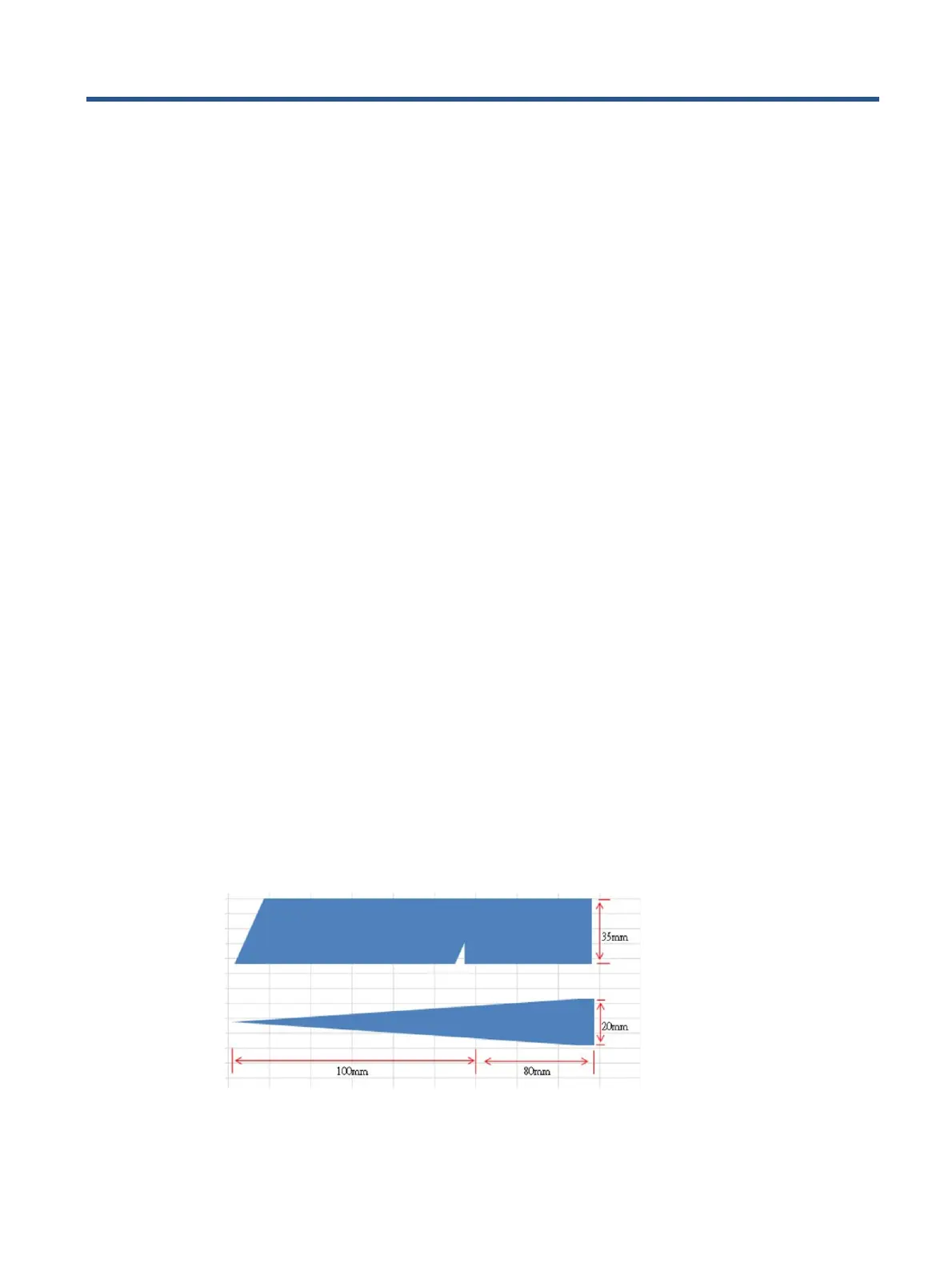

• Scraper bar in the following dimensions:

HP E22 G5 Specifications

General

Color depth	8 bit
Color gamut	99 %
Pixel pitch	0.25 x 0.25 mm
Screen shape	Flat
Pixel density	102 ppi
Backlight type	Edge LED
Display diagonal	21.5 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 86 kHz
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	54.62 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
DisplayPort version	1.2
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	140 mm
Package width	571 mm
Package height	363 mm
Package weight	6800 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Height adjustment	150 mm
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	ENG, ESP, FRE, ITA, JPN, POR, RUS
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	211 mm
Width (with stand)	488.7 mm
Height (with stand)	492.95 mm
Weight (with stand)	4900 g
Depth (without stand)	46 mm
Height (without stand)	293.9 mm
Weight (without stand)	2900 g
