HP E24 G5 User Manual

15

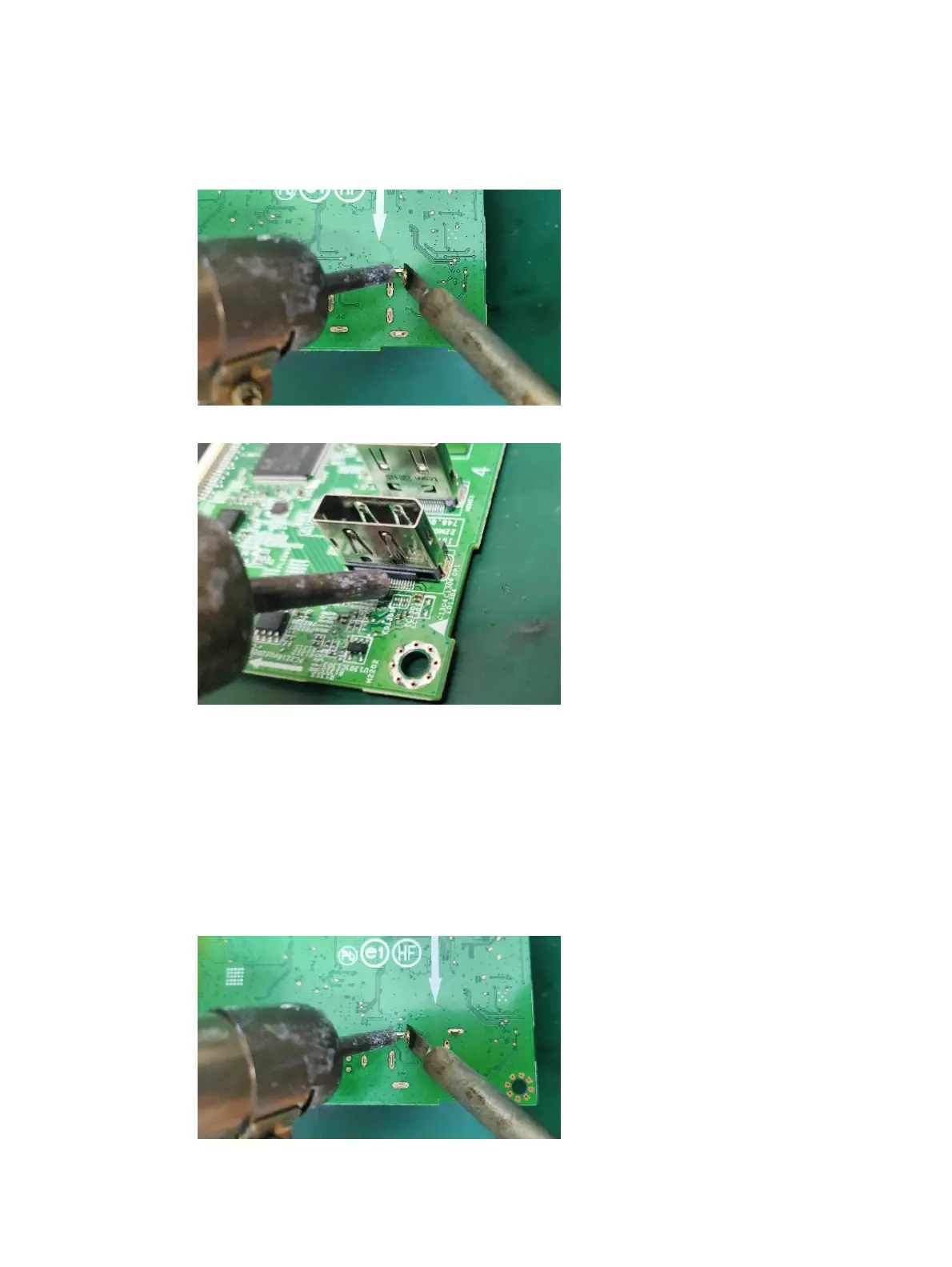

DP connector DP1
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins
3) Lift the DP connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
HDMI connector HDMI1
Repair the HDMI connector:
1) Use a soldering iron to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.

HP E24 G5 Specifications

General

Color depth	8 bit
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 86 kHz
sRGB coverage (typical)	99 %
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Pivot angle	-90 - 90 °
Cable lock slot	-
Panel mounting interface	100 x 100 mm
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	140 mm
Package width	621 mm
Package height	400 mm
Package weight	7600 g
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50 - 60 Hz
Power consumption (max)	53 W
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
Cables included	DisplayPort, HDMI, USB Type-A to USB Type-B

Weight and Dimensions

Depth (with stand)	211 mm
Width (with stand)	539.4 mm
Height (with stand)	507 mm
Weight (with stand)	5400 g
Depth (without stand)	47 mm
Height (without stand)	322.6 mm
