4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
USB TYPE-C connector CN101

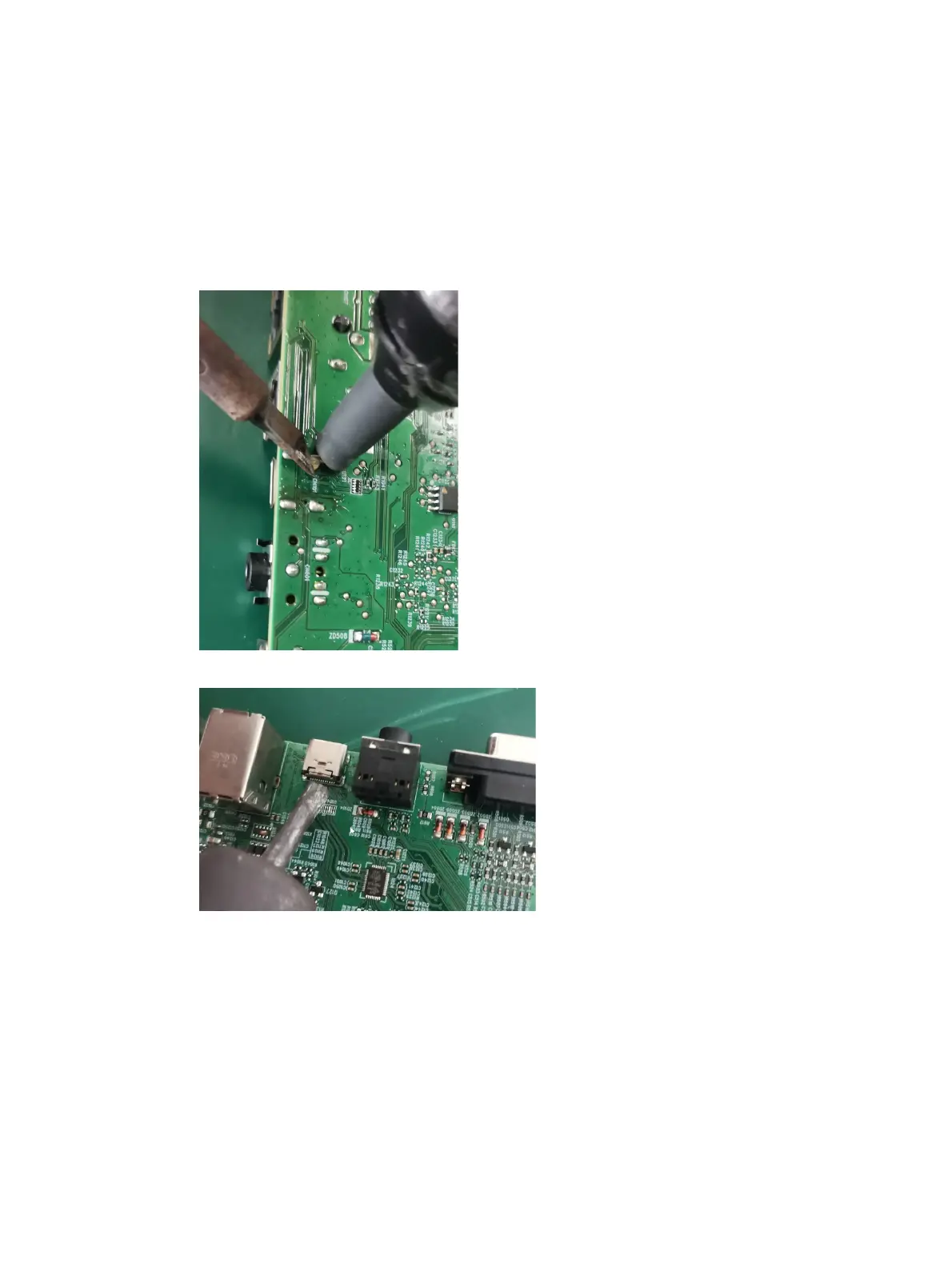

Repair the USB-C connector:
1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN504 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
D-SUB connector CN501
Repair the D-Sub port connector:
1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
