4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions” sections in
the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare the area
for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
 Press fixture
 Working table
 Screwdriver
 Knife
 Gloves
 Cleaning cloth
 ESD protection

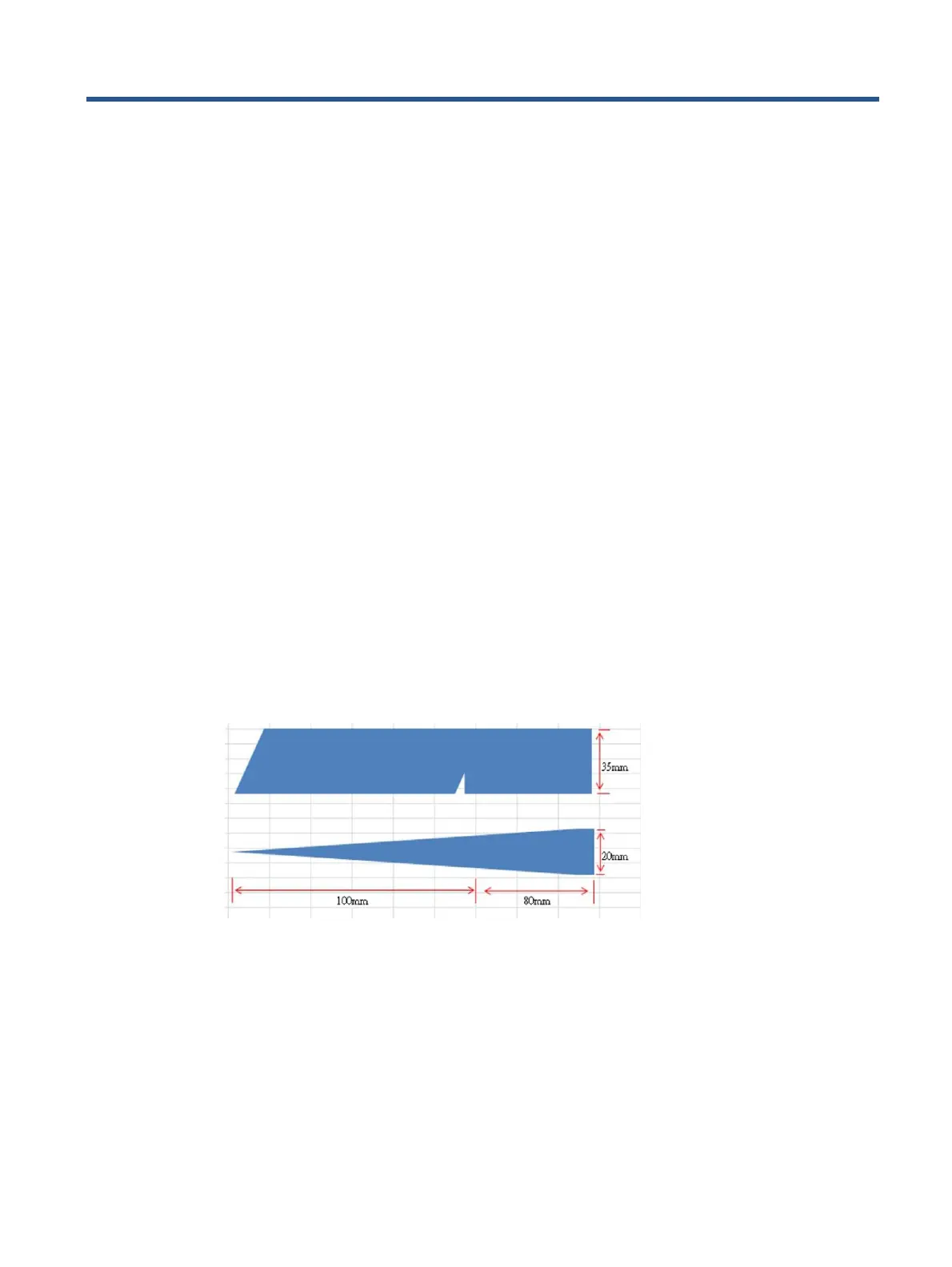

 Scraper bar in the following dimensions:
Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
1) Pull the release button to remove Stand Base From Display Head

HP E24u G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Contrast ratio (dynamic)	5000000:1
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
Power consumption (max)	131 W
Power consumption (standby)	0.5 W
Power consumption (typical)	22 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	223 mm
Package width	611 mm
Package height	392 mm
Package weight	8890 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Height adjustment	150 mm
Panel mounting interface	100 x 100 mm
Cables included	AC, USB Type-C
Product color	Black, Silver
Market positioning	Business
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	207 mm
Width (with stand)	539.4 mm
Height (with stand)	494.9 mm
Weight (with stand)	6300 g
Depth (without stand)	47 mm
Height (without stand)	323.3 mm
