3) Pin solder with soldering iron and absorber.
NA
4) Lift the connector up and away from the PCB.
No
Connector repair
This procedure includes HDMI, Display Port, Mini Display Port, USB-C and USB-A connectors.

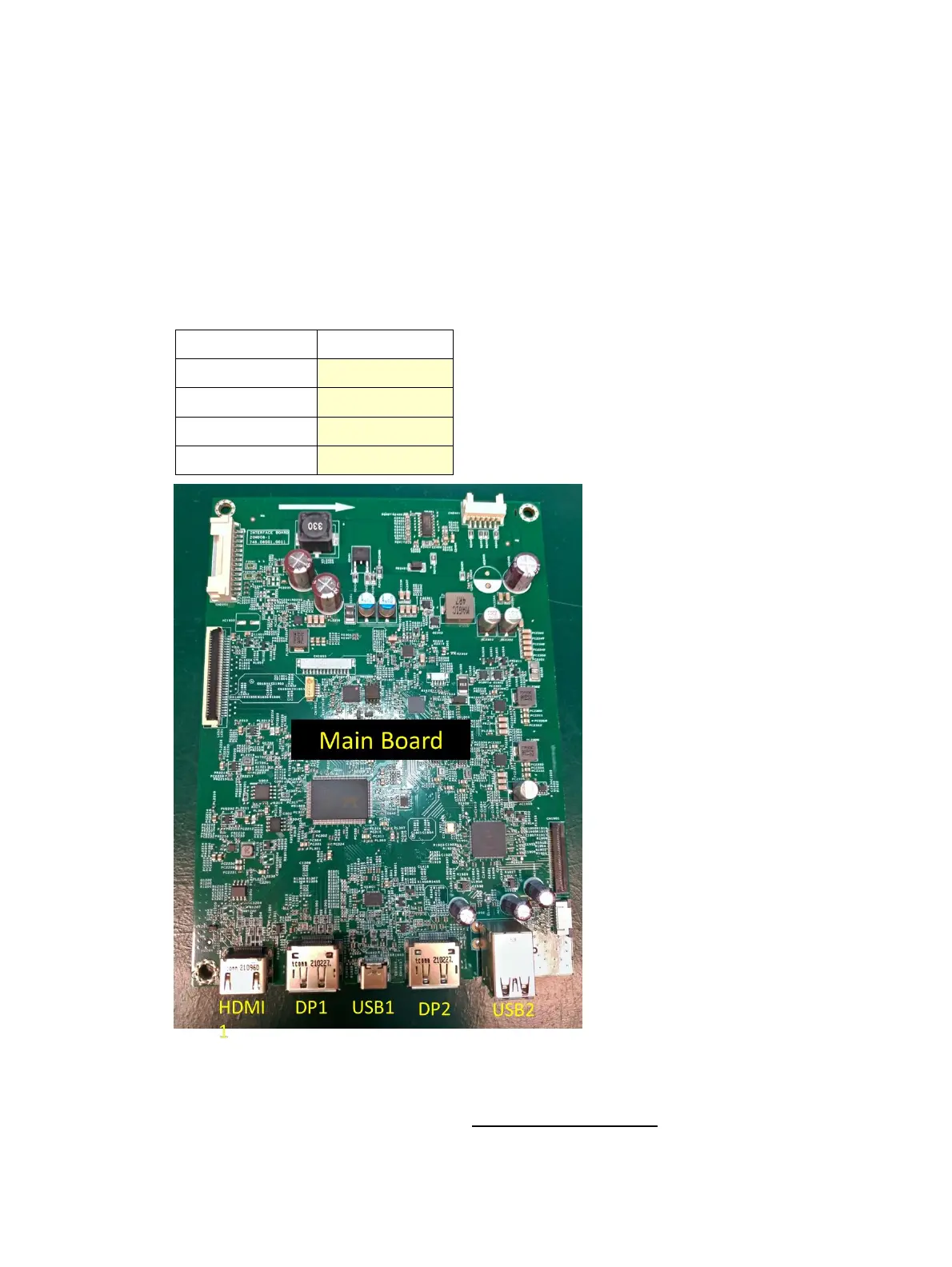

The connectors are on the main board (board part number 7ZB.A3B01.0010).
The connector identifiers are as follows:
Connector
Location
HDMI
HDMI1
DP
DP1,DP2
USB-C
USB1
USB-A
USB2
Before repairing connectors, follow these steps:
Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
