HP ELITE x2 1012 G1 Maintenance And Service Guide

Rear webcam
Description Spare part number
Rear webcam 844883-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement.
Before removing the display panel, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the following components:
a. Keyboard (select products only) (see Keyboard (select products only) on page 29)
b. Back cover (see Back cover on page 30)
c. Display panel (see Display panel on page 31)
d. Touch controller board (see Touch controller board on page 33)
e. WLAN module (see WLAN module on page 34)
f. WWAN module (select products only) (see WWAN module (select products only) on page 36)
g. Solid-state drive (see Solid-state drive on page 38)
h. Battery (see Battery on page 42)
Remove the rear webcam:
▲

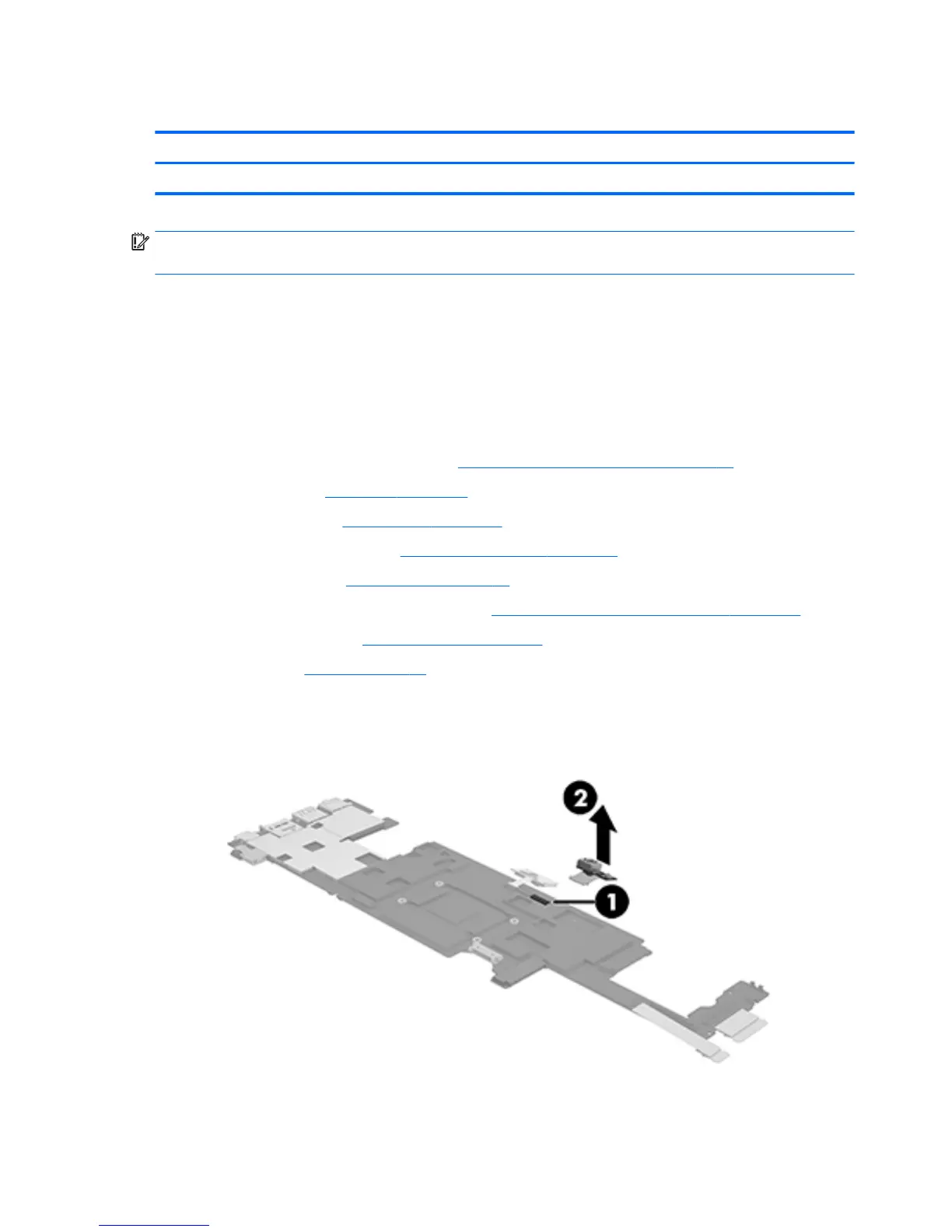

Disconnect the cable from the system board (1), and then lift the rear webcam to remove it (2).
Reverse this procedure to replace the rear webcam.
46 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts

HP ELITE x2 1012 G1 Specifications

General

Bus type	OPI
Stepping	D1
Tjunction	100 °C
Processor code	SR2EN
Processor cache	4 MB
Processor cores	2
Processor family	Intel® Core™ m3
Processor series	Intel Core m3-6Y series
Processor socket	BGA 1515
Processor threads	4
Processor codename	Skylake
Processor frequency	0.9 GHz
Processor cache type	Smart Cache
Processor manufacturer	Intel
Processor package size	20 X 16.5 mm
Conflict-Free processor	Yes
PCI Express slots version	3.0
Processor boost frequency	2.2 GHz
Processor operating modes	32-bit, 64-bit
ECC supported by processor	No
Graphics & IMC lithography	14 nm
PCI Express configurations	1x2+2x1, 2x2, 1x4, 4x1
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Design Power (TDP)	4.5 W
Maximum number of PCI Express lanes	10
Device type	Tablet PC
Form factor	Slate
Product color	Silver
Internal memory	4 GB
Memory clock speed	1866 MHz
Internal memory type	LPDDR3-SDRAM
Storage media	SSD
Compatible memory cards	MicroSD (TransFlash)
Internal storage capacity	180 GB
Display diagonal	12 \
Touch technology	Multi-touch
Display resolution	1920 x 1280 pixels
Graphics card	HD Graphics 515
On-board graphics card ID	0x191E
On-board graphics card model	Intel® HD Graphics 515
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	850 MHz
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	2 MP
Country of origin	China
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Battery capacity	2800 mAh
Battery life (max)	10 h
AC adapter power	45 W
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Sustainability certificates	ENERGY STAR
Platform	Windows
Operating system architecture	64-bit
Processor ARK ID	88198
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	213.5 mm
Width	300 mm
Height	8.05 mm
Weight	820 g
