HP EliteBook 850 G3 User Manual

●

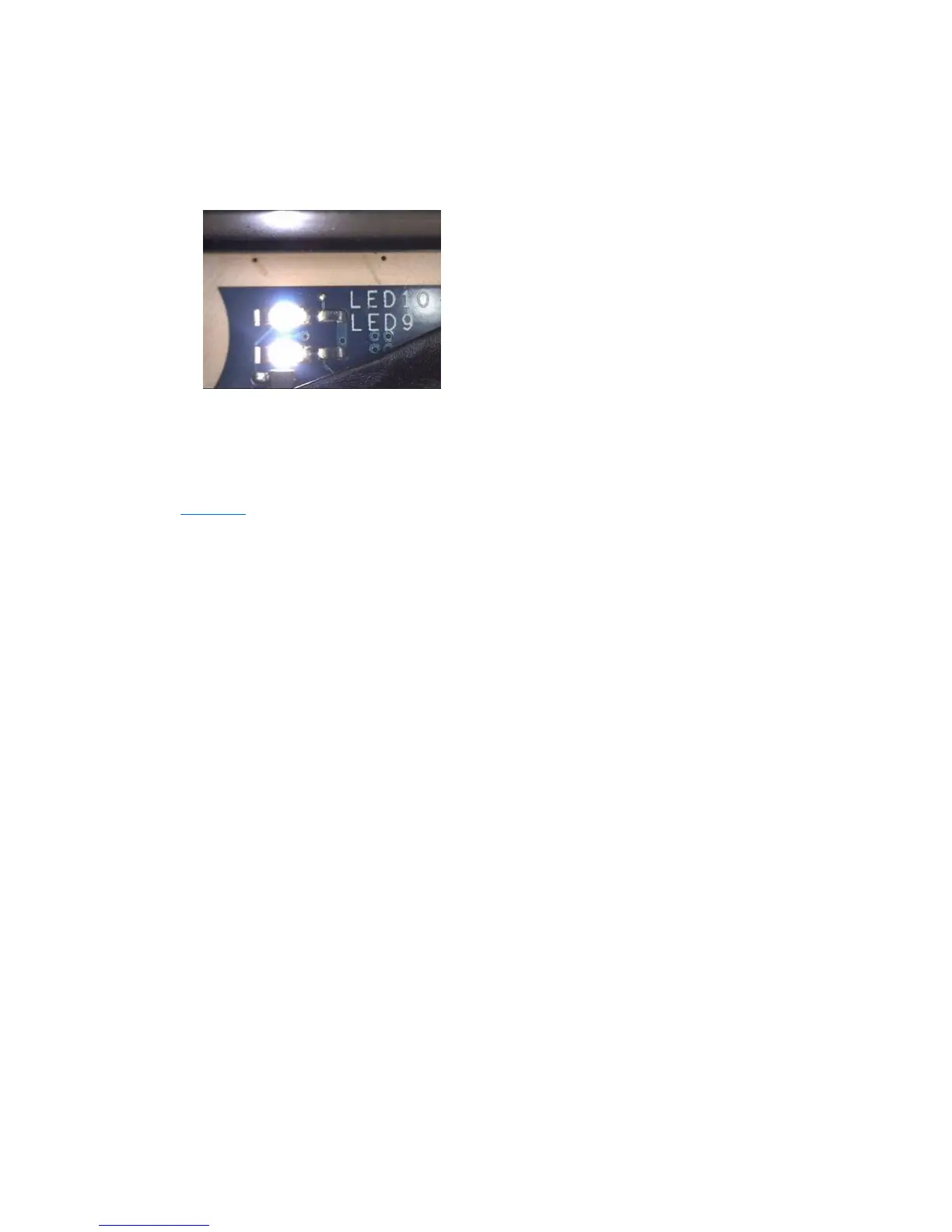

Example: System board needs replacement. When (1) system 3.3V exists, but one power rail is bad then
(2) power good is low (0V), and troubleshooting lights will turn on.
After you press the system power button, troubleshooting lights will turn on for 5 seconds and turn
o. The system external lights will not light up. Follow general troubleshooting steps (i.e., remove
recently added hardware, test with minimum conguration, etc.) prior to replacing the system board.
Resolve the issue
8. Hard reset
A hard reset (or forced reset) erases all information in the computer's memory and may restore functionality.
Resetting the computer forces the system to clear and reestablish the connections between the BIOS and the
hardware.
Performing a hard reset might x the following common conditions:
●
Windows stops responding.
●
Computer stops before Windows loads, indicated by incomplete boot-up, blinking cursor on a black
background, and errors relating to operating system not found or a missing drive.
●
Display suddenly goes blank and stays blank.
●
Software freezes.
●
Keyboard stops responding.
●
The computer does not exit Sleep or Suspend state.
●
An external device stops responding. Turn o the power to that device in addition to performing the
steps in this document.
Before performing a hard reset, you must disconnect or remove all peripheral devices. You should start and
test the computer by itself, and if the problem is not resolved, reconnect one peripheral device at a time. To
resolve the startup or operational problem, run HP Support Assistant, or manually install all updated drivers
from Microsoft and HP.
Before beginning, turn the computer over and look for a battery compartment door (service door). For 2015
platforms, the battery is considered removable but not accessible. See the battery section for how to remove/
unplug the battery.
To perform a hard reset on a computer with a sealed or non removable battery, use the following steps:
1. Turn o the computer.
2. Remove the computer from any port replicator or docking station.
3. Disconnect all external connected peripheral devices such as USB storage devices, external displays, and
printers.
General troubleshooting steps 95

HP EliteBook 850 G3 Specifications

General

Form factor	Clamshell
Product type	Ultrabook
Product color	Silver
Country of origin	China
Bus type	OPI
Stepping	D1
Tjunction	100 °C
Processor cache	4 MB
Processor cores	2
Processor model	i7-6500U
System bus rate	4 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-6500 Mobile series
Processor socket	LGA 1356 (Socket B2)
Processor threads	4
Processor codename	Skylake
Configurable TDP-up	25 W
Processor frequency	2.5 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.1 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x4, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Numeric keypad	Yes
Pointing device	Touchpad
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 7 Professional
Memory slots	2x SO-DIMM
Internal memory	8 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	SATA
Storage media	SSD
Total storage capacity	512 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Display diagonal	15.6 \
Native aspect ratio	16:9
On-board graphics card ID	1916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1050 MHz
Battery capacity	46 Wh
Number of battery cells	3
AC adapter power	65 W
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Sustainability certificates	ENERGY STAR
Processor code	SR2EZ
Processor ARK ID	88194
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Intel segment tagging	Enterprise
HP segment	Business
HP Software provided	HP BIOSphere with HP Sure Start, HP Client Security, HP Image Assistant, HP SoftPaq Download Manager, HP Connection Manager, HP Noise Reduction Software, HP Clear Sound Amp

Weight and Dimensions

Depth	257.7 mm
Width	383.3 mm
Height	19.4 mm
Weight	1880 g
