3. Remove the front bezel (Front bezel on page 19).
4. Disconnect the power and data cables from the rear of the drives in the drive cage.
5. Rotate the drive cage up (see Drive cage on page 29)

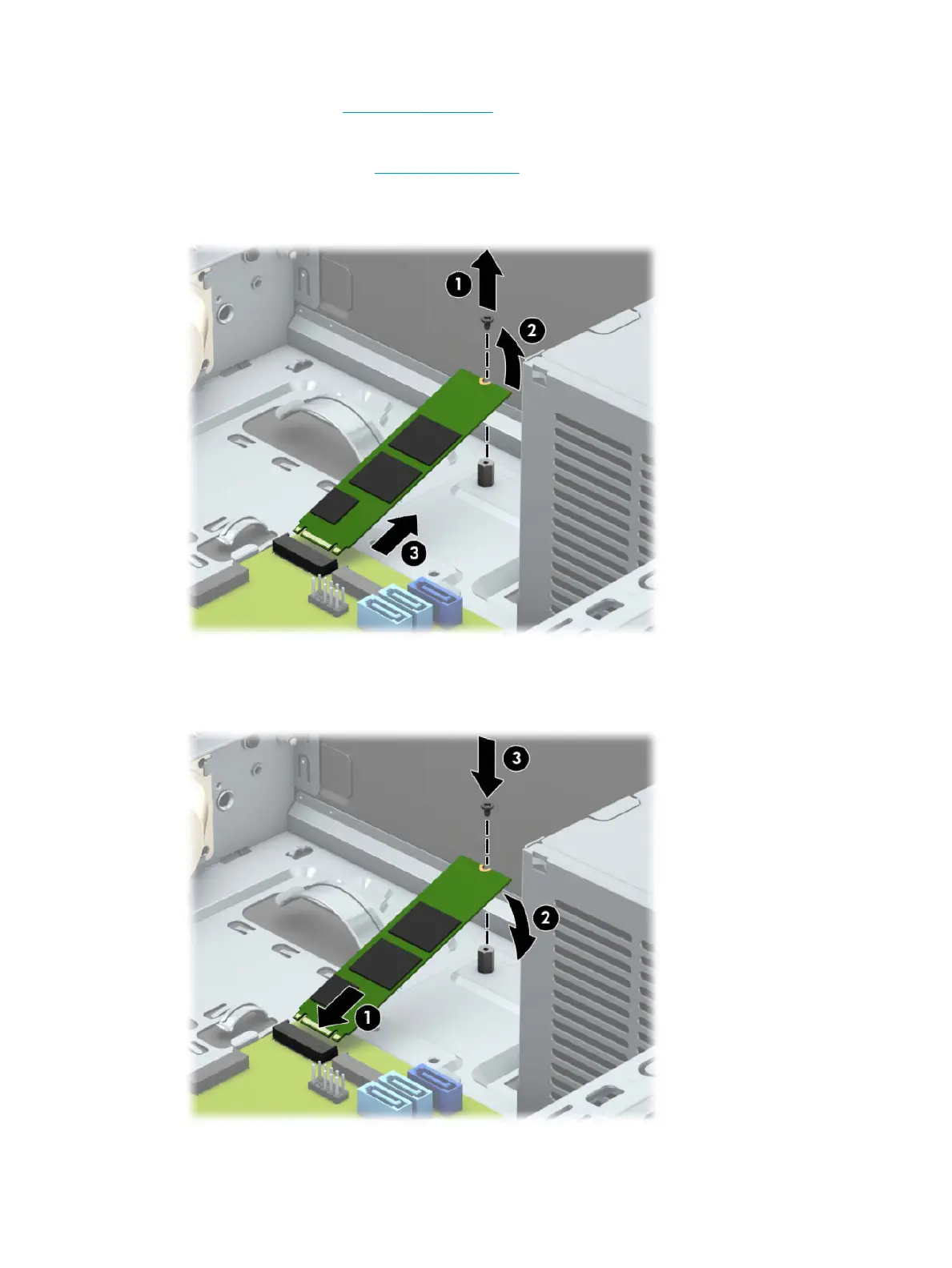

6. To remove an M.2 SSD card, remove the screw that secures the card (1), lift the end of the card up (2),
and then slide the card out of the system board connector (3).
7. To install an M.2 SSD card, slide the pins on the card into the system board connector while holding the
card at approximately a 30° angle (1). Press the other end of the card down (2), and then secure the card
with the screw (3).
46 Chapter 4 Removal and replacement procedures
