Component Description
(3) Audio-out (headphone) jack/Audio-in
(microphone) jack
Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television
audio. Also connects an optional headset microphone.
NOTE: When a device is connected to the jack, the device
speakers are disabled.
(4) eSATA/USB port Connects a high-performance eSATA component, such as an
eSATA external hard drive, or connects an optional USB
device.
(5) USB ports (2) Connect optional USB devices.
(6) HDMI port Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio
component.
(7) RJ-45 (network) jack Connects a network cable.
(8) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.

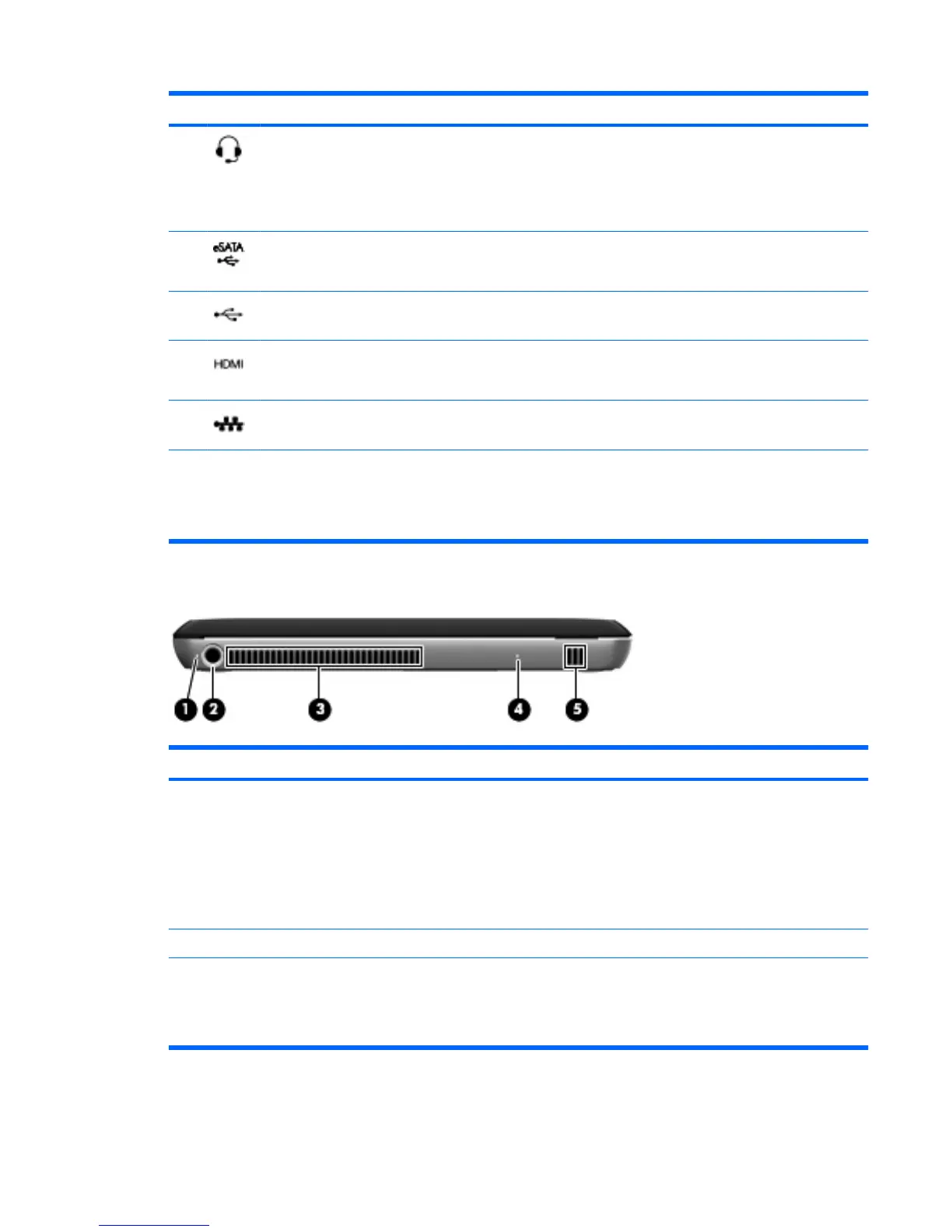

Left-side components
Component Description
(1) Battery light
●
Off: The computer is running on battery power.
●
Blinking amber: The battery has reached a low battery level,
a critical battery level, or there is a battery error.
●
Amber: A battery is charging.
●
White: The computer is connected to external power and the
battery is fully charged.
(2) Power connector Connects an AC adapter.
(3) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
Components 7
