HP M24fwa User Manual

19
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.

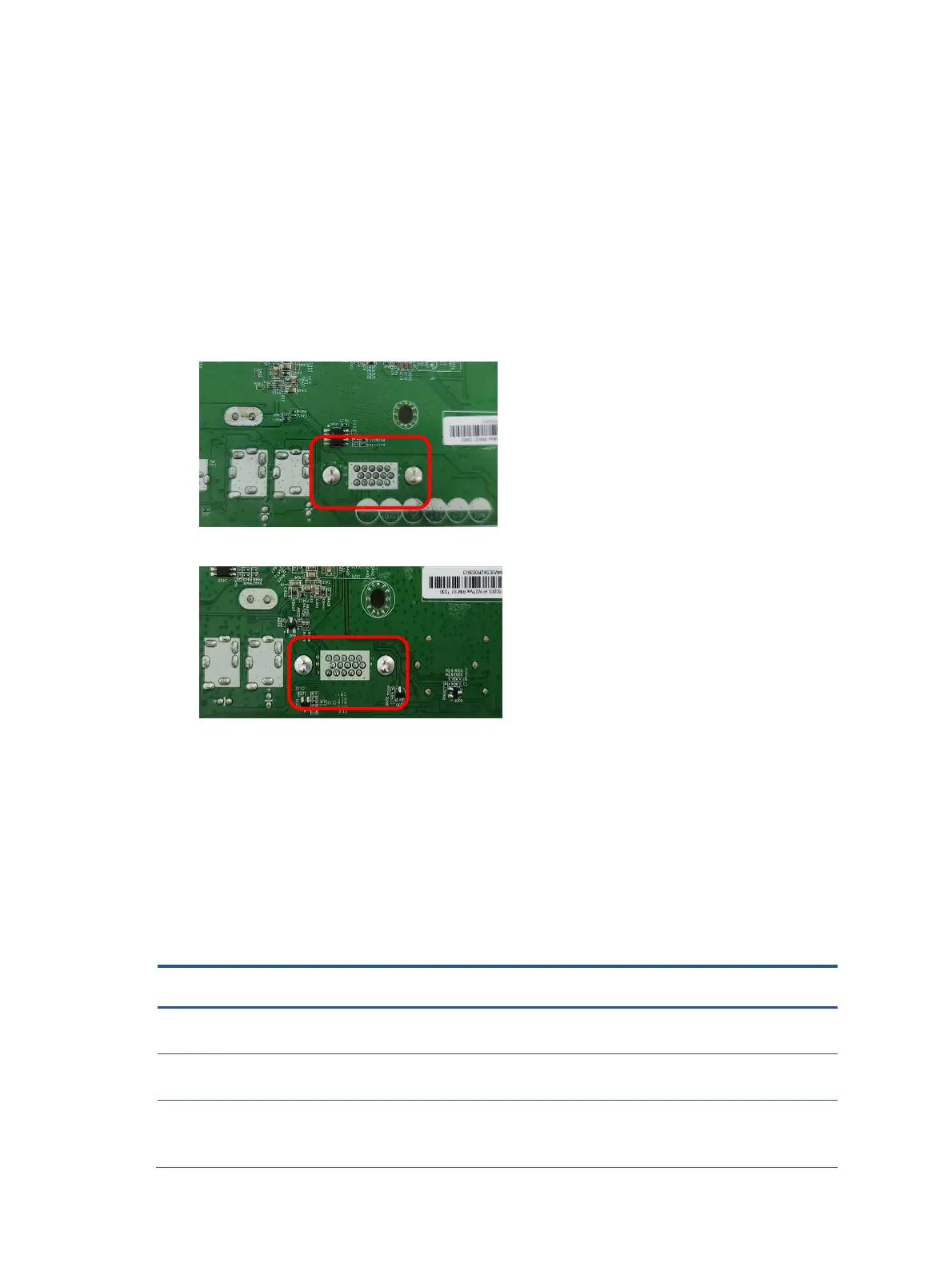

VGA connector P100
Repair the VGA connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on these pins.
M24fwa
M27fwa
3) Lift the P100 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
Function test
After repair, be sure to confirm that all functions are working.
Table 4-1: Function test
Test item Operating description Tool used
HDMI test Confirm whether image displays correctly
on the monitor.
Computer or DVD player
VGA test Confirm whether image displays correctly
on the monitor.
Computer or DVD player
Audio test Change volume and balance to confirm
whether volume is smooth and loud
enough.
Speaker

HP M24fwa Specifications

General

Color	ceramic white, white
Screen Type	lcd
Tiltable	yes
Touch Screen	no
Webcam	no
OS Compatibility	not applicable
Screen Size	23.8 inches
Panel Type	ips
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	75hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	5 milliseconds
Brightness	300 candela per square meter
Contrast Ratio	1000:1
Synchronization	freesync (amd adaptive sync), not applicable
Horizontal Scan Rate	86 kilohertz
HDR	no
Built-In Speakers	yes
HDMI Ports	1
USB Type B Ports	0
Display Port Inputs	0
Mini Display Port	0
VGA Ports	1
DVI	0
Thunderbolt Ports	0
Voice Assistant	not applicable
Height with Stand	12.42 inches
Width with Stand	21.09 inches
Depth without Stand	6.97 inches
Height without Stand	15.62 inches
Net Weight without Stand	5.5 pounds
