HP M27 User Manual

19
whether this is required by the Member State.

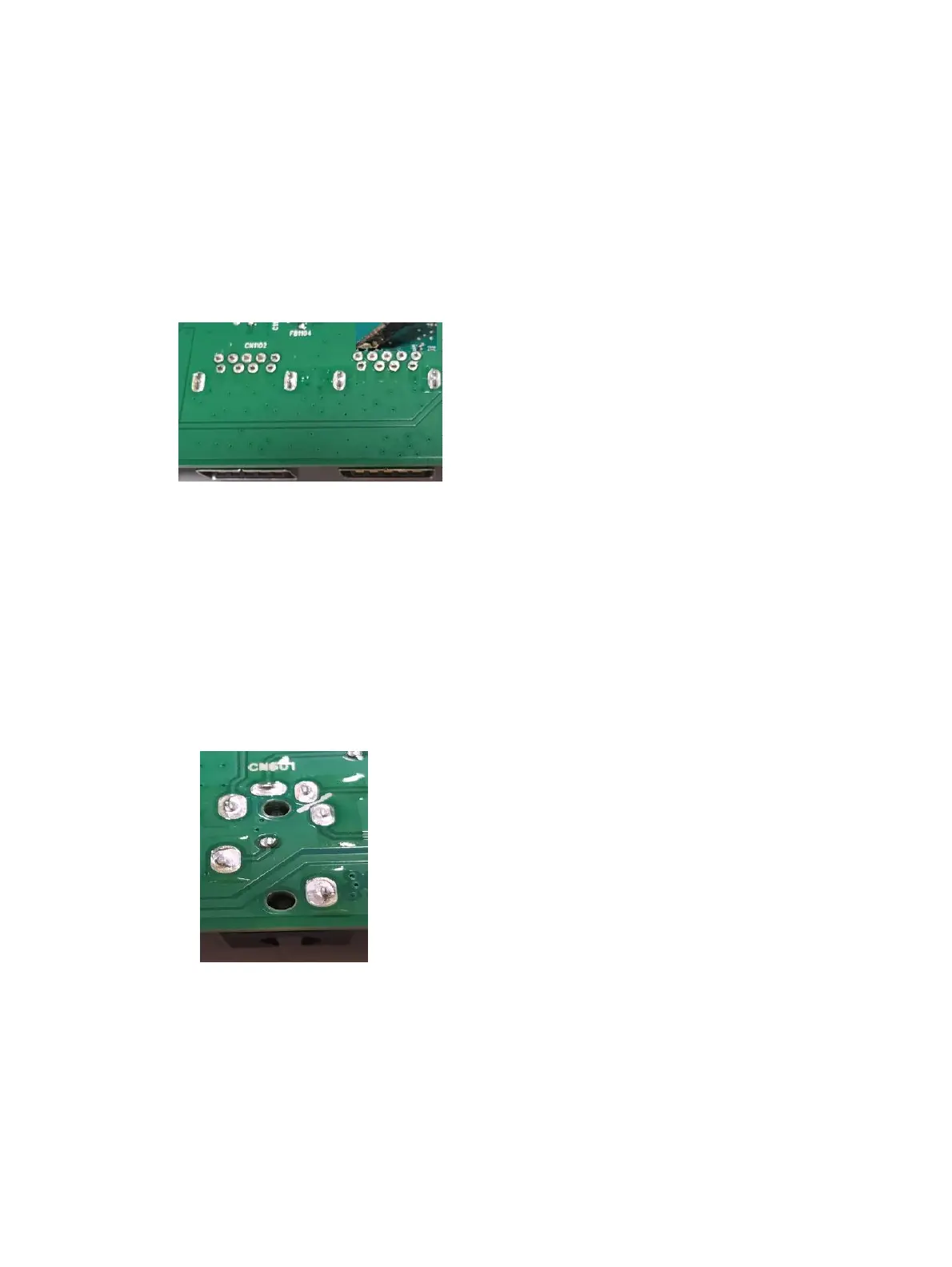

USB 3.0 TYPE A CN1101 CN1102
Repair the usb connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently push
down with the soldering iron once everything is molten to move the CN1101 out of the through holes.
2) Lift the CN1101 connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
PHONE JACK CN601
Repair the PHONE JACK connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN601 out of the through holes.
2) Lift the CN601 connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
HDMI connector CN501
Repair the HDMI connector:

HP M27 Specifications

General

Color gamut	99 %
Pixel pitch	0.3114 x 0.3114 mm
Screen shape	Flat
Pixel density	82 ppi
Display diagonal	27 \
Surface hardness	3H
Anti-glare screen	Yes
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display diagonal (metric)	68.58 cm
Digital vertical frequency	48 - 75 Hz
Digital horizontal frequency	30 - 85 kHz
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
DisplayPort version	1.2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	130 W
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Operating temperature (T-T)	5 - 35 °C
Package depth	211.4 mm
Package height	544 mm
Package weight	11300 g
Height adjustment	100 mm
Panel mounting interface	100 x 100 mm
Certification	Argentina S-Mark; BIS; CB; CCC; CE; CEL; CEL Grade 1; C-Tick; cTUVus; ENERGY STAR®; EPA; EUP Lot-5; EUP Lot-6; FCC; GS Mark; ICES; ISO 9241-307; KC/KCC; NOM; NOM (Mexico); RCM; UL/CSA-NTRL/ETL-NRTL Mark; VCCI; WEEE; EUP Lot-26; California Energy Commission (CEC); South Africa Energy; eStandby; Mexico LASE form; ICE; KES; PSE EAC; India BIS
Product color	Black, Silver
Country of origin	China
Market positioning	Home
Megapixel	5 MP
RMS rated power	4 W
Number of speakers	2
Sustainability certificates	ENERGY STAR
Depth	48.2 mm
Height	413 mm

Weight and Dimensions

Depth (with stand)	54.4 mm
Width (with stand)	61.2 mm
Height (with stand)	21.14 mm
Weight (with stand)	7300 g
Depth (without stand)	4.82 mm
Width (without stand)	612 mm
Height (without stand)	41.3 mm
