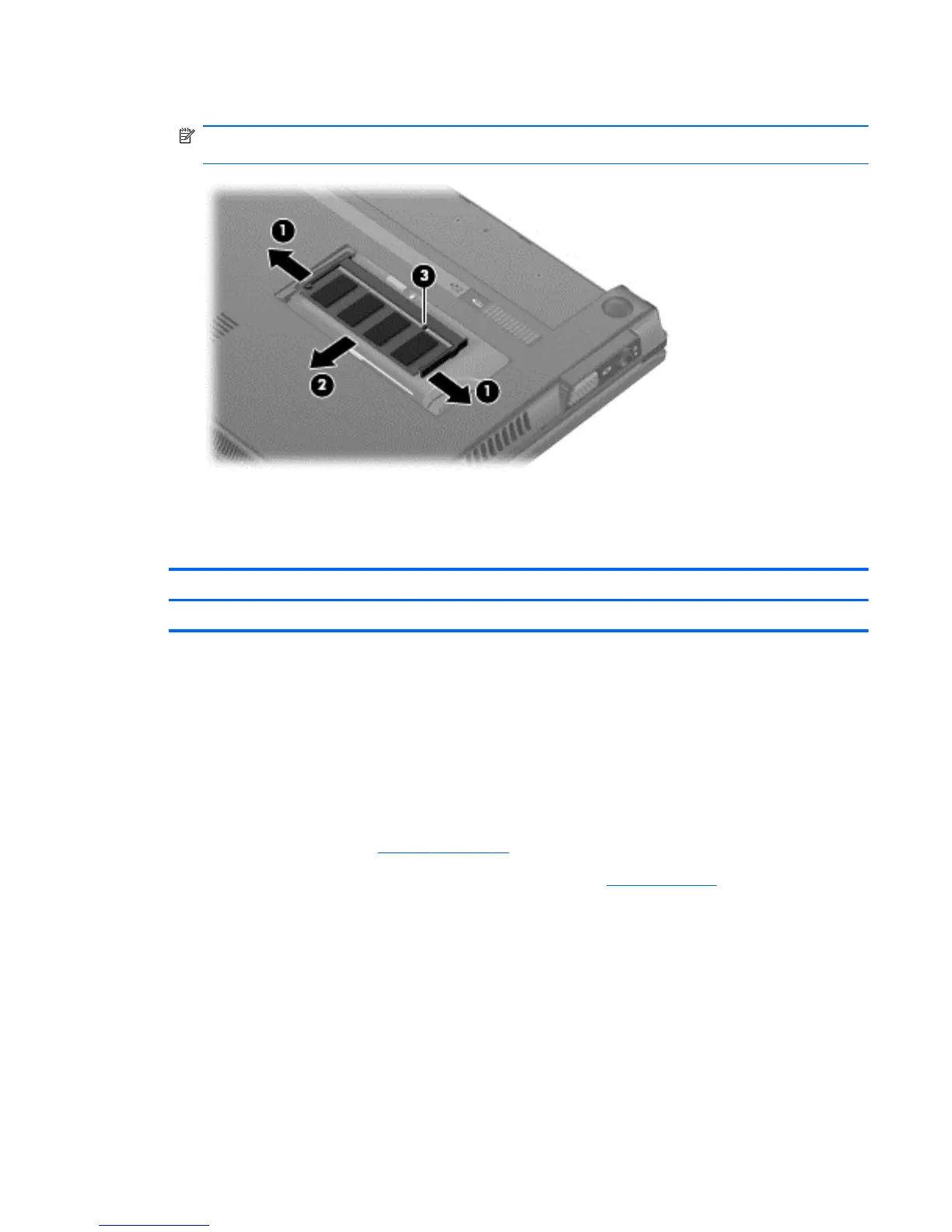

4. Remove the memory module (2) by pulling the module away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
Carrying Handle (select models only)
Description Spare part number
Carrying handle (select models only) 606384-001
Before removing the memory module:
1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the
device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first disconnecting the power cord from the AC outlet
and then disconnecting the AC adapter from the device.
4. Remove the battery (see
Battery on page 38).
5. If your device has WWAN capability, remove the SIM (see
SIM on page 39).
Remove the memory module:
1. Remove the mylar screw coverings (1) and remove the two screws that secure the carrying
handle to the device (2).
Component replacement procedures 41
