Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.

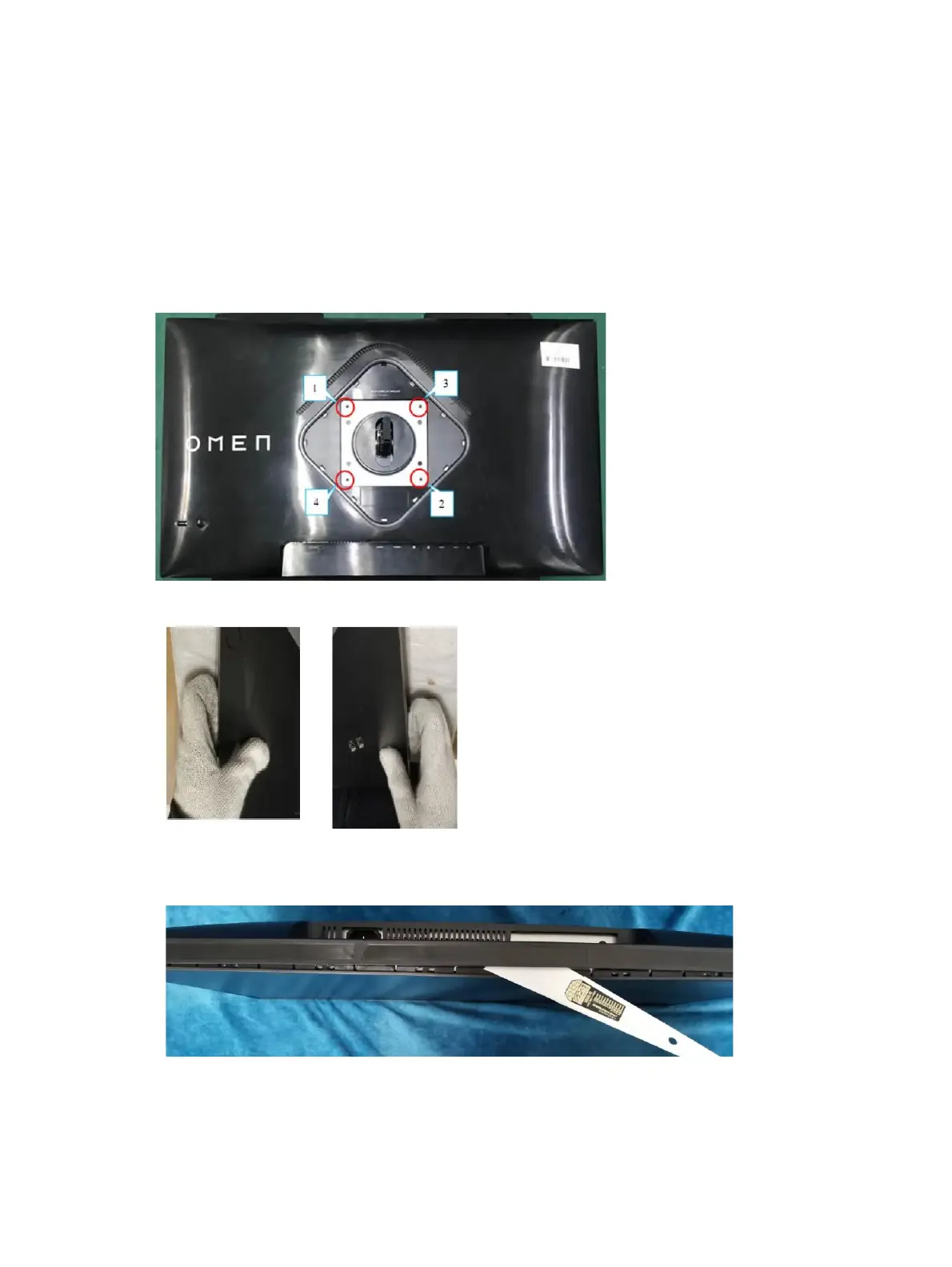

Remove the Rear Cover:
1) Remove the Stand-Base Assy and remove four screw to remove the rear cover.
2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate. The hook opens.
Repeat the steps.
