Connector repair
This procedure includes DisplayPort, HDMI and D-SUB connectors.
The connectors are on the main board (board part number CBPR1EBH7Q2).
The connectors identifiers are as follows:
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
IMPORTANT:
• Repair Condition: Connector repair is only for out of warranty.
• Repairing must operate by professional repairers (Note) in repair center, not applicable for end user.
• Electrostatic protection is required when component replacement is required.
• The monitor meets ROHS, please use Lead-free solder wire for soldering.
• If Connector need to replace, must check specification and part number whether match the BOM and
location.
• If connector need to replace, please insert new parts carefully because the near pin may cause short circuit by
inappropriate operate.
• DO NOT allow any liquid on the board. Water and moisture may cause short-circuit to the electronic
Connector
Location
DisplayPort
CN501
HDMI
CN502
D-SUB
CN503

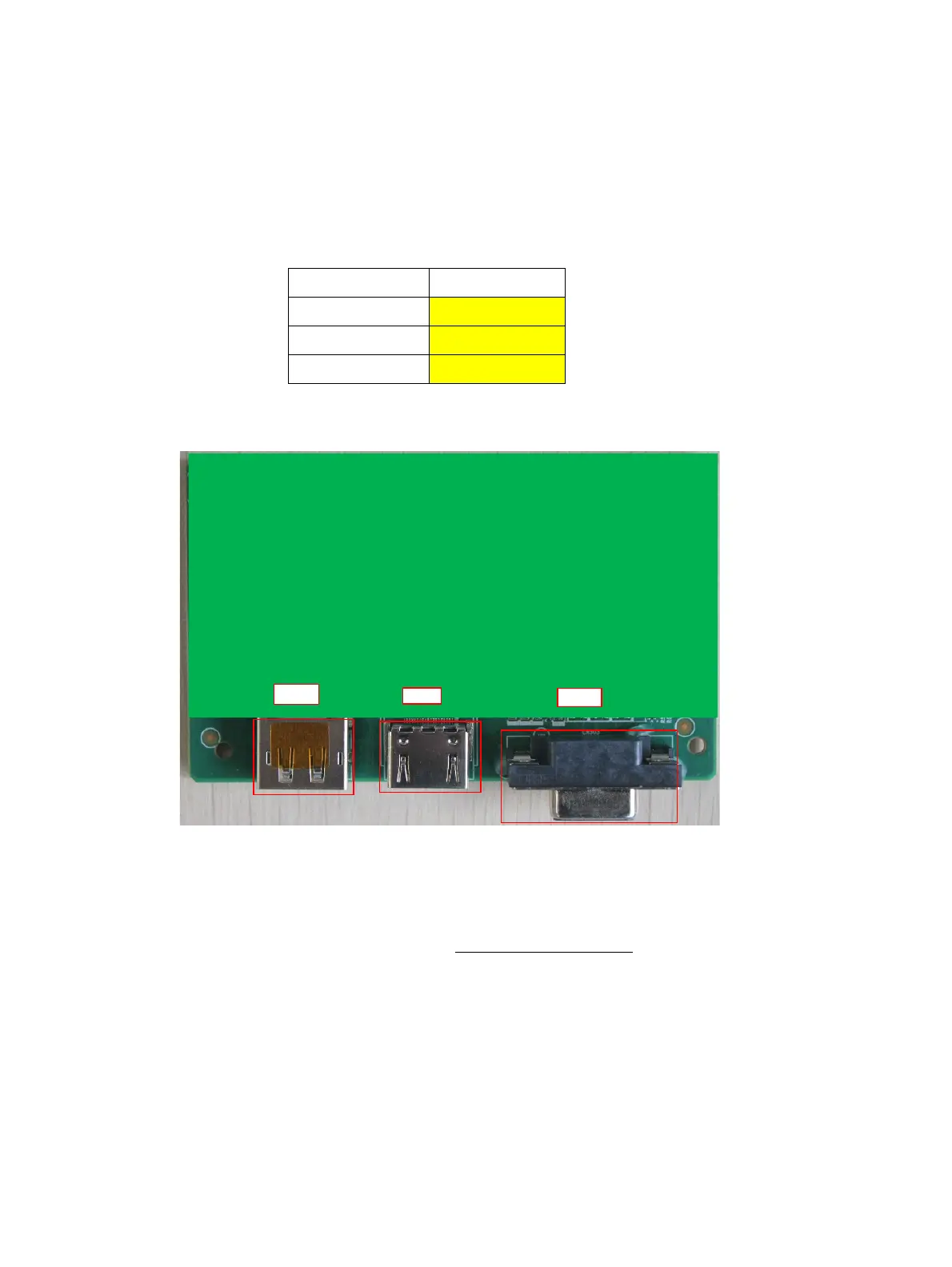

Main Board
CN502
CN503
CN501
