HP P27 G5 User Manual

20
HDMI connector CN502

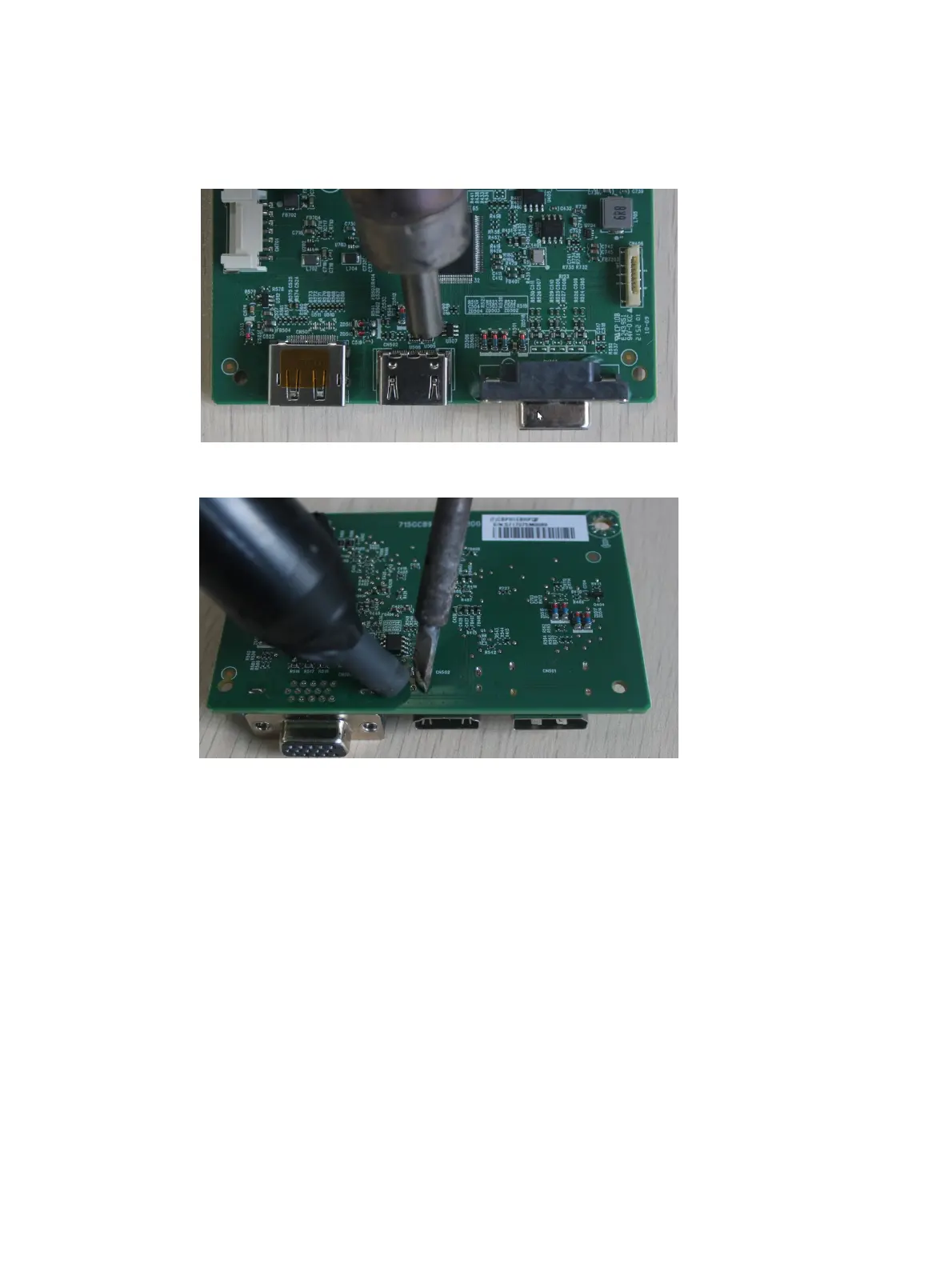

Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN502 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
5) Solder the new component.

HP P27 G5 Specifications

General

Color depth	8 bit
Color gamut	72 %
Pixel pitch	0.31 x 0.31 mm
Screen shape	Flat
Pixel density	82 ppi
Display diagonal	27 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	-
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 86 kHz
Viewable size, vertical	336.1 mm
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	68.6 cm
Viewable size, horizontal	597.9 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1400 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
DisplayPort version	1.2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Product color	Black
Market positioning	Business
Tilt angle range	-5 - 20 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR
Package depth	137 mm
Package width	685 mm
Package height	425 mm
Package weight	7640 g

Weight and Dimensions

Depth (with stand)	190.3 mm
Width (with stand)	611 mm
Height (with stand)	438.4 mm
Weight (with stand)	5080 g
Depth (without stand)	57.1 mm
Height (without stand)	365.5 mm
