2–6 Maintenance and Service Guide
External component identification
Left-side components
✎

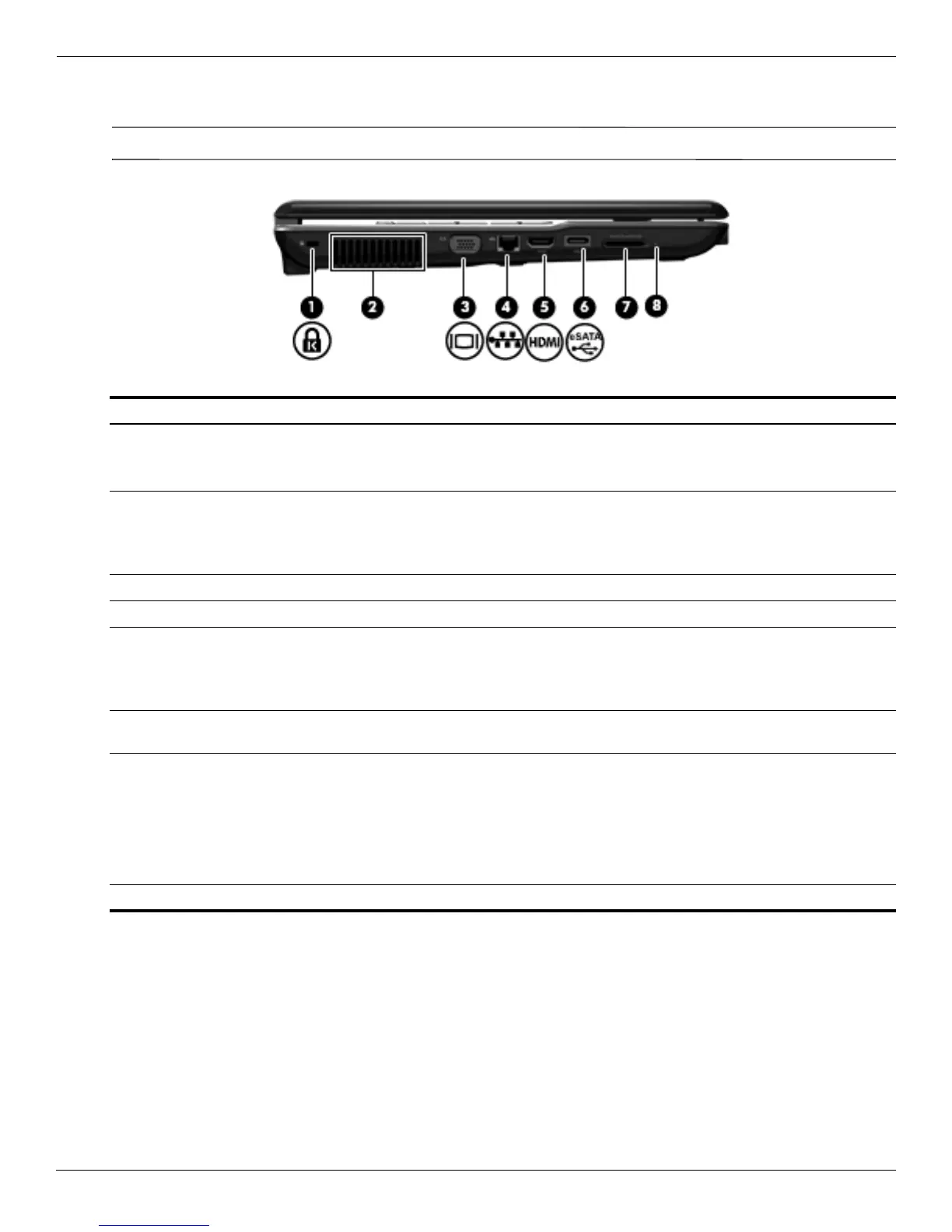

Your computer may look slightly different from the illustration in this section.
Item Component Function
1 Security cable slot Attaches an optional security cable to the computer.
✎
The security cable is designed to act as a deterrent, but it may
not prevent the computer from being mishandled or stolen.
2 Vent Enables airflow to cool internal components.
✎
The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the
internal fan to cycle on and off during routine operation.
3 External monitor port Connects an external VGA monitor or projector.
4 RJ-45 (network) jack Connects a network cable.
5 HDMI port (select models only) Connects an optional video or audio device, such as a high-definition
television, or any compatible digital or audio component.
✎
Depending on your computer model, the computer may include
an HDMI port or a USB port at this location.
6
eSATA/USB port Connects a high-performance eSATA component, such as an eSATA
external hard drive, or connects an optional USB device.
7
Digital Media Slot (select models only) Supports the following digital card formats:
■ Memory Stick (MS)
■ Memory Stick Pro (MSP)
■ MultiMediaCard (MMC)
■ Secure Digital (SD) Memory Card
■ xD-Picture Card (XD)
8 Digital Media Slot light (select models only) On: The Digital Media Slot is in use.
