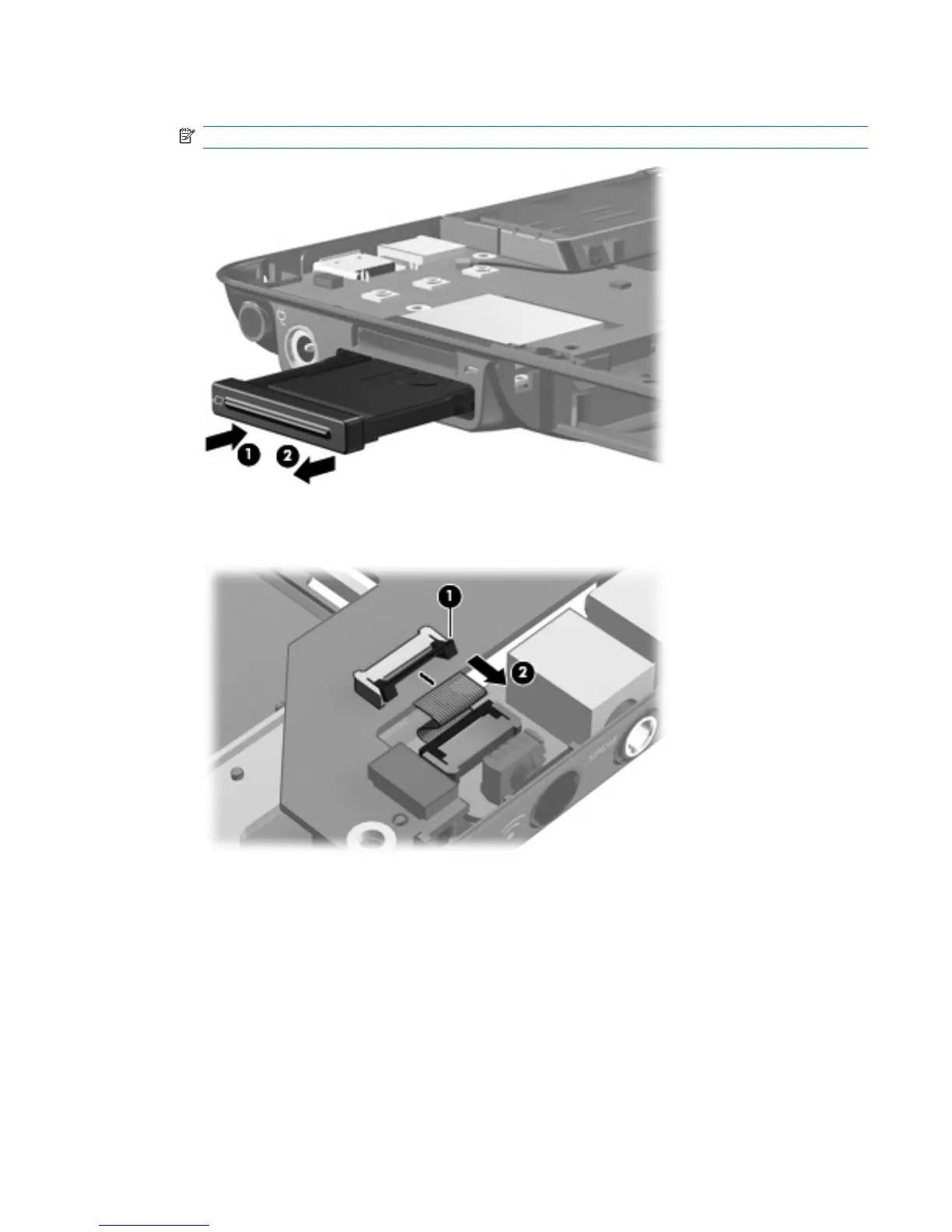

2. Remove the ExpressCard slot bezel (2) from the ExpressCard slot.
NOTE: The ExpressCard slot bezel is included in the Plastics Kit, spare part number 487926-001.
3. Release the ZIF connector (1) to which the audio/infrared board cable is connected and disconnect
the audio/infrared board cable (2) from the system board.
4. Use the optical drive connector (1) to lift the left side of the system board (2) until the power
connector (3) is clear of the base enclosure.
Component replacement procedures 63
