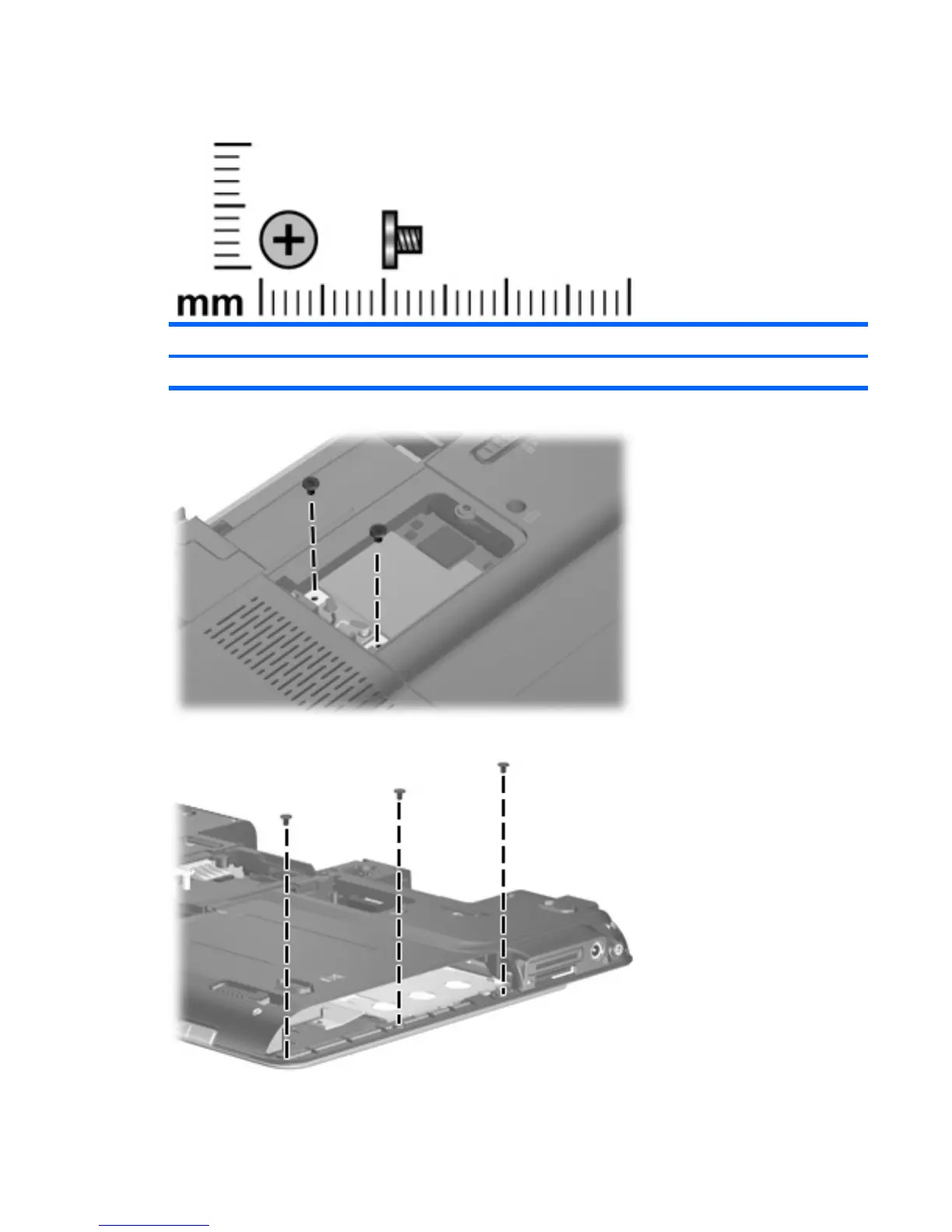

Black Phillips PM2.0×3.0 screw
Color
Quantity
Length
Thread
Head width
Black
5
3.0 mm
2.0 mm
4.5 mm
Where used
:
2 screws that secure
the WLAN module to the com
puter
Where used
:
3 screws that secure the top
cover to the base en
closure
Black Phillips PM2.0×3.0 screw
91
98
100
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Top Components
13
Display Components
13
Keys
15
Pointing Devices
16
Front Components
17
Left-Side Components
18
Right-Side Components
19
Rear Components
20
Bottom Components
21
3 Illustrated Parts Catalog
22
Service Tag Location
22
Computer Major Components
24
Plastics Kit
30
Mass Storage Devices
30
Miscellaneous Parts
32
Sequential Part Number Listing
33
4 Removal and Replacement Procedures
39
Preliminary Replacement Requirements
39
Tools Required
39
Service Considerations
39
Plastic Parts
39
Cables and Connectors
40
Drive Handling
40
Grounding Guidelines
41
Electrostatic Discharge Damage
41
Packaging and Transporting Guidelines
42
Workstation Guidelines
42
Equipment Guidelines
43
Unknown User Password
44
Component Replacement Procedures
45
Service Tag Location
45
Computer Feet
46
Battery
47
Pen
48
Hard Drive
49
Optical Drive
51
Memory Module
52
WLAN Module
54
Keyboard
57
Switch Cover
59
Display Assembly
61
Top Cover
64
RTC Battery
66
Power Switch Assembly
67
Bluetooth Module
69
System Board
70
Pen Holder and Pen Eject Assembly
73
Audio/Infrared Board
74
Fan/Heat Sink Assembly
76
Processor
78
5 Setup Utility
80
Starting the Setup Utility
80
Changing the Language of the Setup Utility
81
Navigating and Selecting in the Setup Utility
81
Displaying System Information
81
Restoring Default Settings in the Setup Utility
82
Using Advanced Setup Utility Features
82
Closing the Setup Utility
83
Setup Utility Menus
83
Main Menu
83
Security Menu
83
System Configuration Menu
84
Diagnostics Menu
84
6 Specifications
85
Computer Specifications
85
12.1-Inch, WXGA Brightview Display Specifications
86
Hard Drive Specifications
87
DVD±RW and CD-RW Supermulti Double-Layer Combo Drive Specifications
88
System DMA Specifications
89
System Interrupt Specifications
90
System I/O Address Specifications
91
System Memory Map Specifications
93
7 Screw Listing
94
Phillips PM3.0×3.0 Screw
94
Phillips PM2.0×7.0 Screw
95
Phillips PM2.0×4.0 Screw
96
Phillips PM2.0×5.0 Captive Screw
98
Black Phillips PM2.0×3.0 Screw
99
Phillips PM2.0×11.0 Screw
100
Phillips PM2.5×6.0 Screw
101
Silver Phillips PM2.0×3.0 Screw
102
8 Backup and Recovery
103
Recovering System Information
103
Creating Recovery Discs
103
Backing up Your Information
104
When to Back up
104
Backup Suggestions
105
Using System Restore Points
105
Create a System Restore Point
105
When to Create Restore Points
105
Restore to a Previous Date and Time
107
Performing a Recovery
108
Recovering from the Partition on the Hard Drive
108
Recovering from the Recovery Discs
108
9 Connector Pin Assignments
109
Audio-Out (Headphone)
109
Audio-In (Microphone)
109
External Monitor
110
Modem)
111
Network)
111
S-Video-Out
112
Universal Serial Bus
112
10 Power Cord Set Requirements
113
Requirements for All Countries or Regions
113
Requirements for Specific Countries or Regions
114
Display
116
