i. System board (see System board on page 62)
j. Pen holder (see
Pen holder and pen eject assembly on page 65)

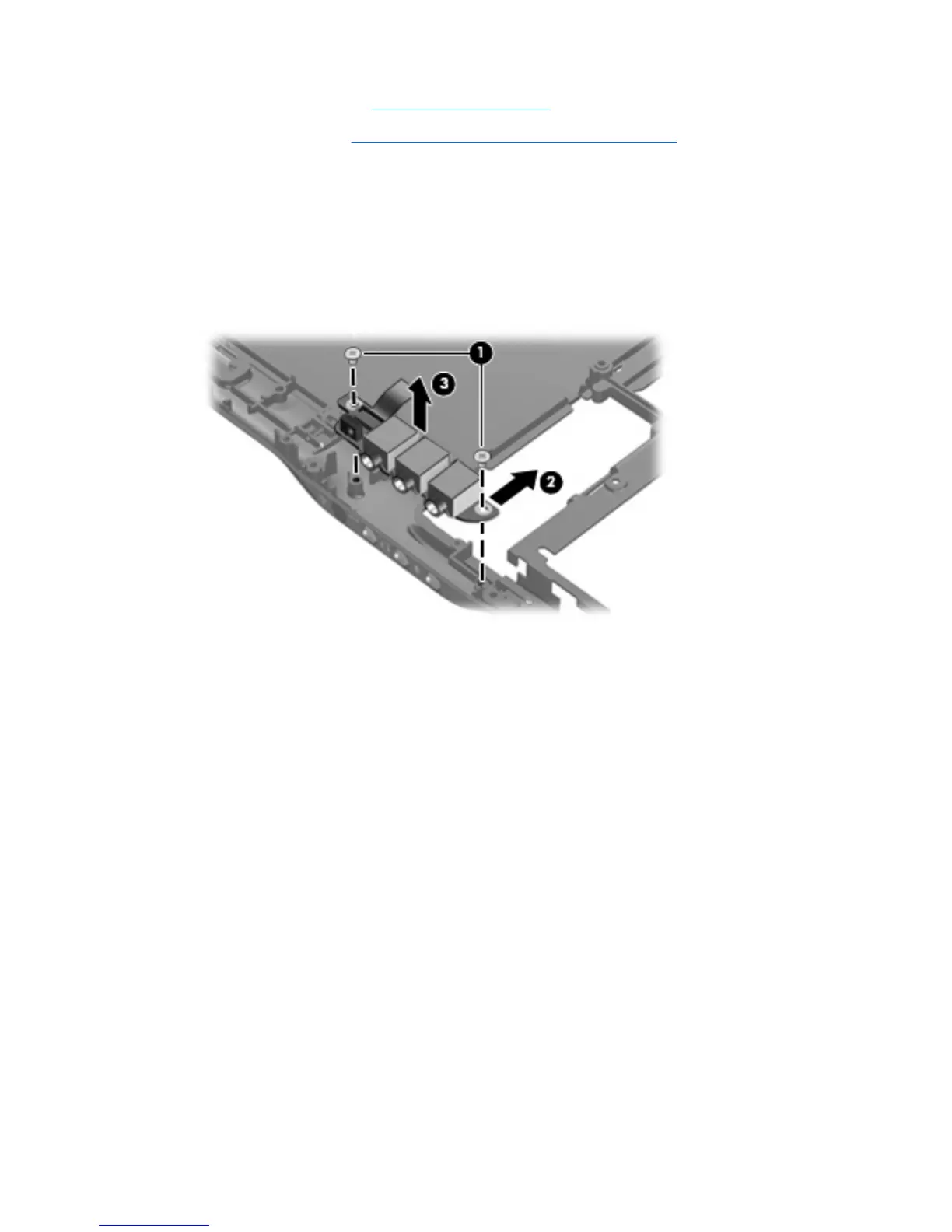

Remove the audio/infrared board:
1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the audio/infrared board to the system
board.
2. Release the audio/infrared board (2) by sliding it away from you until the connectors on the front
of the board disengage from the openings in the base enclosure.
3. Remove the audio/infrared board (3).
Reverse this procedure to install the audio/infrared board.
Component replacement procedures 67
