Display assembly subcomponents

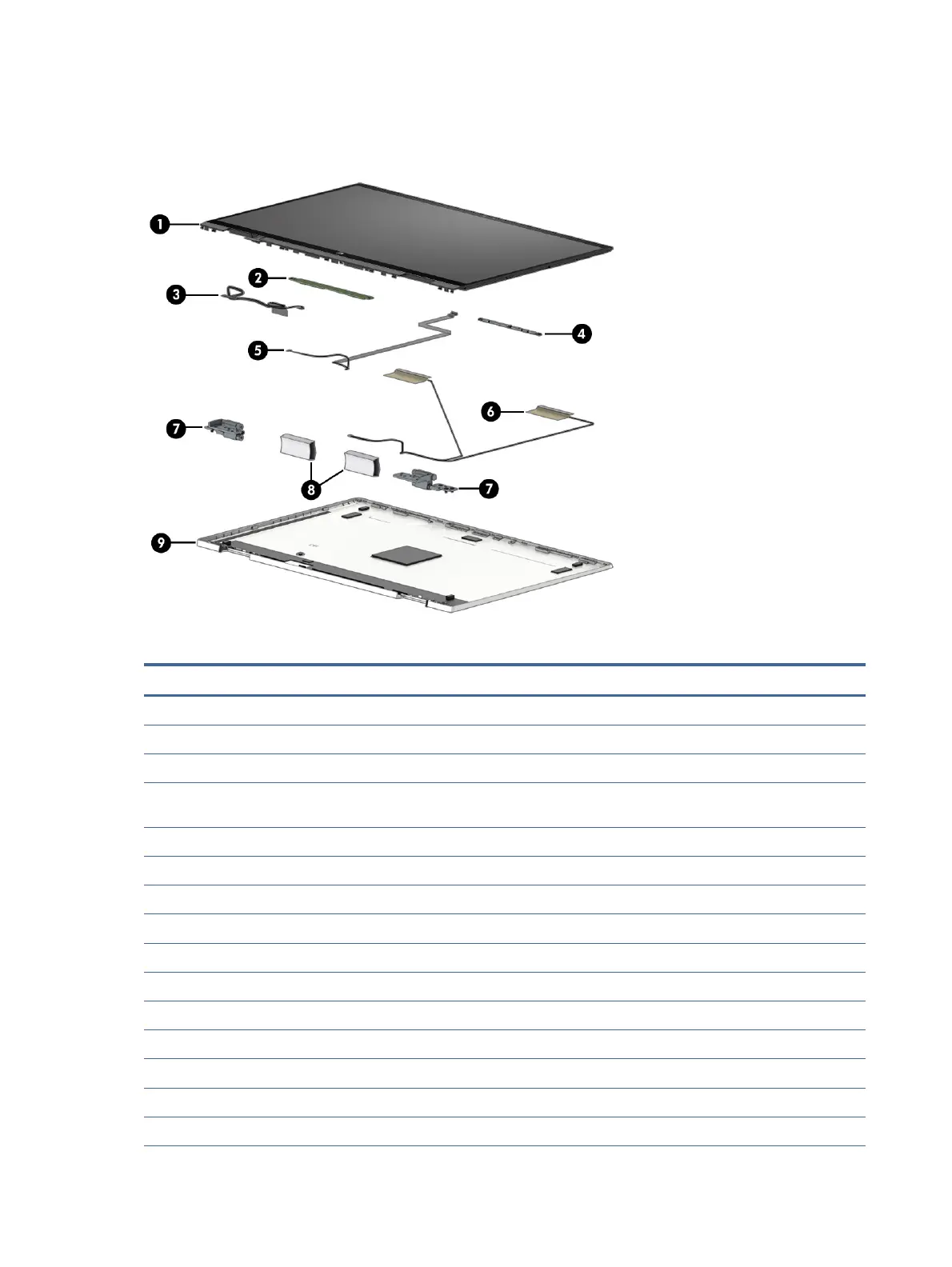

To identify the display assembly subcomponents, use this illustration and table.
Table 3-2 Display component descriptions and part numbers
Item Component Spare part number
(1) Touch panel kit
HD M45119-001
FHD M45118-001
(2) Touch control board not available as a
spare part
(3) Display/touch control board cable M45120-001
(4) Camera module M48775-001
(5) Camera cable M45390-001
(6) WLAN antennas and cables M45106-001
(7) Hinges (left and right) M07104-001
FHD models M45115-001
HD models M45114-001
(8) Hinge covers
FHD models M45117-001
HD models M45116-001
(9) Display back cover
18 Chapter 3Illustrated parts catalog
