Power connector cable
Description Spare part number
Power connector cable 806746-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 29).
5. Remove the optical drive (see
Optical drive on page 30).
6. Remove the bottom cover (see
Bottom cover on page 34).
7. Remove the system board (see
System board on page 48).

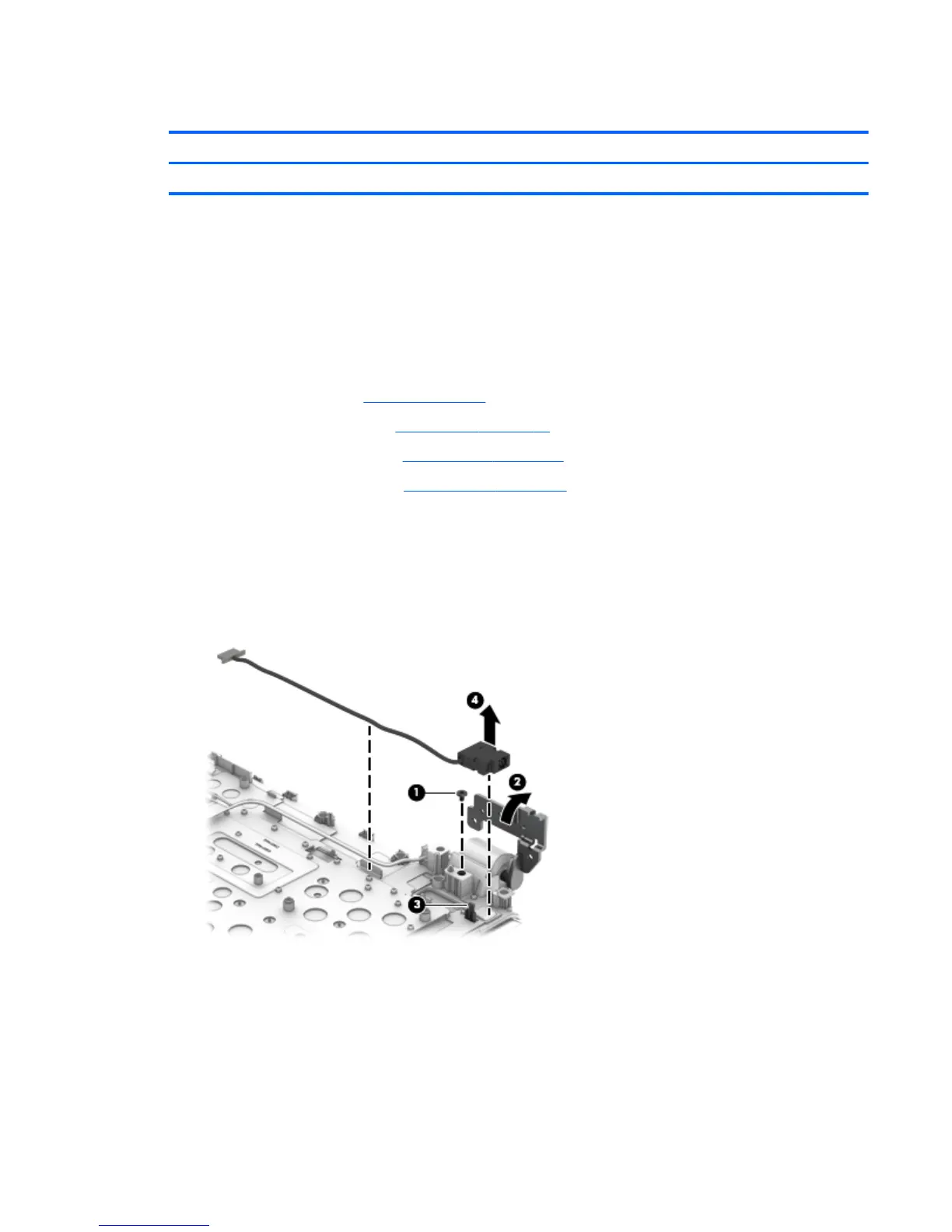

To remove the power connector cable:
1. Remove the Phillips PM2.5×3.0 screw (1) from the left hinge that sits above the power connector.
2. Rotate the hinge upward (2).
3. Pull the tab away from the connector (3), and then remove the power connector and cable (4) from the
computer.
Reverse this procedure to install the power connector cable.
Component replacement procedures 53
