Rear-facing webcam
Description Spare part number
8.0-MP, auto-focus, rear-facing webcam (includes cable and double-sided adhesive) 805087-001
Before removing the rear-facing webcam, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 14).
5. Remove the middle frame and battery (see Middle frame and battery on page 15).

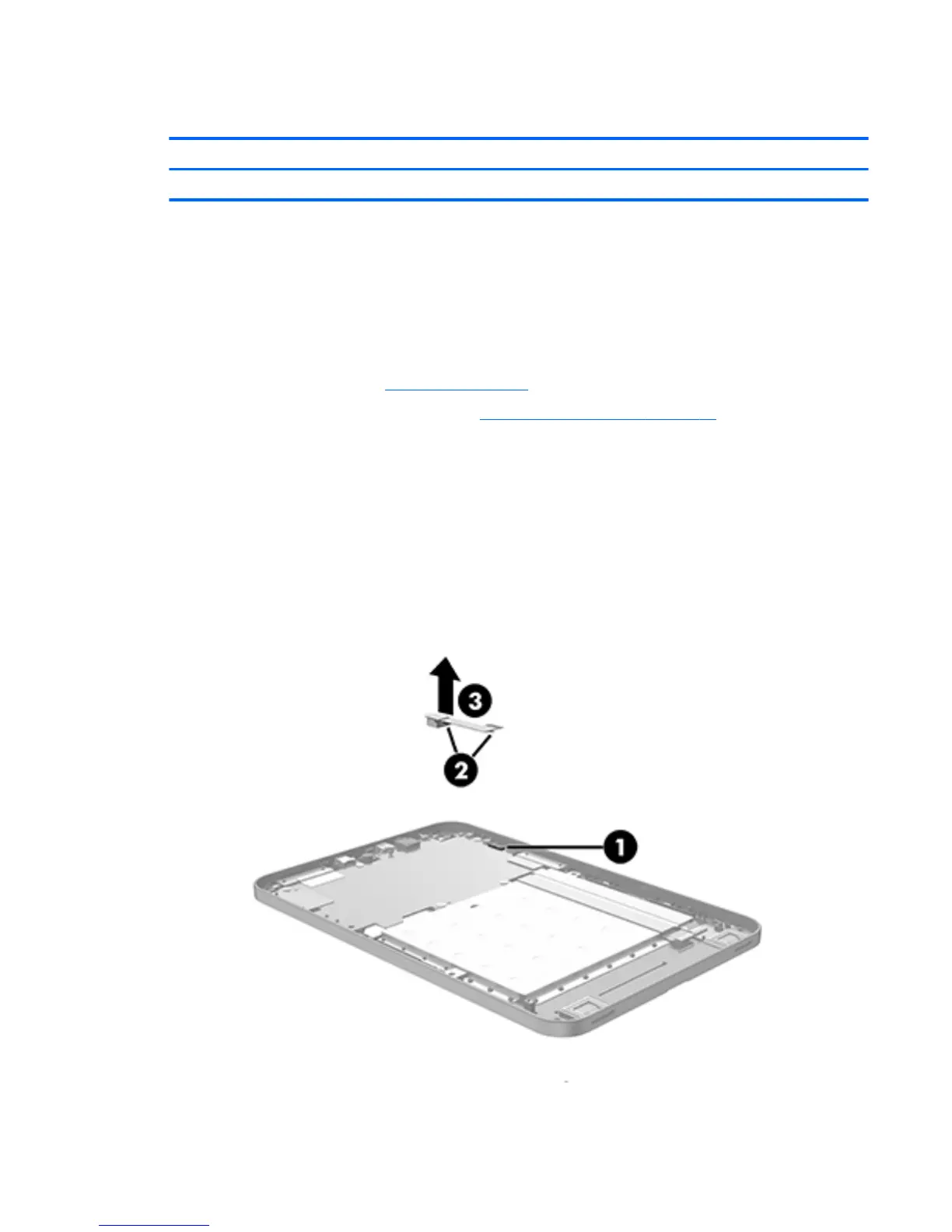

Remove the rear-facing webcam:
1. Turn the middle frame upside down with the volume control buttons facing away.
2. Release the ZIF connector (1) to which the rear-facing webcam is attached, and then disconnect the
rear-facing webcam cable from the system board.
3. Detach the rear-facing webcam cable (2) from the system board. (The rear-facing webcam cable is
attached to the system board with double-sided adhesive.)
4. Remove the rear-facing webcam (3).
Reverse this procedure to install the rear-facing webcam.
Rear-facing webcam 19
