Display panel cable
Description Spare part number
Display panel cable 805081-001
Before removing the display panel cable, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 14), and then remove the following components:
a. Middle frame and battery (see Middle frame and battery on page 15)
b. Rear-facing webcam (see Rear-facing webcam on page 19)
c. System board (see System board on page 20)

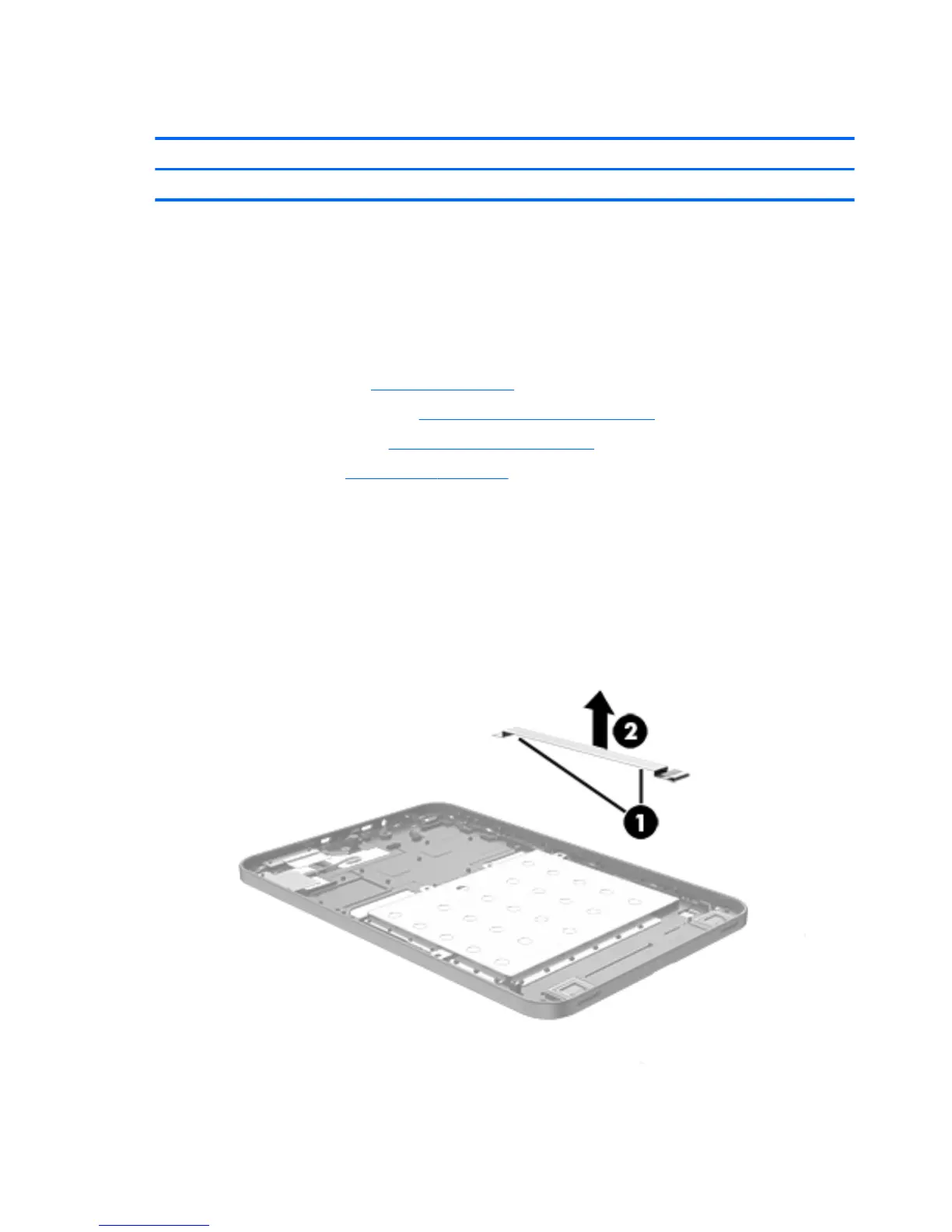

Remove the display panel cable:
1. Detach the display panel cable (1) from the middle frame. (The display panel cable is attached to the
middle frame with double-sided adhesive at two locations.)
2. Remove the display panel cable (2).
Reverse this procedure to install the display panel cable.
26 Chapter 5 Removal and replacement procedures
