Planning
Planning Your PoE Configuration
Planning
HP ProCurve 2626-PWR Configurations
The tables in the example configurations contain entries that show the PoE
power available when the 2626-PWR is used alone. When used with the HP
600 RPS/EPS or HP 610 EPS unit, PoE power is available to the PoE ports
should the internal PoE power supply fail. Table entries show the PoE power
available when the HP 600 RPS/EPS or HP 610 EPS alone provides PoE power.

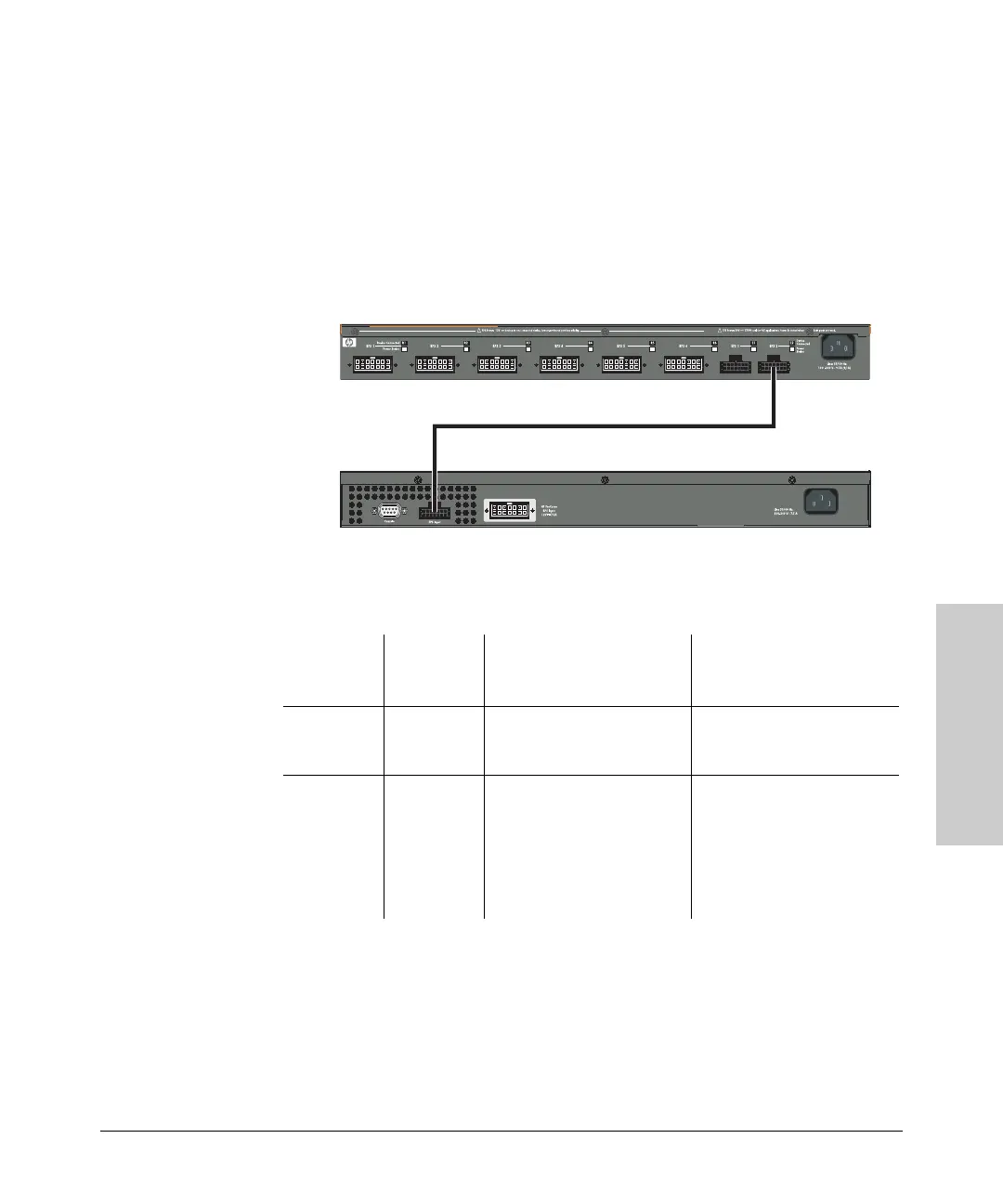

Figure 3-1. Example of an HP 600 RPS/EPS Powering One 2626-PWR Switch
■ A single 2626-PWR switch with a dedicated HP 600 RPS/EPS unit has fully
redundant PoE power for all 24 ports at 15.4 W per port.
HP 600 RPS/EPS
HP ProCurve Switch
2626-PWR
Source of
Power
Watts
Available
# of Ports Powered and
Average Watts/Port
Redundant # of Ports
Powered and Average Watts/
Port
Internal PoE
Power
Supply
406 24 @ average 15.4 W each
External PoE
Power
Supply
(Failed
Internal PoE
Power
Supply)
408 24 @ average 15.4 W each
