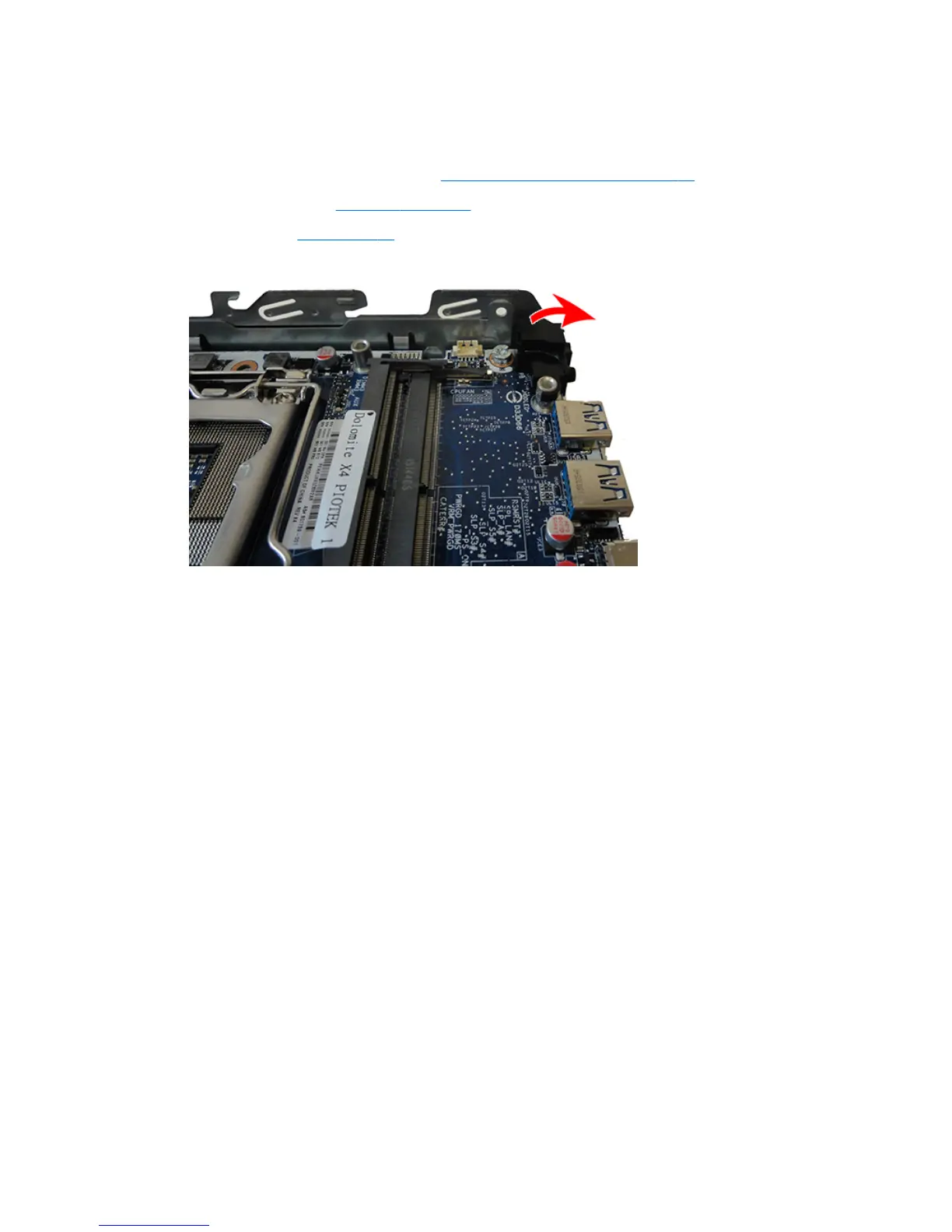

Power switch/light cover
The power switch/light cover is located at the front, right of the computer, under the top cover.
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the fan (Fan on page 37).
4. Rotate the top of the cover away from the computer and lift it o the system board.
To install the power switch/light cover, reverse the removal procedure.
38 Chapter 4 Removal and replacement procedures – desktop mini (DM) chassis
