Speaker
A single speaker is located on the left side of the computer behind the front bezel, inside the chassis. It is
secured by a white peg that you pull out to release.
To remove the speaker:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the top cover (Top cover on page 21).
3. Remove the hard drive (Hard drive on page 23).
4. Remove the hard drive cage (Drive cage on page 27).

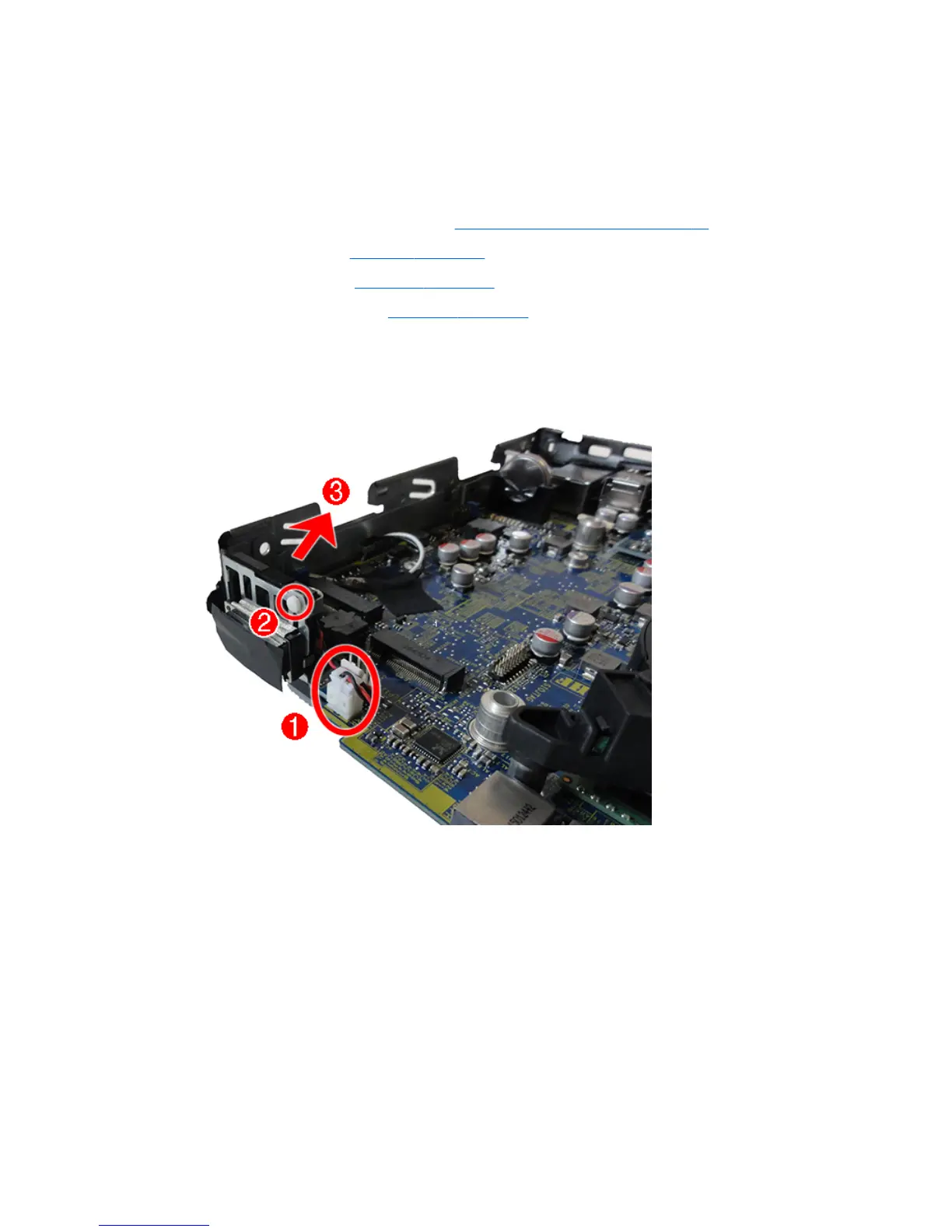

5. Disconnect the speaker cable from the system board connector (1).
6. From the front of the computer, pull to remove the white peg that secures the speaker (2).
7. Lift to remove the speaker from the computer (3).
To install the speaker, reverse the removal procedures.
Speaker 47
