HP ProDesk 600 G2 Desktop Mini Service Manual

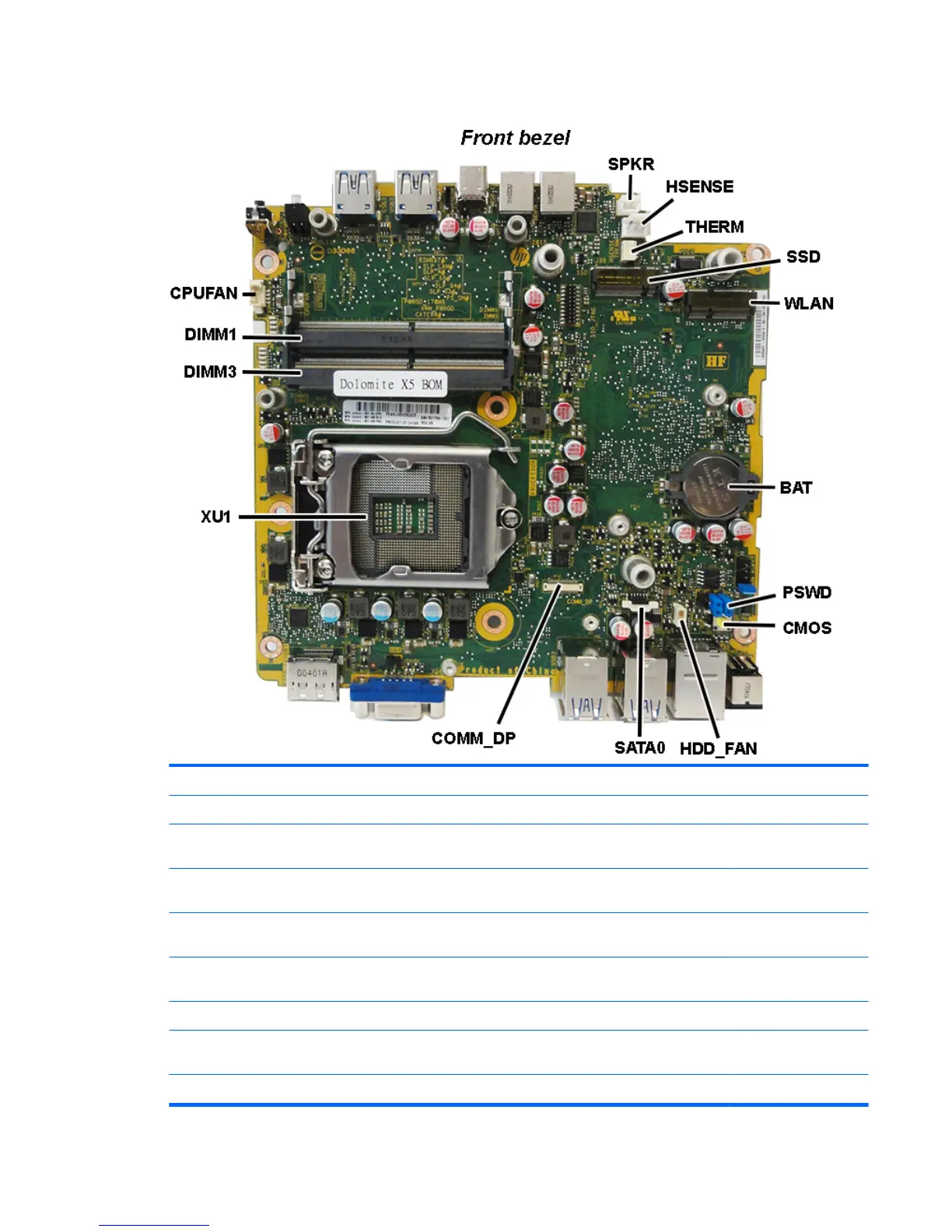

System board callouts, EliteDesk 800, ProDesk 600, and HP MP9 Retail System
Sys Bd Label Color Component Sys Bd Label Color Component
SPKR White Speaker connector HDD_FAN White Secondary hard drive
HSENSE White Hood sensor connector SATA Blue Hard drive data
connector
THERM White Thermal sensor COMM_DP White Expansion board
connector
SSD Black Solid-state module
socket
XU1 Black Processor socket
WLAN Black WLAN module socket DIMM3 Black Secondary memory
socket
BAT Black RTC battery DIMM1 Black Primary memory socket
PSWD Black/blue Password header and
jumper
CPUFAN White Fan connector
CMOS Yellow CMOS reset button
System board 51
