22
For USB Board
USB 3.0A connector CN1101~CN1104
Repair the USB connector:

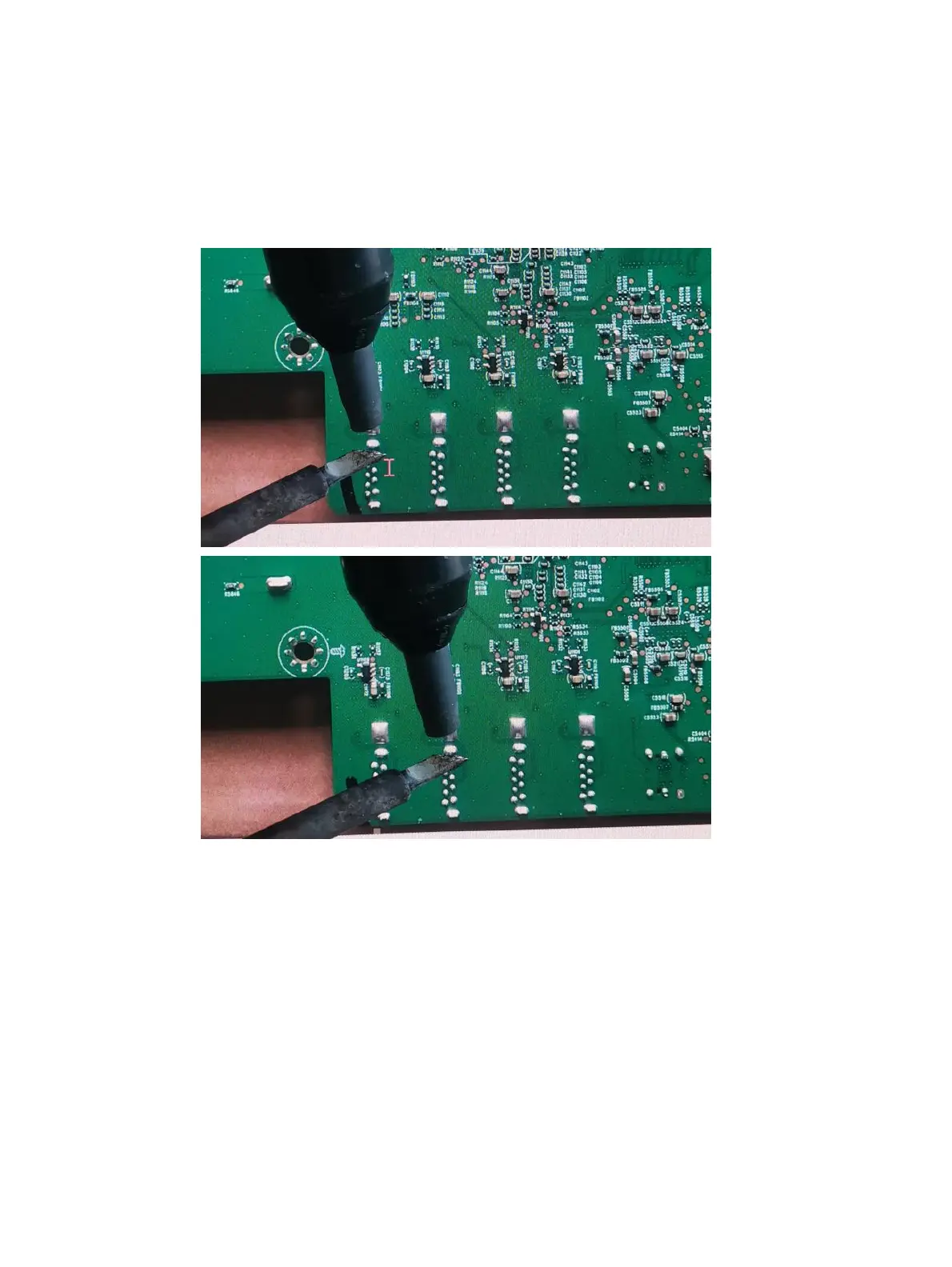

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the USB connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
USB Type-C 1 connector CN5101
Repair the USB Type-C connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
