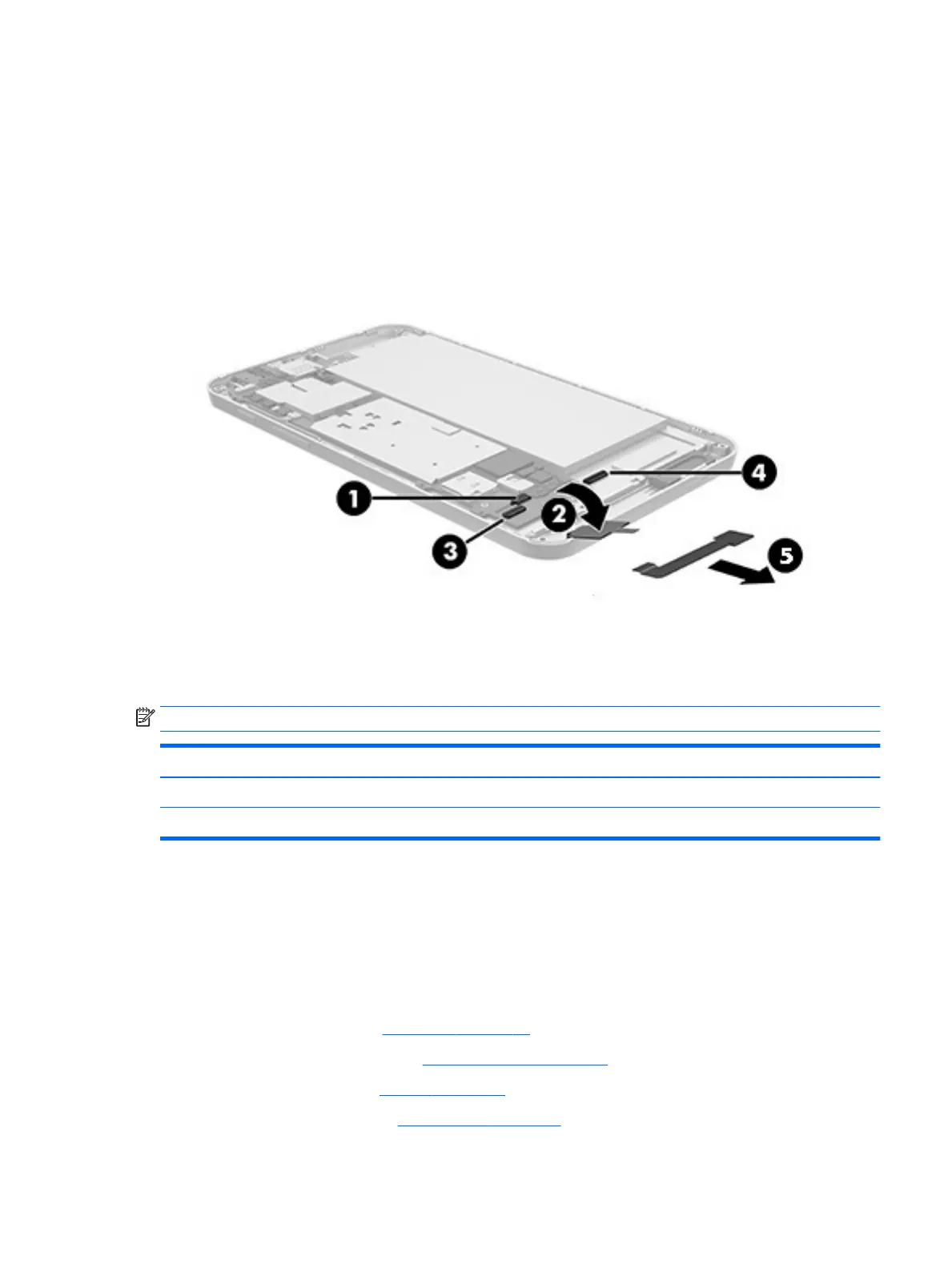

4. Slide the display cable (5) to the right to remove it.
Reverse this procedure to install the display cable.
Speaker
NOTE: The speaker is also spared with the system board.
Description Spare part number
Speaker Kit (includes speaker and cables) 796788-001
Speaker rubber protector 796792-001
Before removing the speaker, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power adapter cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 13).
5. Remove the mid-frame cover (see Mid-frame cover on page 14).
6. Disconnect the battery (see Battery on page 15).
7. Remove the display cable (see Display cable on page 20).
Speaker 21
