Display assembly
NOTE: The display assembly is spared at the subcomponent level only. For display assembly spare part
information, see the individual removal subsections.
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 24).
5. Disconnect the battery cable from the system board (see Battery on page 25).
Remove the display assembly:

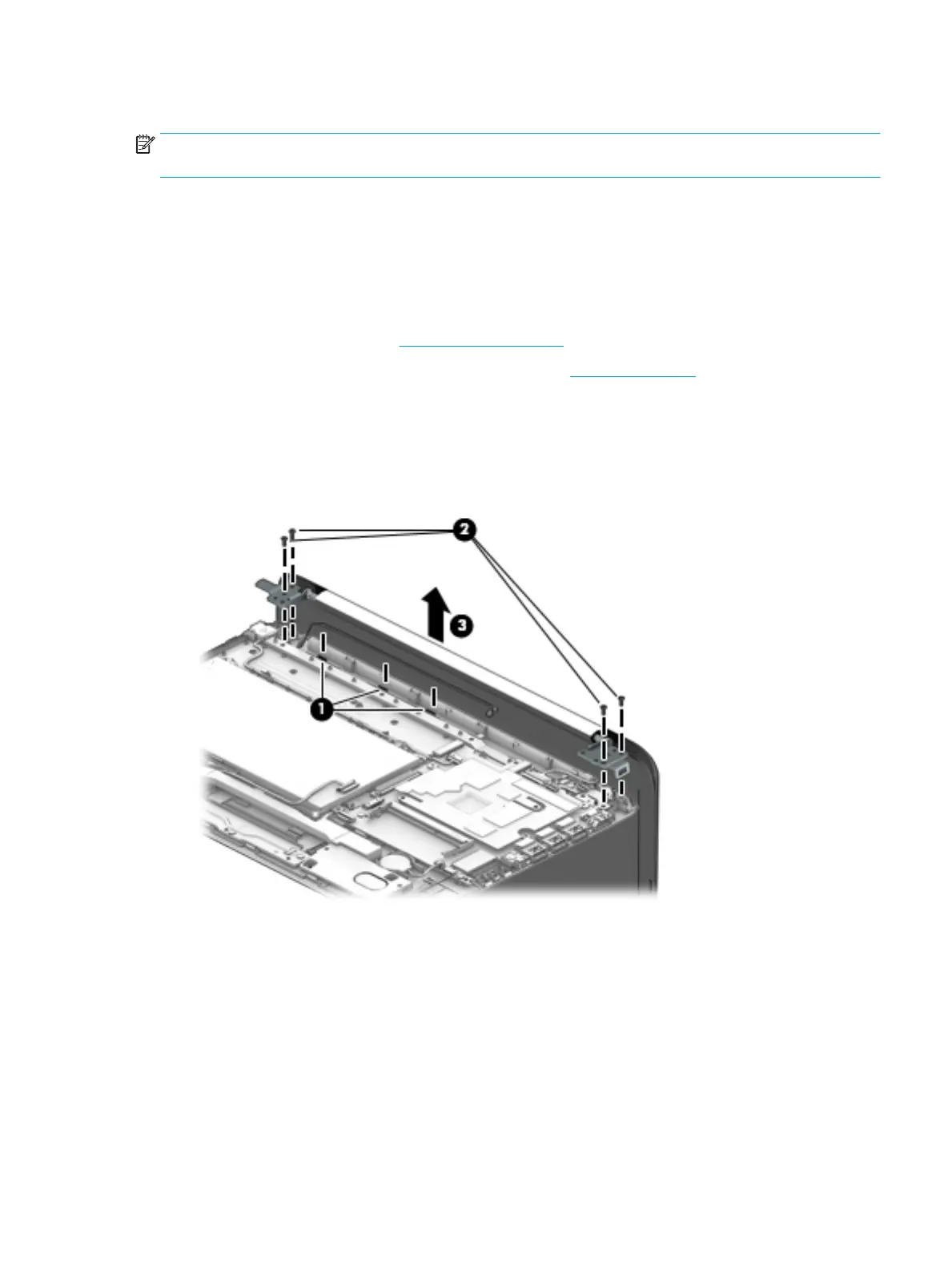

1. Remove the WLAN antennas from the routing path in the computer (1).
2. Remove the four Phillips PM2.5×5.0 screws (2) that secure the display assembly to the computer.
3. Lift the display assembly from the computer (3).
4. If it is necessary to replace the display bezel:
a. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge (3) of
the display bezel until the bezel disengages from the display back cover.
b. Remove the display bezel (4).
The display bezel is available using the following spare part numbers:
905559-001 for blue models
910177-001 for white models
928418-001 for black models
Component replacement procedures 37
