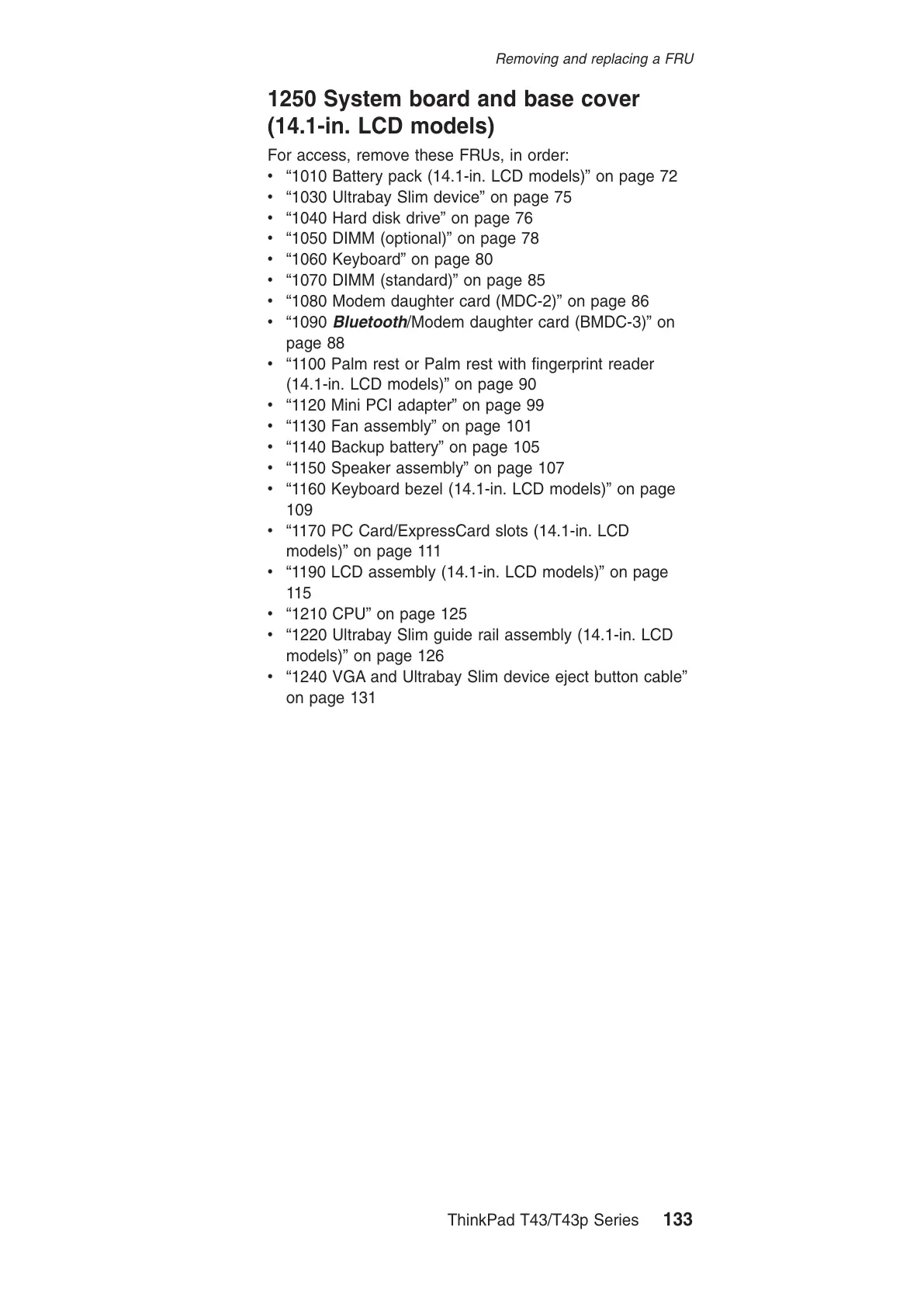

1250 System board and base cover
(14.1-in. LCD models)
For access, remove these FRUs, in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1030 Ultrabay Slim device” on page 75
v “1040 Hard disk drive” on page 76
v “1050 DIMM (optional)” on page 78
v “1060 Keyboard” on page 80
v “1070 DIMM (standard)” on page 85
v “1080 Modem daughter card (MDC-2)” on page 86
v “1090 Bluetooth/Modem daughter card (BMDC-3)” on
page 88
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1120 Mini PCI adapter” on page 99
v “1130 Fan assembly” on page 101
v “1140 Backup battery” on page 105
v “1150 Speaker assembly” on page 107
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
v “1170 PC Card/ExpressCard slots (14.1-in. LCD
models)” on page 111
v “1190 LCD assembly (14.1-in. LCD models)” on page
115
v “1210 CPU” on page 125
v “1220 Ultrabay Slim guide rail assembly (14.1-in. LCD
models)” on page 126
v “1240 VGA and Ultrabay Slim device eject button cable”
on page 131
Removing and replacing a FRU
ThinkPad T43/T43p Series 133
