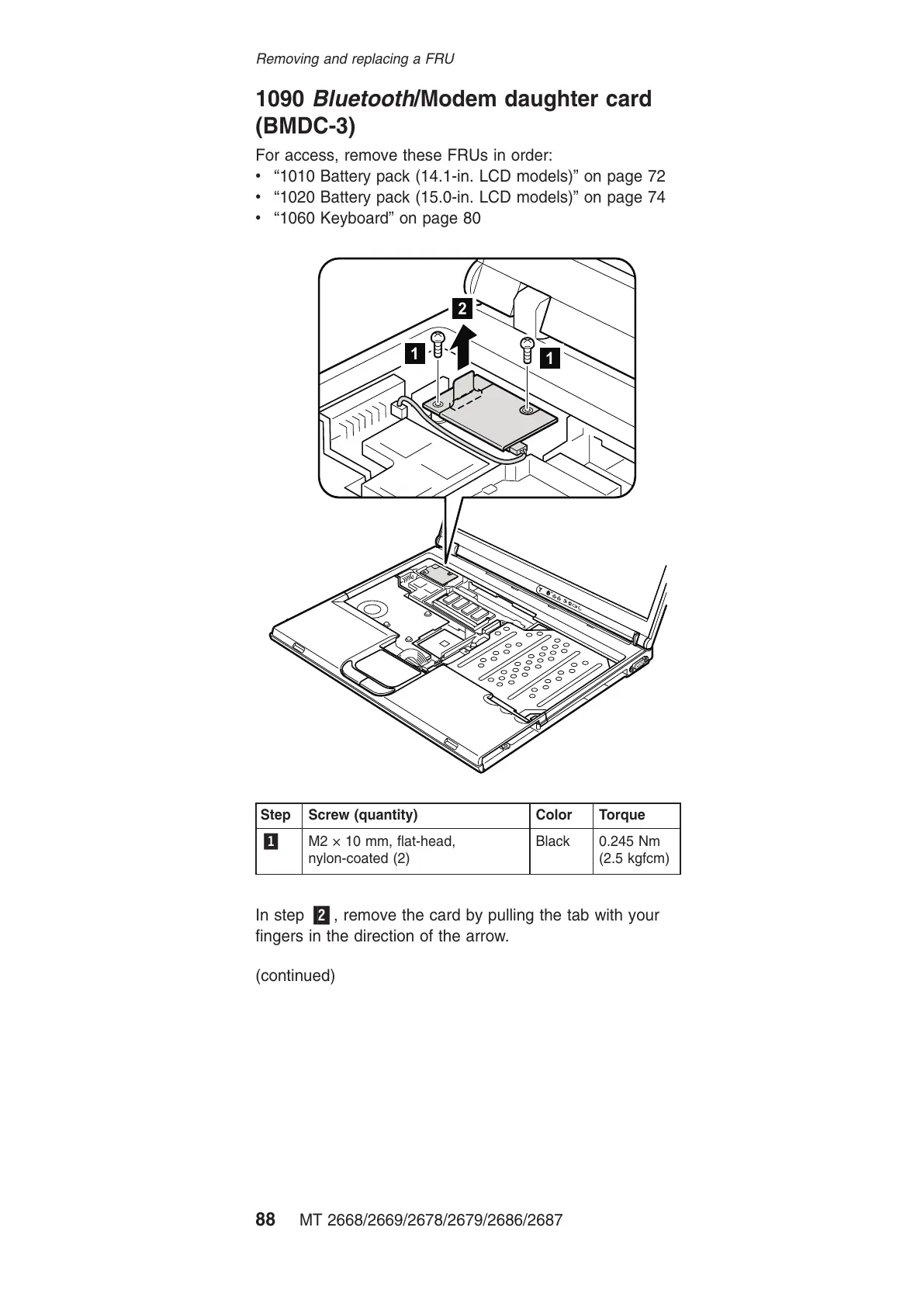

1090 Bluetooth/Modem daughter card
(BMDC-3)
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1020 Battery pack (15.0-in. LCD models)” on page 74
v “1060 Keyboard” on page 80
2
1
1
Step Screw (quantity) Color Torque
1 M2 × 10 mm, flat-head,
nylon-coated (2)
Black 0.245 Nm
(2.5
kgfcm)
In step 2, remove the card by pulling the tab with your
fingers in the direction of the arrow.
(continued)
Removing and replacing a FRU
88 MT 2668/2669/2678/2679/2686/2687
