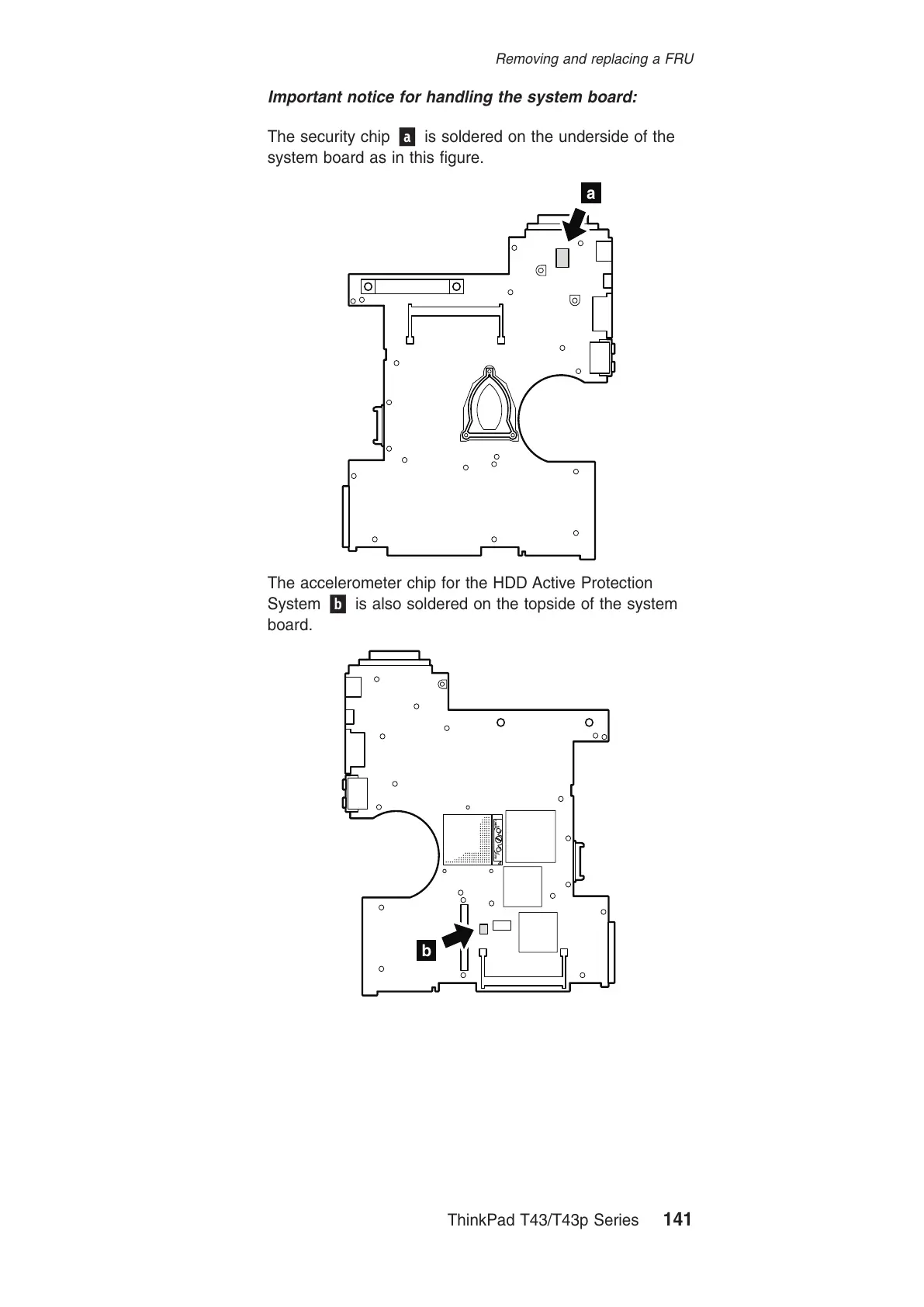

Important
notice
for
handling
the
system
board:
The
security
chip
a
is
soldered
on
the
underside
of
the
system
board
as
in
this
figure.
a
The
accelerometer
chip
for
the
HDD
Active
Protection
System
b
is
also
soldered
on
the
topside
of
the
system
board.
b
Removing
and
replacing
a
FRU
ThinkPad
T43/T43p
Series
141
