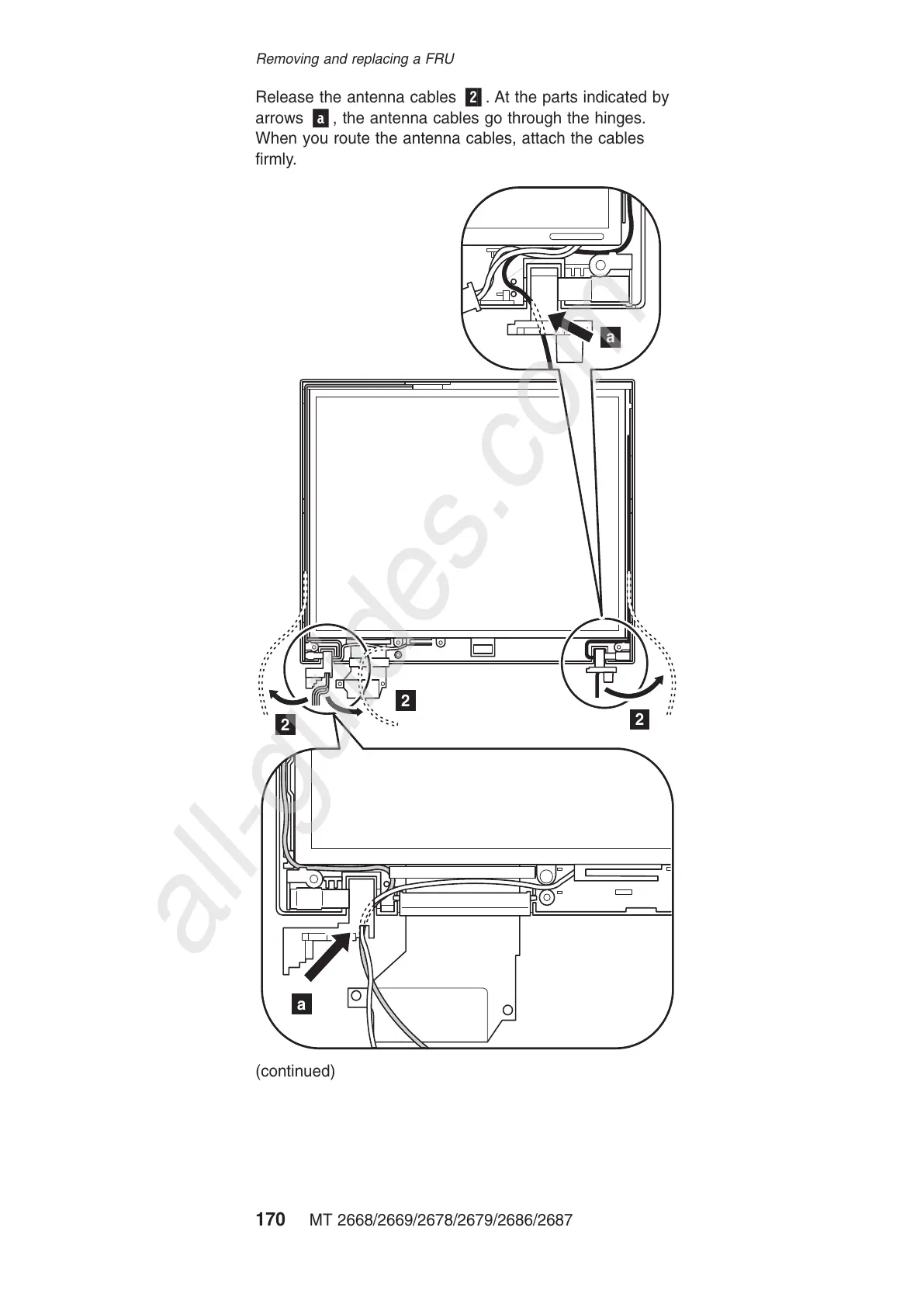

Release
the
antenna
cables
2
.
At
the
parts
indicated
by
arrows
a
,
the
antenna
cables
go
through
the
hinges.
When
you
route
the
antenna
cables,
attach
the
cables
firmly
.
a
a
2
2
2
(continued)
Removing
and
replacing
a
FRU
170
MT
2668/2669/2678/2679/2686/2687
All manuals and user guides at all-guides.com
