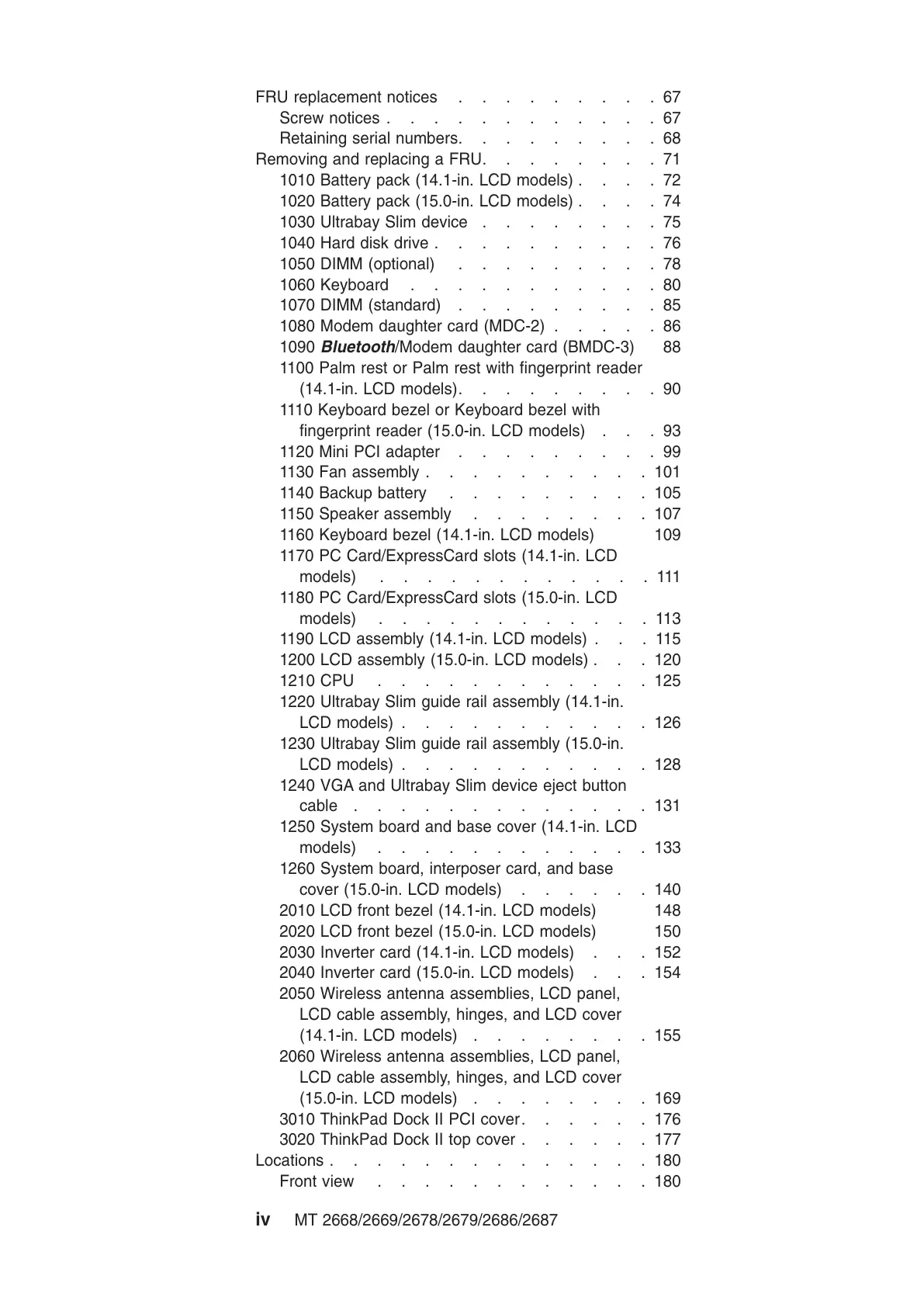

HP ThinkPad T43 User Manual

FRU replacement notices . . . . . . . . .67
Screw notices . . . . . . . . . . . .67
Retaining serial numbers . . . . . . . . .68
Removing and replacing a FRU . . . . . . . .71
1010 Battery pack (14.1-in. LCD models) . . . .72
1020 Battery pack (15.0-in. LCD models) . . . .74
1030 Ultrabay Slim device . . . . . . . .75
1040 Hard disk drive . . . . . . . . . .76
1050 DIMM (optional) . . . . . . . . .78
1060 Keyboard . . . . . . . . . . .80
1070 DIMM (standard) . . . . . . . . .85
1080 Modem daughter card (MDC-2) . . . . .86
1090 Bluetooth/Modem daughter card (BMDC-3) 88
1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models) . . . . . . . . .90
1110 Keyboard bezel or Keyboard bezel with
fingerprint reader (15.0-in. LCD models) . . .93
1120 Mini PCI adapter . . . . . . . . .99
1130 Fan assembly . . . . . . . . . . 101
1140 Backup battery . . . . . . . . . 105
1150 Speaker assembly . . . . . . . . 107
1160 Keyboard bezel (14.1-in. LCD models) 109
1170 PC Card/ExpressCard slots (14.1-in. LCD
models) . . . . . . . . . . . . 111
1180 PC Card/ExpressCard slots (15.0-in. LCD
models) . . . . . . . . . . . .113
1190 LCD assembly (14.1-in. LCD models) . . .115
1200 LCD assembly (15.0-in. LCD models) . . . 120
1210 CPU . . . . . . . . . . . . 125
1220 Ultrabay Slim guide rail assembly (14.1-in.
LCD models) . . . . . . . . . . . 126
1230 Ultrabay Slim guide rail assembly (15.0-in.
LCD models) . . . . . . . . . . . 128
1240 VGA and Ultrabay Slim device eject button
cable . . . . . . . . . . . . . 131
1250 System board and base cover (14.1-in. LCD
models) . . . . . . . . . . . . 133
1260 System board, interposer card, and base
cover (15.0-in. LCD models) . . . . . . 140
2010 LCD front bezel (14.1-in. LCD models) 148
2020 LCD front bezel (15.0-in. LCD models) 150
2030 Inverter card (14.1-in. LCD models) . . . 152
2040 Inverter card (15.0-in. LCD models) . . . 154
2050 Wireless antenna assemblies, LCD panel,
LCD cable assembly, hinges, and LCD cover
(14.1-in. LCD models) . . . . . . . . 155
2060 Wireless antenna assemblies, LCD panel,
LCD cable assembly, hinges, and LCD cover
(15.0-in. LCD models) . . . . . . . . 169
3010 ThinkPad Dock II PCI cover . . . . . . 176
3020 ThinkPad Dock II top cover . . . . . . 177
Locations . . . . . . . . . . . . . . 180
Front view . . . . . . . . . . . . 180
