4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions” sections in
the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare the area
for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
 Press fixture
 Working table
 Screwdriver
 Knife
 Gloves
 Cleaning cloth
 ESD protection

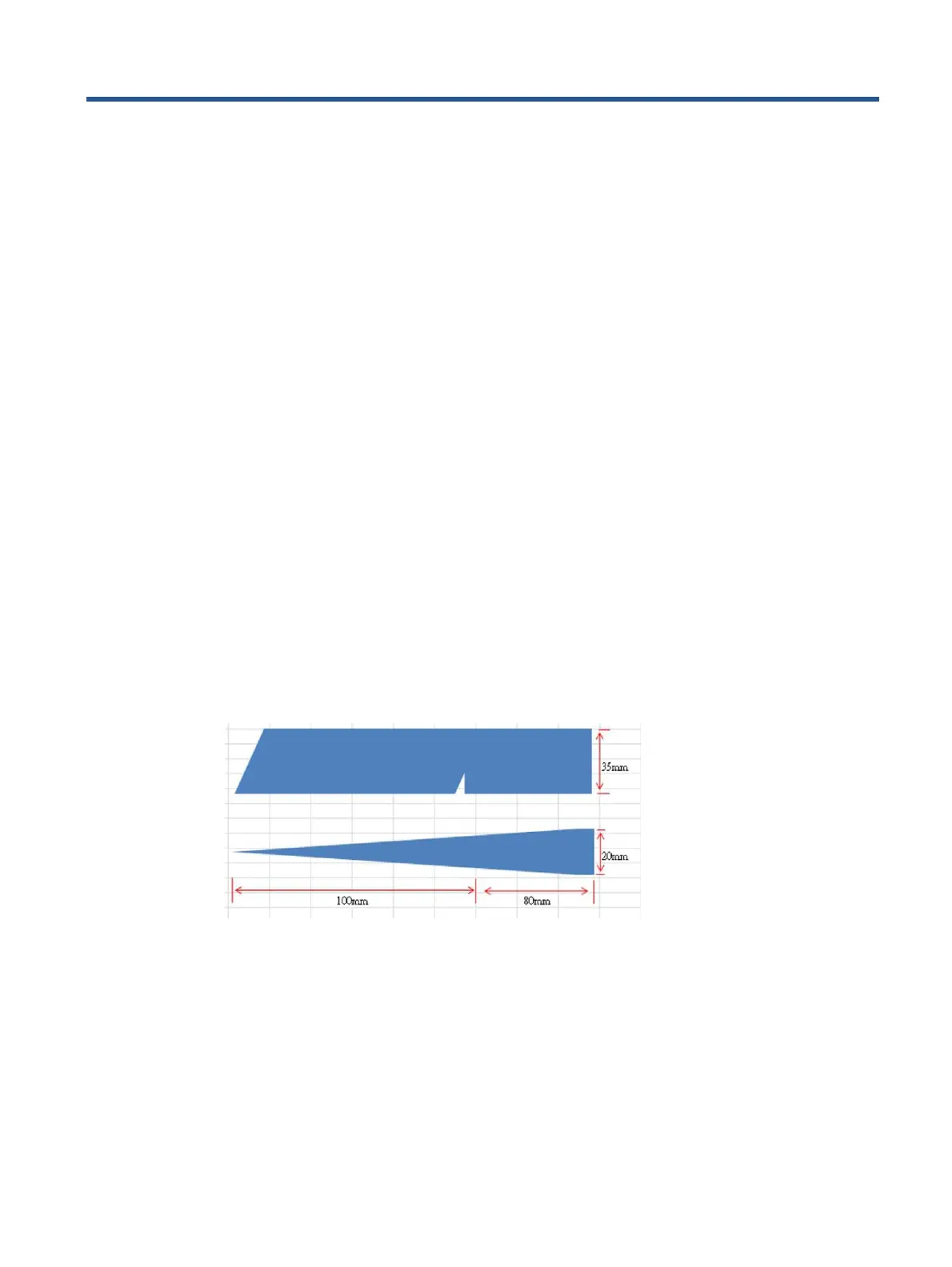

 Scraper bar in the following dimensions:
RC
Before removing the RC, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
1) Remove the RC: Use a proper tool to insert the bottom side of the rear cover,then wedge your fingers
between the front bezel and the panel for unlocking the rear cover outlet

HP Z32 Specifications

General

3D	No
Pixel pitch	0.18159 x 0.18159 mm
Screen shape	Flat
Response time	14 ms
Display diagonal	31.5 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	29 - 60 Hz
Horizontal scan range	28 - 135 kHz
Viewable size, vertical	392.2344 mm
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1300:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	697.3056 mm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2520 x 1520, 2560 x 1440
On/off switch	Yes
LED indicators	Power
Tilt angle range	-5 - 20 °
Number of OSD languages	10
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	3
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	185 W
Annual energy consumption	66 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR
Product color	Black
Country of origin	China
Market positioning	Business

Weight and Dimensions

Depth (with stand)	248 mm
Width (with stand)	714.5 mm
Height (with stand)	564.4 mm
Weight (with stand)	12160 g
Depth (without stand)	44.5 mm
Height (without stand)	410.9 mm
Weight (without stand)	7590 g
