HP Z32 User Manual

20

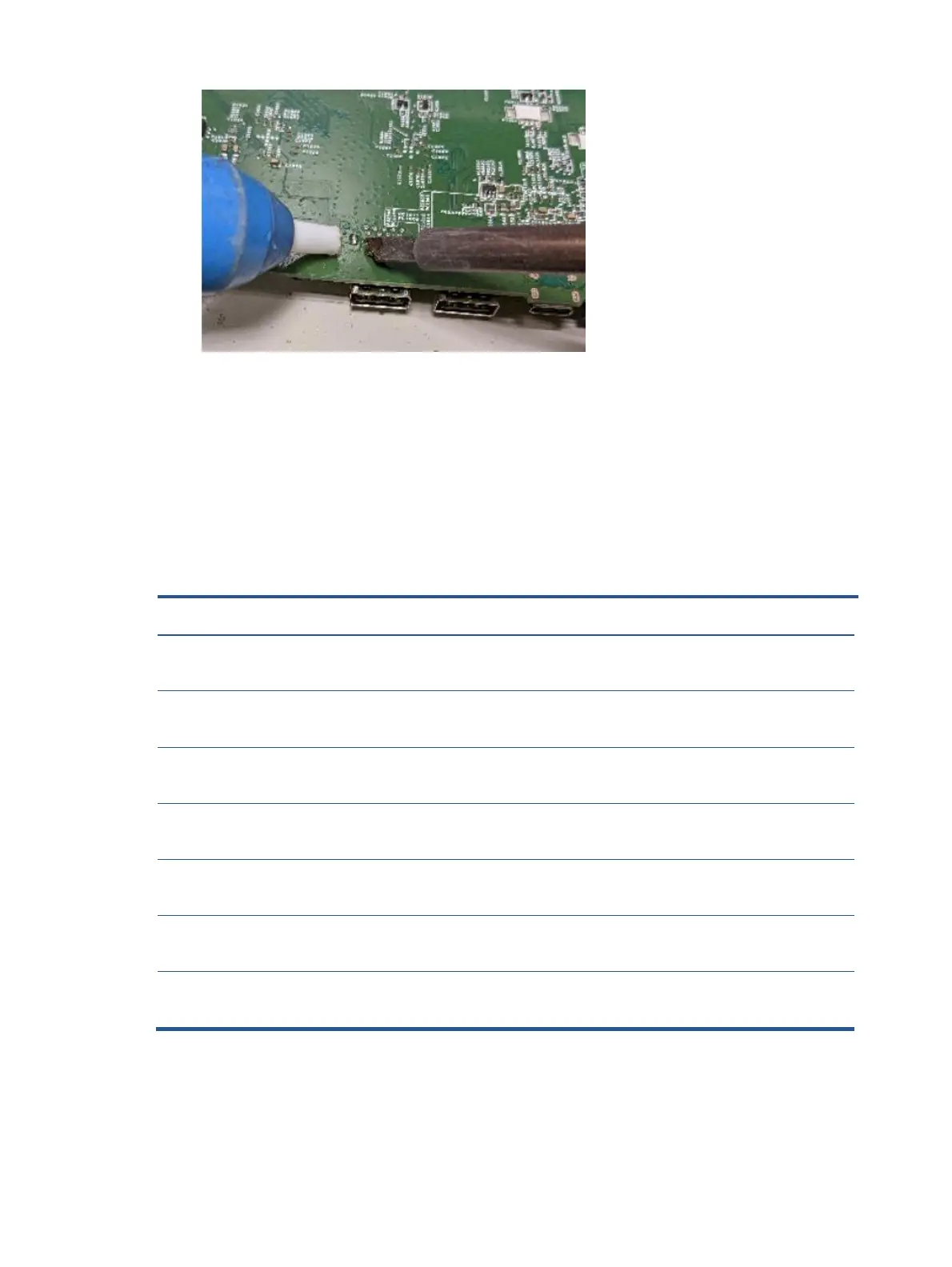

2) Lift the USB-A connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
Function test
After repair, be sure to confirm that all functions are working
Support and troubleshooting
The following table lists possible problems, the possible cause or each problem, and the recommended
solutions.
Table 4-1: Function test
Test item
Operating description
Tool used
HDMI test
Confirm whether image displays and sound plays
correctly on the monitor.
Computer or DVD player
Mini DP test
Confirm whether image displays and sound plays
correctly on the monitor.
Computer or DVD player
DP test
Confirm whether image displays and sound plays
correctly on the monitor.
Computer or DVD player
USB-C Alt-Mode
Confirm whether image displays and sound plays
correctly on the monitor.
Computer or Notebook
USB-C PD
Function
Confirm PDO/Charging working normally.
Notebook
USB Hub Test
Confirm USB function of 3-USB Type-A and 1-USB
Type-C working normally.
Computer or Notebook
Audio test
Change volume and balance to confirm whether
volume is smooth and loud enough.
Sound bar or Earphone

HP Z32 Specifications

General

3D	No
Pixel pitch	0.18159 x 0.18159 mm
Screen shape	Flat
Response time	14 ms
Display diagonal	31.5 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	29 - 60 Hz
Horizontal scan range	28 - 135 kHz
Viewable size, vertical	392.2344 mm
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1300:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	697.3056 mm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2520 x 1520, 2560 x 1440
On/off switch	Yes
LED indicators	Power
Tilt angle range	-5 - 20 °
Number of OSD languages	10
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	3
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	185 W
Annual energy consumption	66 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	70 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Gold, ENERGY STAR
Product color	Black
Country of origin	China
Market positioning	Business

Weight and Dimensions

Depth (with stand)	248 mm
Width (with stand)	714.5 mm
Height (with stand)	564.4 mm
Weight (with stand)	12160 g
Depth (without stand)	44.5 mm
Height (without stand)	410.9 mm
Weight (without stand)	7590 g
