2) Lift the CN1201 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
USB 3.0A 1/2/3 connector CN1002/CN1102/CN1104
Repair the USB 3.0A 1/2/3 connector:

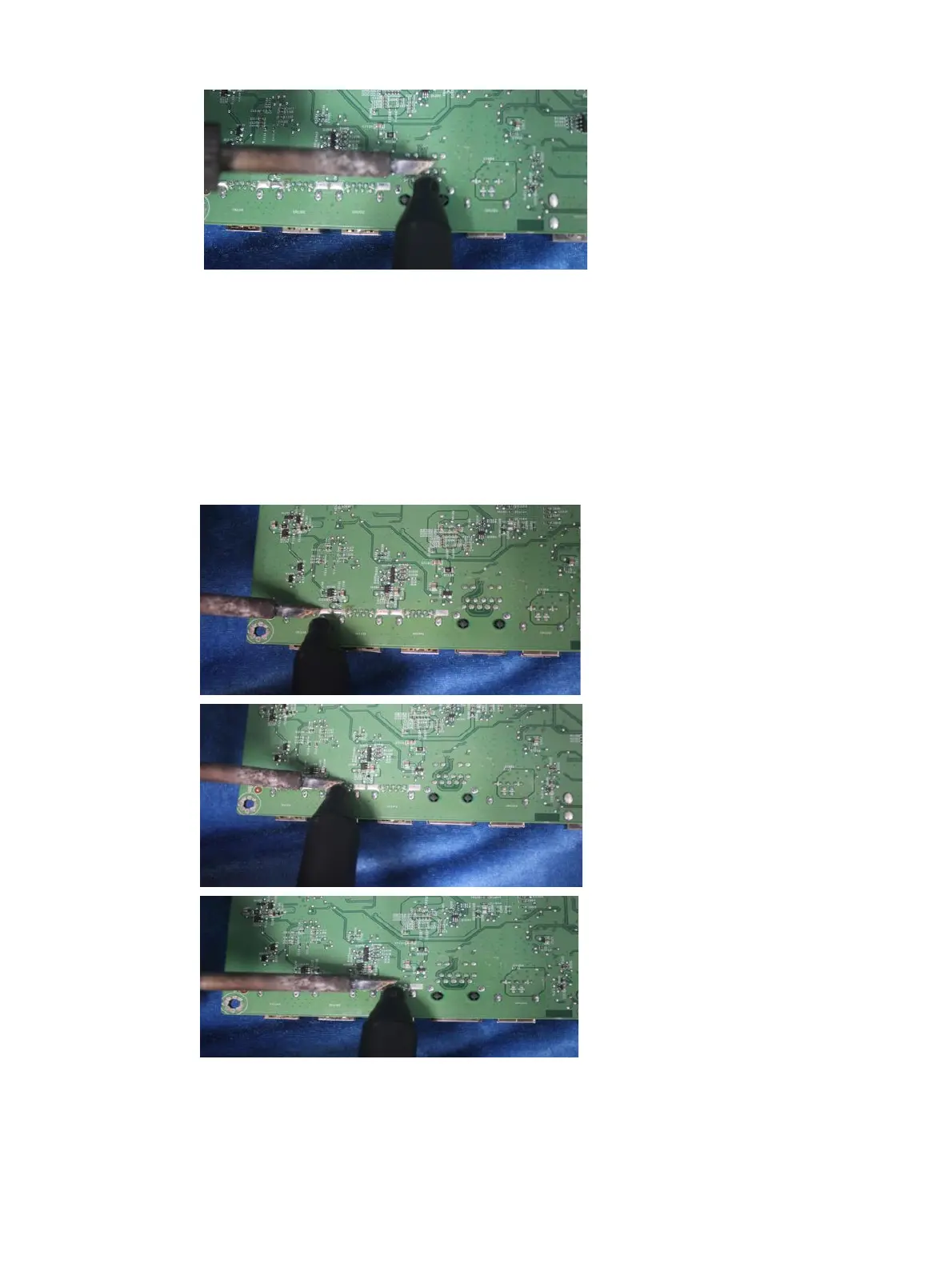

1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN1002/CN1102/CN1104 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.

HP Z32k G3 Specifications

General

Color depth	10 bit
Pixel pitch	0.18 x 0.18 mm
Screen shape	Flat
Pixel density	140 ppi
Backlight type	Edge LED
Display diagonal	31.5 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	29 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 135 kHz
sRGB coverage (typical)	100 %
Display bezel technology	Micro-Edge
Display number of colors	1.07 billion colors
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
Pivot angle	-90 - 90 °
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR, RUS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	180 W
Power consumption (standby)	0.5 W
Power consumption (typical)	35 W
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, DisplayPort, HDMI, Thunderbolt, USB Type-A to USB Type-B
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
USB upstream port type	USB Type-B, USB Type-C
USB Power Delivery up to	100 W
USB Type-A downstream ports quantity	4
Sustainability certificates	ENERGY STAR
HP segment	Business
Package depth	185 mm
Package width	816 mm
Package height	504 mm
Package weight	13700 g
Product color	Black, Silver

Weight and Dimensions

Depth (with stand)	217 mm
Width (with stand)	713.5 mm
Height (with stand)	604.9 mm
Weight (with stand)	9000 g
Depth (without stand)	47 mm
Height (without stand)	415.9 mm
