Technical white paper | HP Z840 Workstation
HP Z840 supported CPU line-up
Table 2.
Model Segment
Clock
speed
(GHz) Cores Cache (MB)
Memory
speed (MHz)
QPI speed
(CT/s)
Hyper-
Threading vPro
Turbo Boost
Technology
Turbo Boost
Steps (min/max) TDP (W)
E5-2699 v3 Seg. Opt 2.3 18 45 2133 9.6 Yes Yes Yes 5/13 145
E5-2697 v3 Seg. Opt 2.6 14 35 2133 9.6 Yes Yes Yes 5/10 145
E5-2695 v3 Seg. Opt 2.3 14 35 2133 9.6 Yes Yes Yes 5/10 120
E5-2687W v3 Workstation 3.1 10 25 2133 8.0 Yes Yes Yes 1/4 160
E5-2690 v3 Advanced 2.6 12 30 2133 9.6 Yes Yes Yes 5/9 135
E5-2667 v3 Seg. Opt 3.2 8 20 2133 9.6 Yes Yes Yes 2/4 135
E5-2683 v3 Seg. Opt 2.0 14 35 2133 9.6 Yes Yes Yes 5/10 120
E5-2680 v3 Advanced 2.5 12 30 2133 9.6 Yes Yes Yes 4/8 120
E5-2670 v3 Advanced 2.3 12 30 2133 9.6 Yes Yes Yes 3/8 120
E5-2643 v3 Seg. Opt 3.4 6 20 2133 9.6 Yes Yes Yes 2/3 135
E5-2660 v3 Advanced 2.6 10 25 2133 9.6 Yes Yes Yes 3/7 105
E5-2650 v3 Advanced 2.3 10 25 2133 9.6 Yes Yes Yes 3/7 105
E5-2637 v3 Seg. Opt 3.5 4 15 2133 9.6 Yes Yes Yes 1/2 135
E5-2640 v3 Standard 2.6 8 20 1866 8.0 Yes Yes Yes 2/8 90
E5-2630 v3 Standard 2.4 8 20 1866 8.0 Yes Yes Yes 2/8 85
E5-2623 v3 Seg. Opt 3.0 4 10 1866 8.0 Yes Yes Yes 3/5 105
E5-2620 v3 Standard 2.4 6 15 1866 8.0 Yes Yes Yes 2/8 85
E5-2609 v3 Basic 1.9 6 15 1600 6.4 No Yes No - 85
E5-2603 v3 Basic 1.6 6 15 1600 6.4 No Yes No - 85

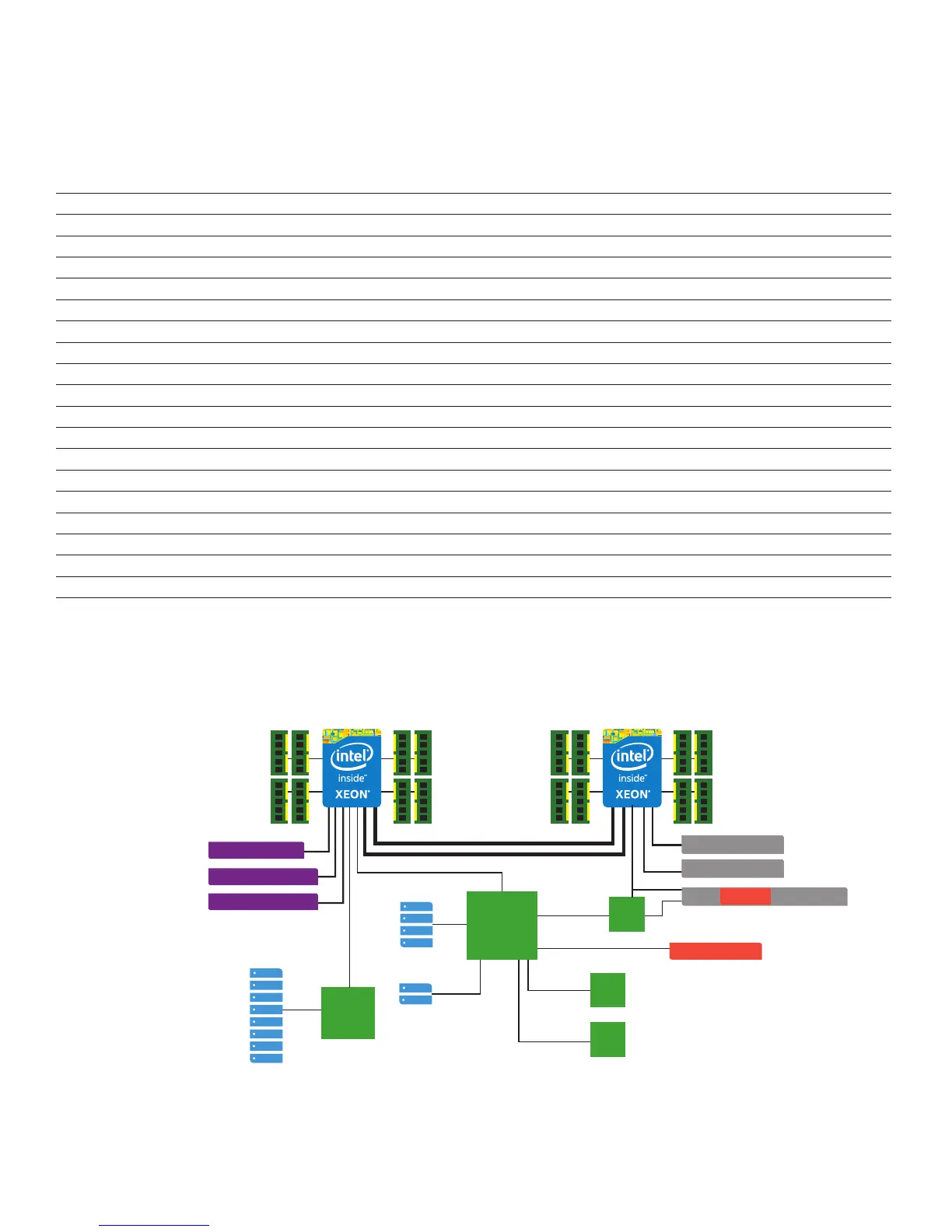

HP Z840 Block Diagram
Figure 1.
sSATA
SATA
Slot 1: PCIe3 x4
Slot 2: PCIe3 x16
Slot 6: PCIe3 x16
Slot 4: PCIe3 x16
Slot 3: PCIe3 x8
Slot 5: PCIe2 x4 /PCIe3 x8
Slot 7: PCIe2 x1
x4
MUX
Intel
LAN
Intel
LAN
Intel
C612
LSI
SAS
SAS
PCIe2 x4
PCIe3 x4
x4
x4
