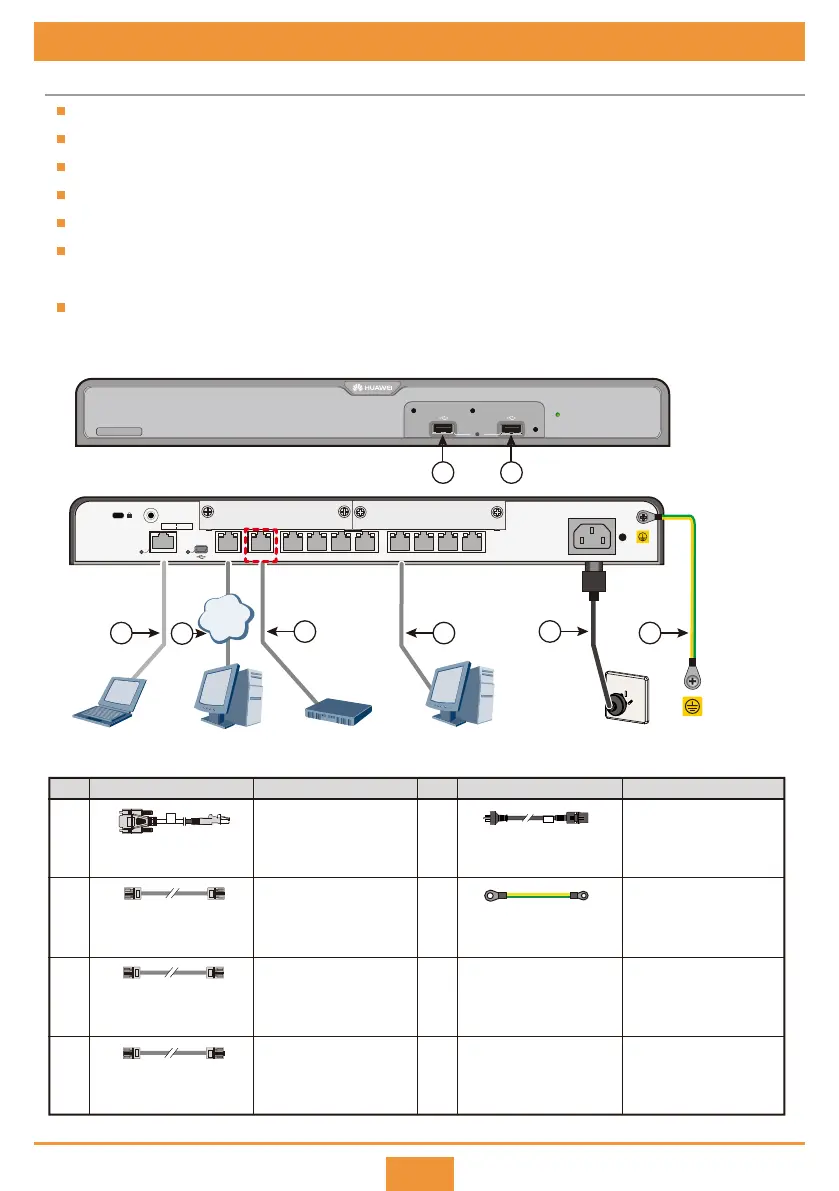

7 Connecting Cables
Power cables must be more than 10 cm away from signal cables.
Optical fibers must be used with optical modules.
The bend radius of optical fibers must be larger than 40 mm.
For the ground cable, attach the M4 lug to the router and the M6 lug to the ground point.
If your router uses AC power supply, use AC power cables in compliance with local standards.
If your router uses DC power supply, ensure that the positive and negative cables are connected to the positive
and negative poles correctly.
Antennas need to be installed for routers that provide the Wi-Fi or LTE/3G functions.
Before You Start
ACT
RST
SYS WAN
7 7
No.
1 5
2
3
4
6
7
Item Connect To No. Item Connect To
Ground cable
AC power cable
Ethernet cable
Ethernet cable
USB port
Console cable
Protection ground
External power source
Switch or PC
Upstream network device
Operation terminal
(usually a PC)
USB flash drive
Ethernet cable
Operation terminal
(usually a PC)
~100-240V;50/60Hz;2A
FE0 FE1 FE2 FE3 FE4 FE5 FE6 FE7
GE0 GE1
CON/AUX
EN EN
2 1
management
1
3
MGMT
network
2
4
5
6
To Next Page
