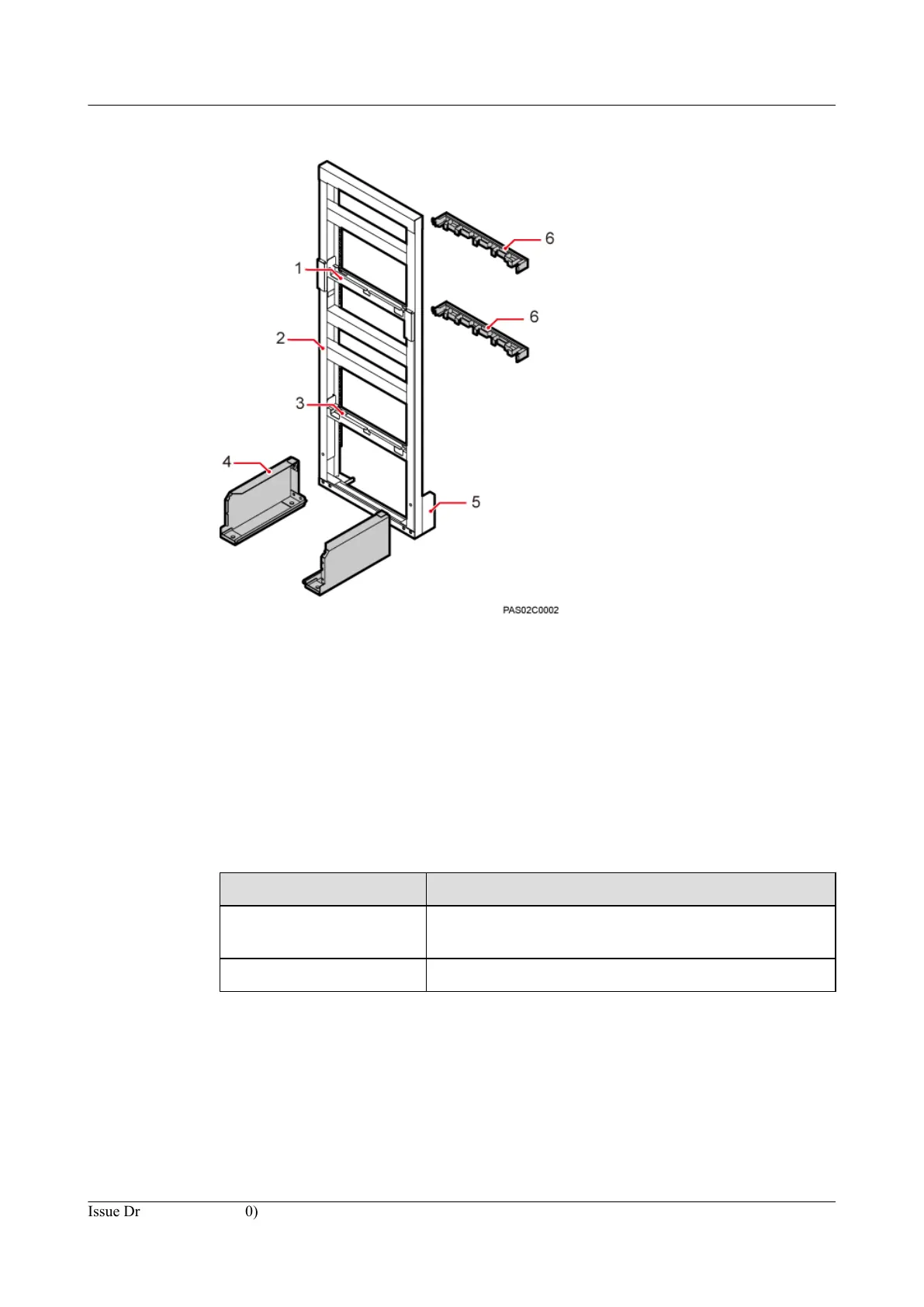

Figure 4-2 IFS06 structure
(1) Upper adjustable beam (2) Main frame (3) Lower adjustable beam
(4) Front foot (5) Rear foot (6) Cable tray
Specifications
Table 4-1 describes IFS06 specifications.
Table 4-1 IFS06 specifications
Item
Specification
Dimensions 1730 mm (79 in.) x 600 mm (23.62 in.) x 600 mm (23.62 in.)
(H x W x D)
Weight 45 kg (99.23 lb)
4.2 OCB
An Outdoor Cable Conversion Box (OCB) interconnects cables of different core diameters.
Power cables shipped with RRUs cannot support long-distance power supply. Therefore, when
power supply is far from the equipment, cables with large core diameters are used, and an OCB
connects these cables and RRU power cables.
DBS3900
RRU3252/RRU3256 Hardware Description 4 RRU Auxiliary Devices
