Huawei E5172 User Manual

7
UK

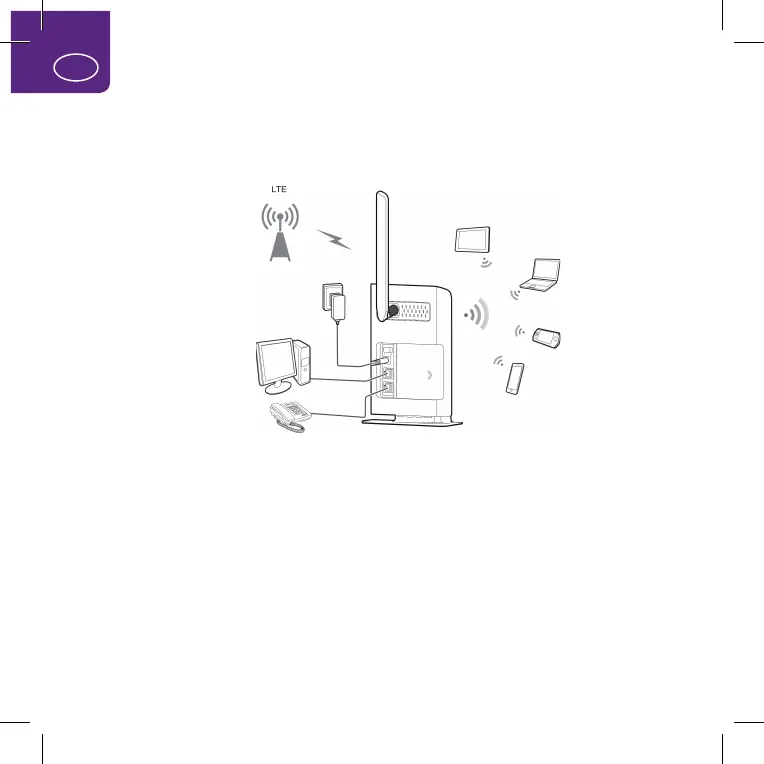

Cable Connection
When connecting, use the power adapter that came as a set with the product. When
finished, press the power button to turn on the device.
The connection cable illustration is for reference only.
When the device is in use, you can alter its position or orientation to improve signal
reception. If the device is in use, you may change its location or position to achieve
better signal strength and speed. For better coverage, place the 4G router as close
to window as possible or move your device closer to the router for improved speed.
If several users are connected simultaneously, the speed may be reduced. Wait
until fewer users are connected before downloading large files.T
he signal strength
light indicates the received signal strength.
Logging In to the Web Management Page
The web-based configuration utility can be used for initial device installation,
parameter configuration, and function management through the browser.
The Windows XP operating system and Internet Explorer 7.0 are used as an
example. Ensure that the device is connected to the computer. Follow these steps
to log in to the web management page:

Huawei E5172 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	1
DHCP client	-
Security algorithms	WEP, WPA, WPA2
4G standard	LTE
2G standards	EDGE, GPRS, GSM
3G standards	HSDPA, HSPA+, HSUPA

Weight and Dimensions

Depth	32 mm
Width	173 mm
Height	124 mm
Weight	500 g
