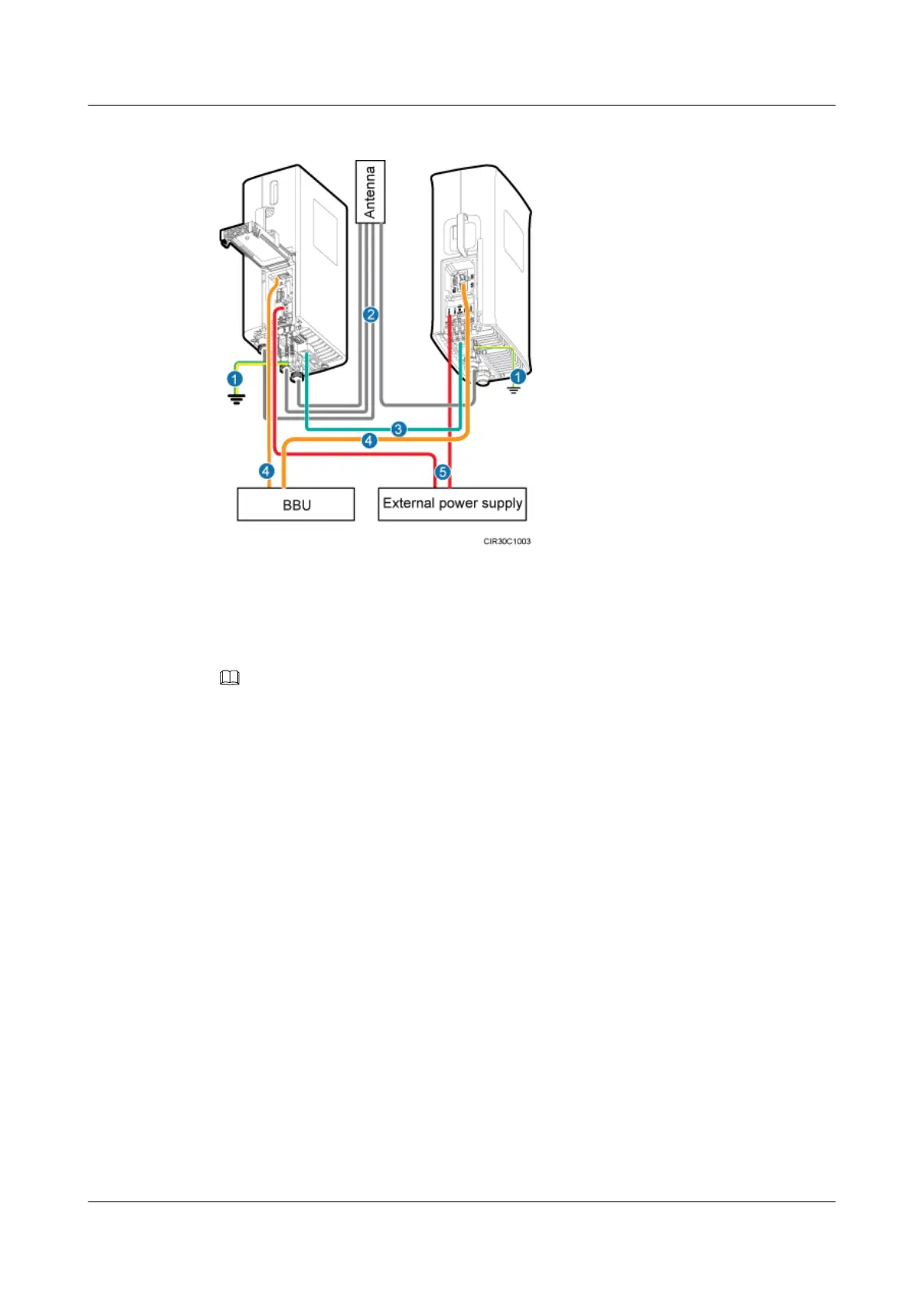

Figure 8-12 Inter-RRU cable connections
(1) PGND cable (2) RRU RF jumper (3) Inter-RRU RF cable
(4) CPRI fiber optic cable (5) RRU power cable -
NOTE
l An RRU3942 can be interconnected with an RRU3804 or RRU3801E in the same sector using RX_IN/
OUT ports.
l When an RRU3942 is interconnected with an RRU3804 or RRU3801E, the ANT_TX/RXA port on
the RRU3942 and the ANT_TX/RXA port on the RRU3804 or RRU3801E must be connected to the
same antenna.
l When an RRU3942 is interconnected with an RRU3804 or RRU3801E, the ANT_RXC port on the
RRU3942 and the ANT_RXB port on the RRU3804 or RRU3801E do not need to be connected to an
antenna.
8.3 Installation Process
This section describes the process of installing RRU cables.
Figure 8-13 shows the process of installing RRU cables.
RRU3942&RRU3642
Installation Guide
8 Installing RRU Cables
Issue 07 (2013-12-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
94
