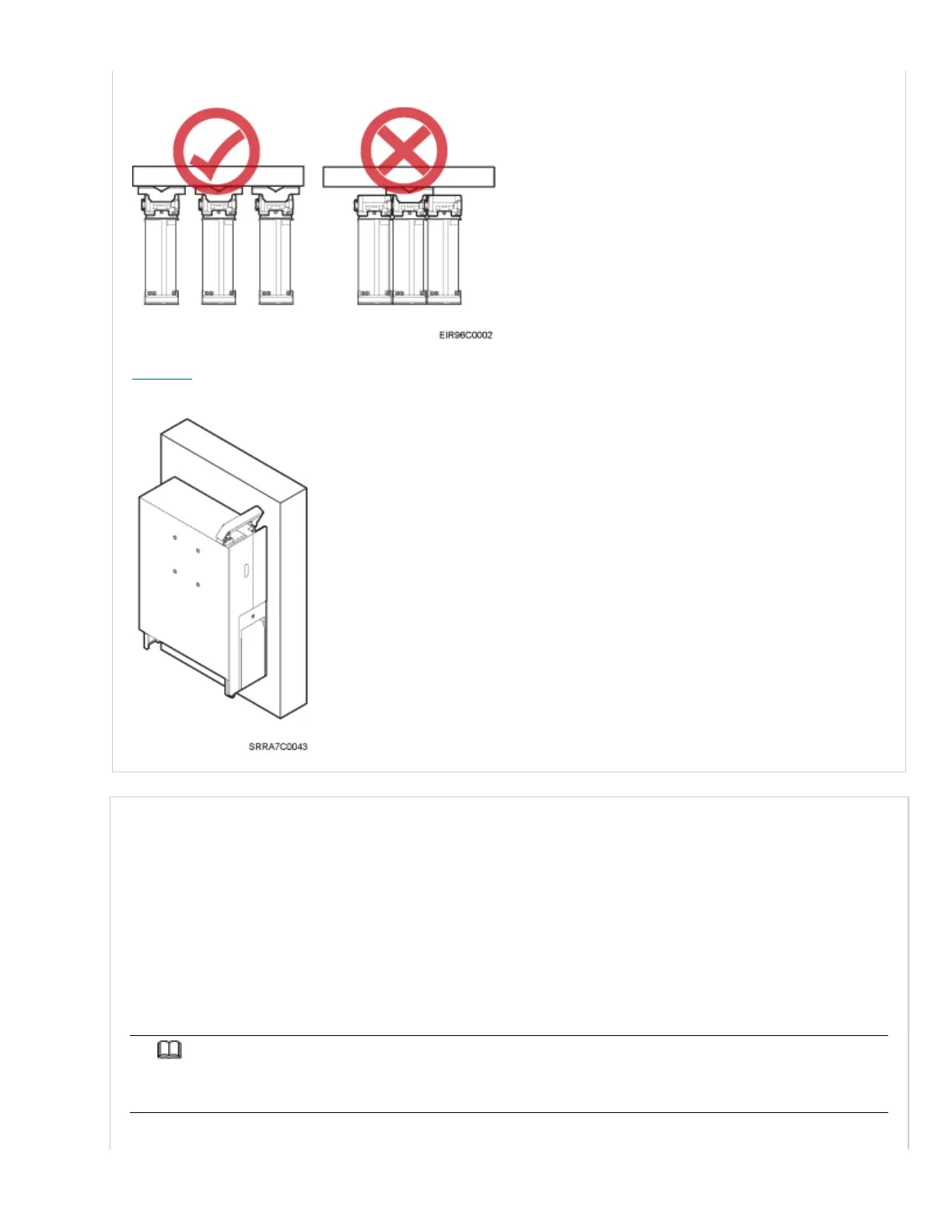

Figure 13 Correct installation of RRUs installed on a wall in side-mounted mode
Figure 14 shows an RRU installed on a wall.
Figure 14 RRU installed on a wall
Installing an RRU on an IFS06
• The upper and lower adjustable beams on an IFS06 can be moved up and down to fit for heights
of RRUs.
• The IFS06 supports at least three RRUs when the ambient temperature is higher than or equal to
the lowest operating temperature of the RRUs and at least 5°C (41°F) lower than the highest
operating temperature of the RRUs. The IFS06 supports a maximum of six RRUs when the
ambient temperature is higher than or equal to the lowest operating temperature of the RRUs and
at least 10°C (50°F) lower than the highest operating temperature of the RRUs.
NOTE:
For details about the operating temperature of the RRUs, see section "Technical Specifications of RRUs" in Base
Station Technical Description.
