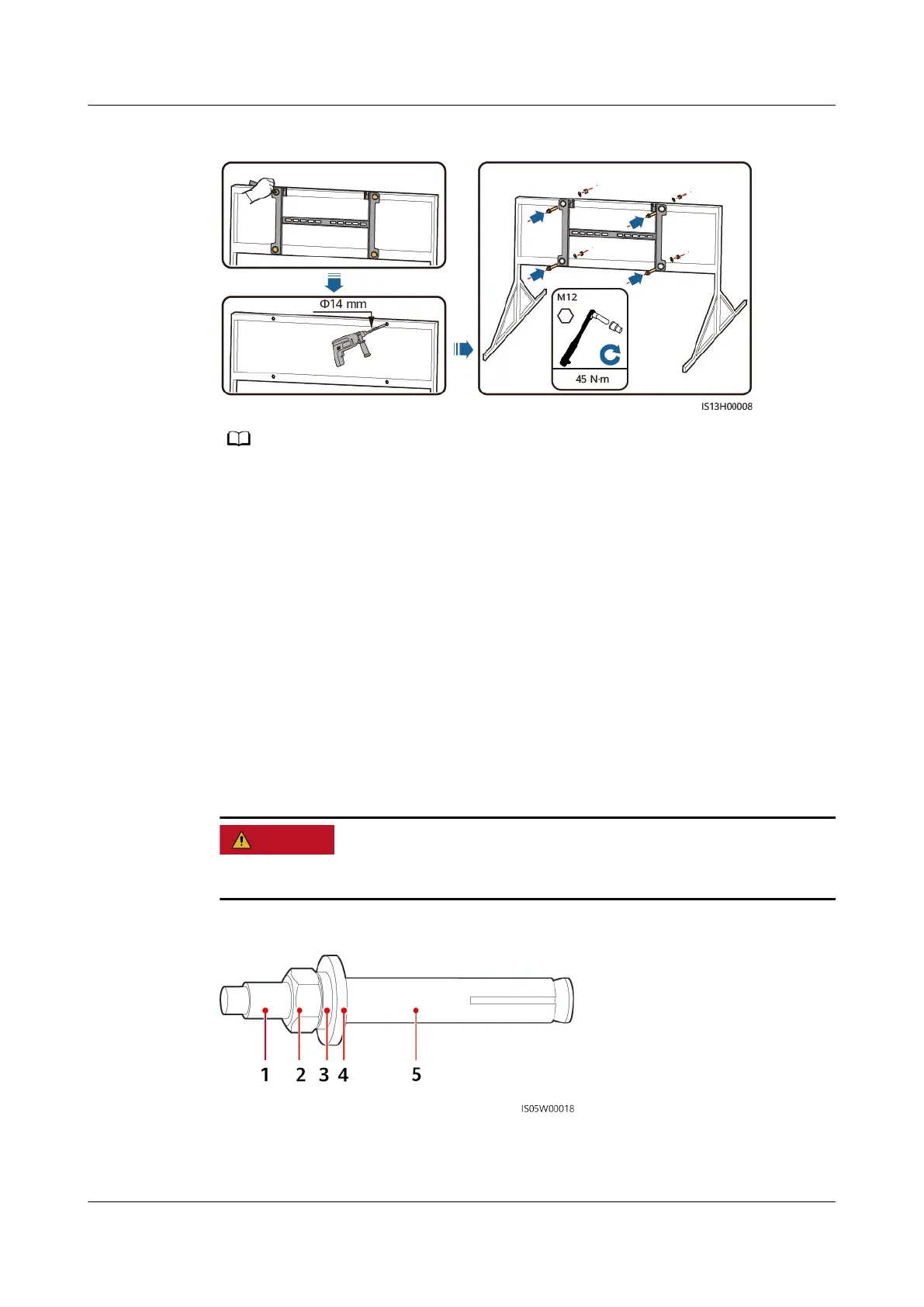

Figure 4-11 Securing the mounting bracket
You are advised to apply anti-rust paint on the hole positions for protection.
----End
4.5.2 Wall Mounting
Prerequisites
You have prepared expansion bolts. M12x60 stainless steel expansion bolts are
recommended.
Procedure
Step 1 Determine the hole positions and mark them using a marker.
Step 2 Secure the mounting bracket.
Avoid drilling holes into the water pipes or power cables buried in the wall.
Figure 4-12 Expansion bolt structure
(1) Bolt
(2) Nut (3) Spring washer
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 4 Installation
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 33
