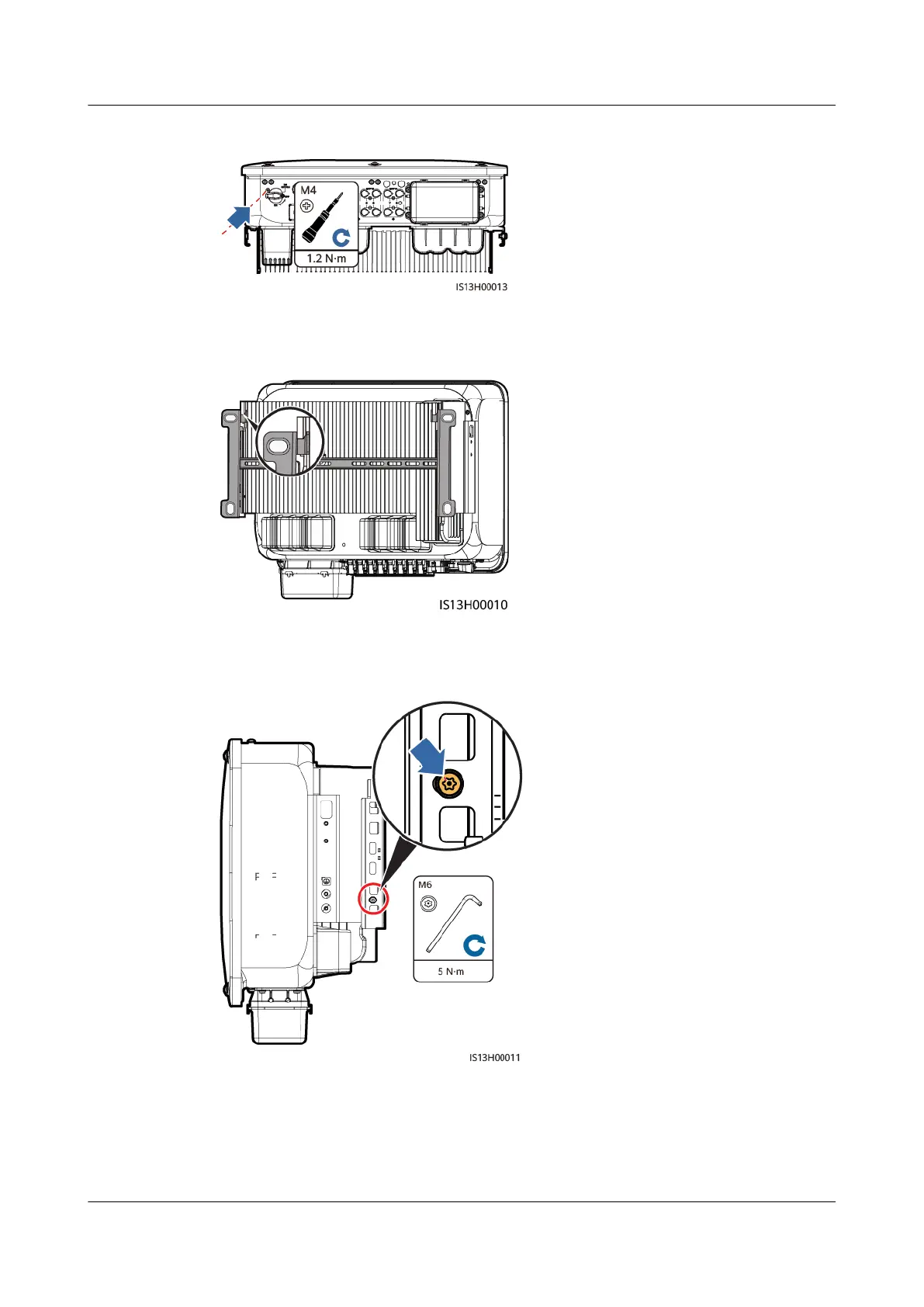

Figure 4-14 Installing the DC switch locking screw
Step 2 Install the inverter on the mounting bracket.
Figure 4-15 Installing the inverter
Step 3 Tighten the screws on both sides of the inverter.
Figure 4-16 Tightening the screws
SUN2000-(20KTL, 29.9KTL, 30KTL, 36KTL, 40KTL)-
M3
User Manual 4 Installation
Issue 18 (2024-03-10) Copyright © Huawei Technologies Co., Ltd. 35
