14
A
C
B
D
Battery Storage and Disposal
The drive battery should be charged when
depleted, or if not used regularly, once a
month. Failure to charge the battery as
directed will cause permanent damage to the
battery and will void the warranty.
Follow these guidelines if the battery is
removed:
• Do not store battery in extreme hot or cold
temperatures.
• Wipe the battery clean with a dry cloth
prior to storage. Wash cloth separate from
other clothes.
BATTERY DISPOSAL:
• The sealed lead-acid battery must be re-
cycled or disposed of in an environmentally
sound manner.
• Do not dispose of battery in a re. The bat-
tery may explode or leak acid.
• Do not dispose of the battery in house-
hold trash. The incineration, land lling or
mixing of sealed lead-acid batteries with
household trash is prohibited by law.
• Return an exhausted battery to a federal or
state approved lead-acid battery recycler,
such as a local seller of automotive bat-
teries (check local battery disposal regula-
tions).
Maintenance

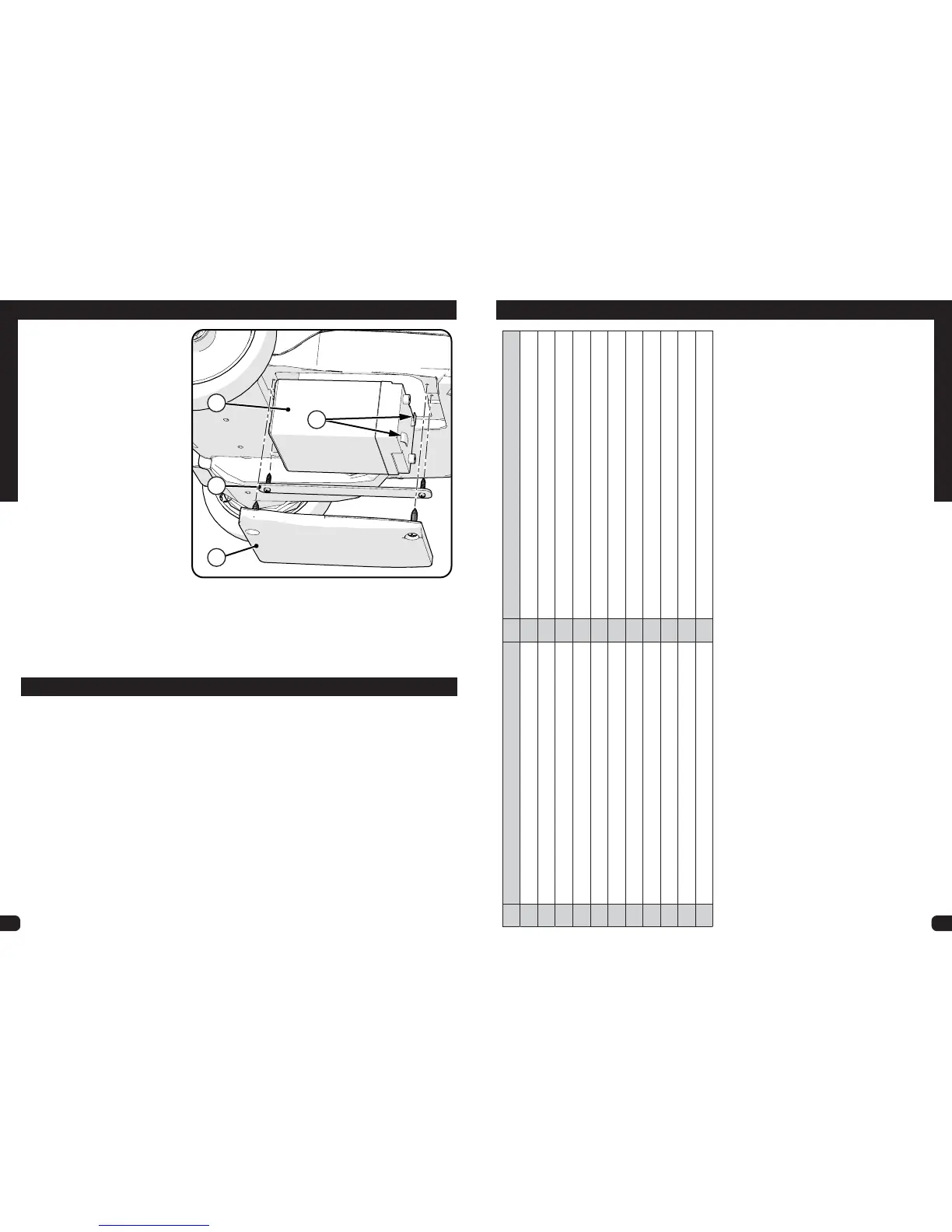

Drive Battery Replacement:
STEPS:
1. Turn Scooter on it’s Side.
2. Remove the Battery Cover
and Screws
B
.
3. Remove the Battery Bracket
and Screws
C
.
4. Disconnect the Red and Black
Battery Terminals
D
.
5. Carefully remove the Battery.
• Depending on the condition
of the battery (leakage or
damage) you may want to
wear protective rubber gloves
before removal.
• Do not lift the battery by its
connectors or cables.
6. Place the dead battery in a
plastic bag.
7. Install replacement battery
and reconnect the connectors: Red to Red Terminal, Black to Black Terminal.
8. Replace the battery bracket
C
.
9. Replace the Battery Cover
B
.
NOTE: The Thermal Fuse is attached to the red power wire and resets if Battery is over-
loaded.
7
Parts List
Parts List
# Description # Description
1 Grips (x2) 11 Battery
2 Handlebar Assembly 12 Battery Brace
3 Head Cover w/Screws 13 Battery Cover w/Screws
4 Handlebar Clamp w/Hardware 14 Locknut (x2)
5 Head Set bushings 15 Washer (x2)
6 Axle Threaded Screw Set 16 Right Rear Wheel (non-drive)
7 Fork Threaded Screw Set 17 Left Drive Wheel
8 Fork 18 Rear Axle
9 Fender 19 Body/Frame Assembly
10 Front Wheel • with motor and Bubble blower
20 Charger
